9-12
157569-1CD
HW0485652
MPL100
9 Maintenance and Inspection
9.3 Notes on Grease Replenishment/Exchange Procedures
9.3.2 Grease Replenishment/Exchange for L-Axis Speed Reducer

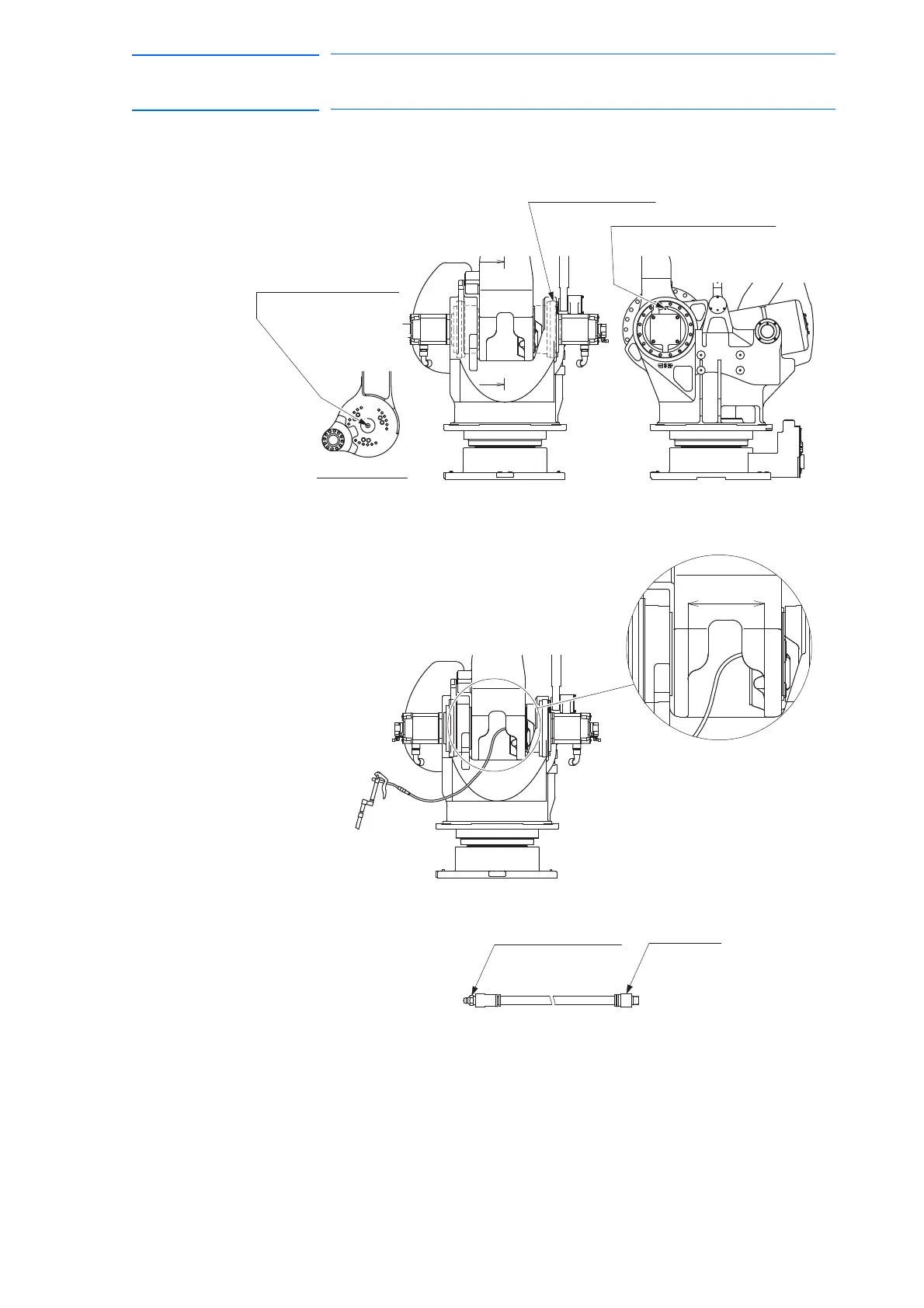

Fig. 9-5(a): L-Axis Speed Reducer Diagram
Fig. 9-5(b): L-Axis Grease Replenishment
Grease inlet
Hexagon socket head plug
Section A-A’
L-axis speed reducer
Grease exhaust port
Hexagon socket head plug
A
A
225 mm
Grease zerk A-PT1/8
Joint PT1/8
Hose for grease replenishment
77 of 106
