2.5 Communications with a Touch Panel
Using Automatic Reception with the MP3000 as a Slave
2-96

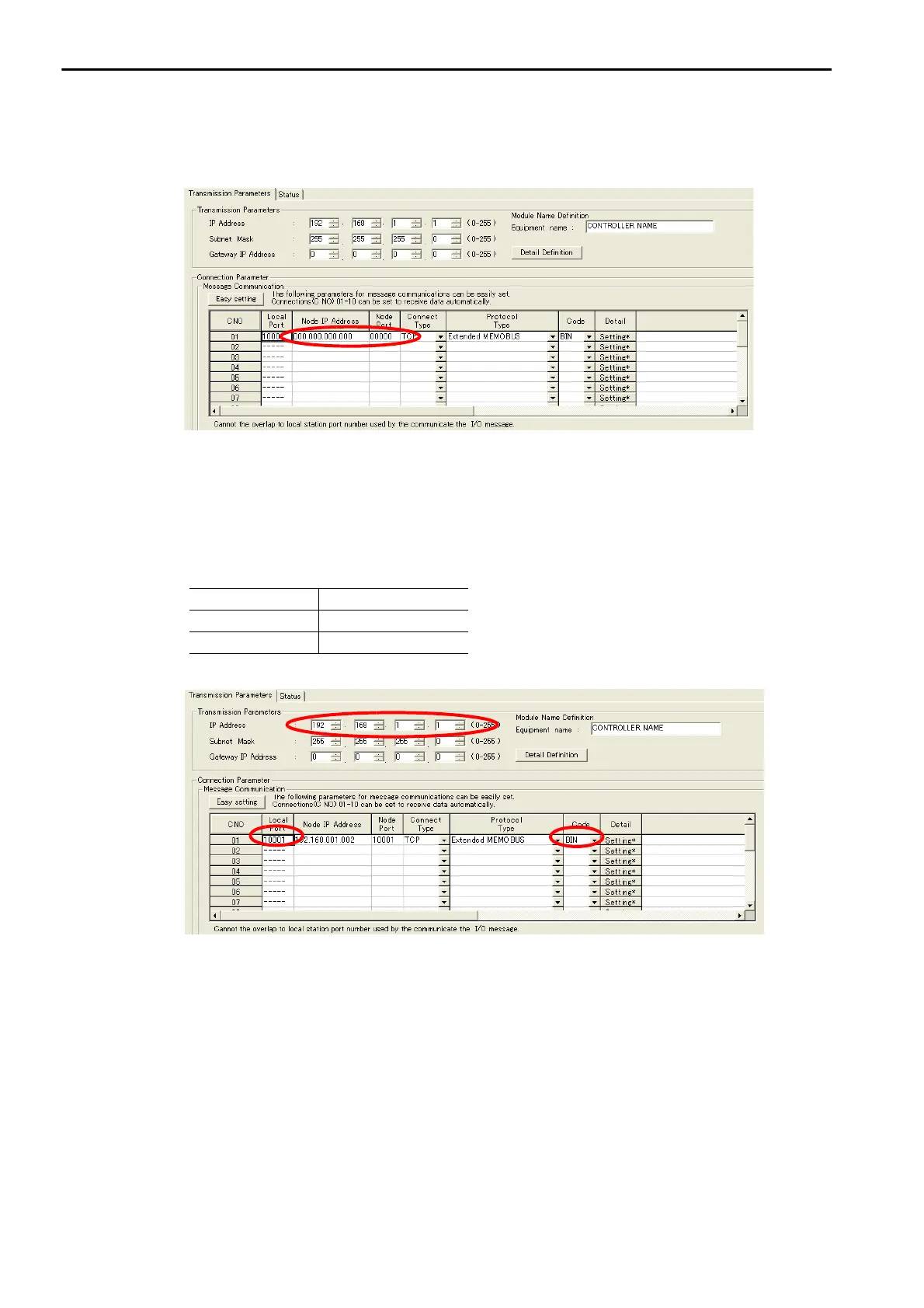

• Setting the MP3000 to Unpassive Open Mode
If the remote station’s address is set to 000.000.000.000 and the remote station’s port number is set to 0,
the connection is set to the Unpassive Open Mode.
8. Click the Settings Button for PLC1 in the Device-Specific Settings Area to display the Individual
Device Settings Dialog Box.
9. Specify the device or PLC connected.
The Individual Device Settings Dialog Box is used to specify the MP3000-series Controller to connect to.
Set the IP address, port number, and data code to the same values set in the 218IFD Detail Definition Dia-
log Box for the MP3000.
• 218IFD Detail Definition Dialog Box
Note: 1. Specify an IP address that is not in use by any other device on the same network.
2. The IP address for the MP3000 will be automatically set to 192.168.1.1.
Check with your network administrator for unused IP addresses.
3. Place the GP3000-series Touch Panel in offline mode when setting the IP address.
Contact Digital Electronics Corporation for further information.
This concludes the setup for the touch panel.
Create a screen and transfer the project to the touch panel as necessary.
IP Address 192.168.001.001
Port Number 10001
Data Code BINARY
To Next Page
