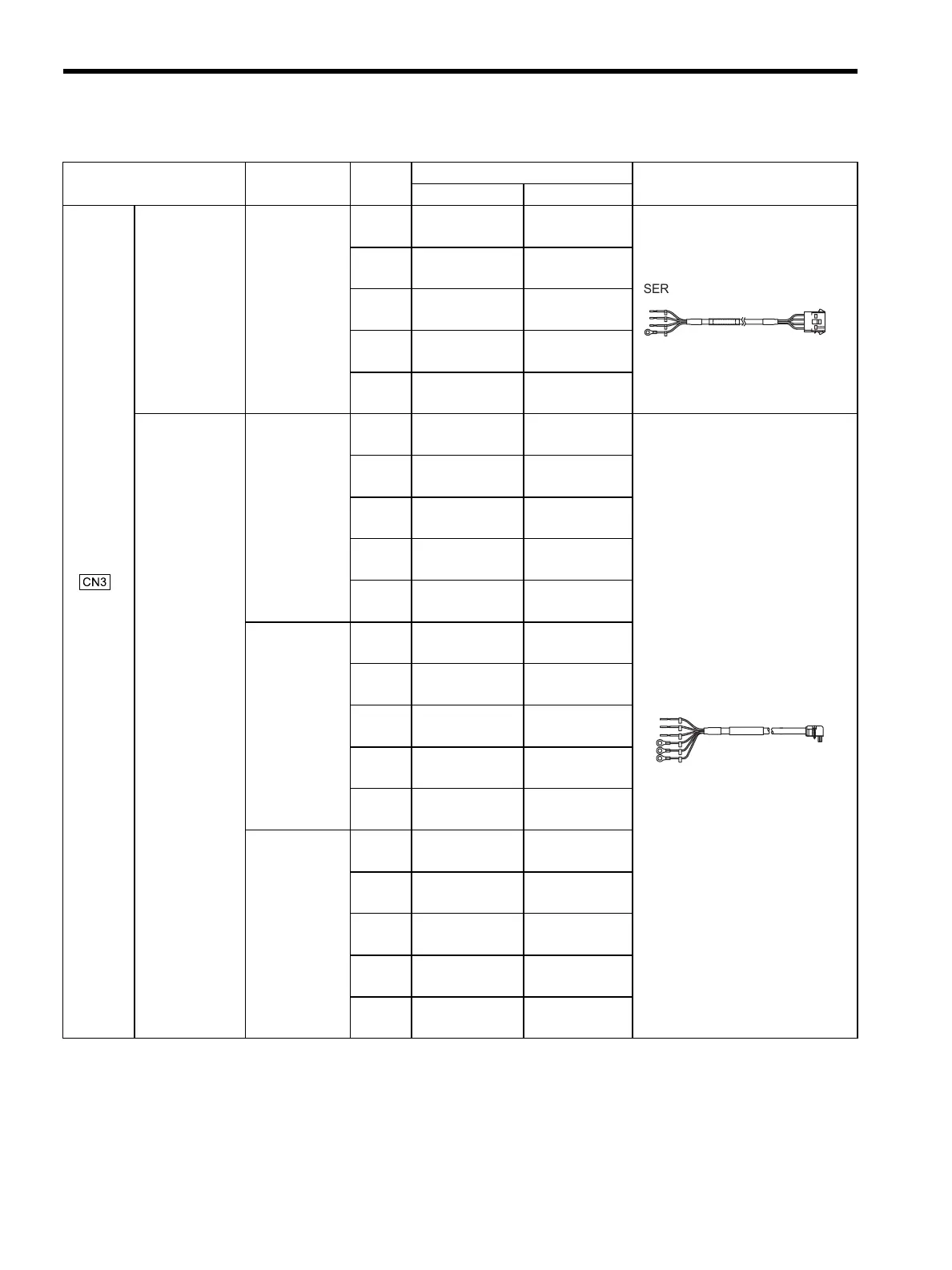

2 Selections
2.4.1 Cables for SGMAS and SGMPS Servomotor
2-12
d
Servo-
motor
Main Cir-
cuit Ca-
bles
(Cont.)
Without brakes
(Cont.)
SGMPS
1.5 kW
3 m
(9.84 ft)
JZSP-CMM20-03
−
5 m
(16.4 ft)
JZSP-CMM20-05
−
10 m
(32.8 ft)
JZSP-CMM20-10
−
15 m
(49.2 ft)
JZSP-CMM20-15
−
20 m
(65.5 ft)
JZSP-CMM20-20
−
With brakes
SGMAS
50 to 150 W,
SGMPS
100 W
3 m
(9.84 ft)
JZSP-CSM11-03 JZSP-CSM31-03
5 m
(16.4 ft)
JZSP-CSM11-05 JZSP-CSM31-05
10 m
(32.8 ft)
JZSP-CSM11-10 JZSP-CSM31-10
15 m
(49.2 ft)
JZSP-CSM11-15 JZSP-CSM31-15
20 m
(65.5 ft)
JZSP-CSM11-20 JZSP-CSM31-20
SGMAS
200 to 600 W,
SGMPS
200 to 400 W
3 m
(9.84 ft)
JZSP-CSM12-03 JZSP-CSM32-03
5 m
(16.4 ft)
JZSP-CSM12-05 JZSP-CSM32-05
10 m
(32.8 ft)
JZSP-CSM12-10 JZSP-CSM32-10
15 m
(49.2 ft)
JZSP-CSM12-15 JZSP-CSM32-15
20 m
(65.5 ft)
JZSP-CSM12-20 JZSP-CSM32-20
SGMAS
750 W, 1.15
kW
3 m
(9.84 ft)
JZSP-CSM13-03 JZSP-CSM33-03
5 m
(16.4 ft)
JZSP-CSM13-05 JZSP-CSM33-05
10 m
(32.8 ft)
JZSP-CSM13-10 JZSP-CSM33-10
15 m
(49.2 ft)
JZSP-CSM13-15 JZSP-CSM33-15
20 m
(65.5 ft)
JZSP-CSM13-20 JZSP-CSM33-20
* Use flexible cables for movable sections such as robot arms. Refer to 5.6 Flexible Cables.
(cont’d)
Name Servomotor
Model
Length Type Specifications
Standard Type Flexible Type *
CN3
SERVOPACK
end
Servomotor end
SERVOPACK end Servomotor end
