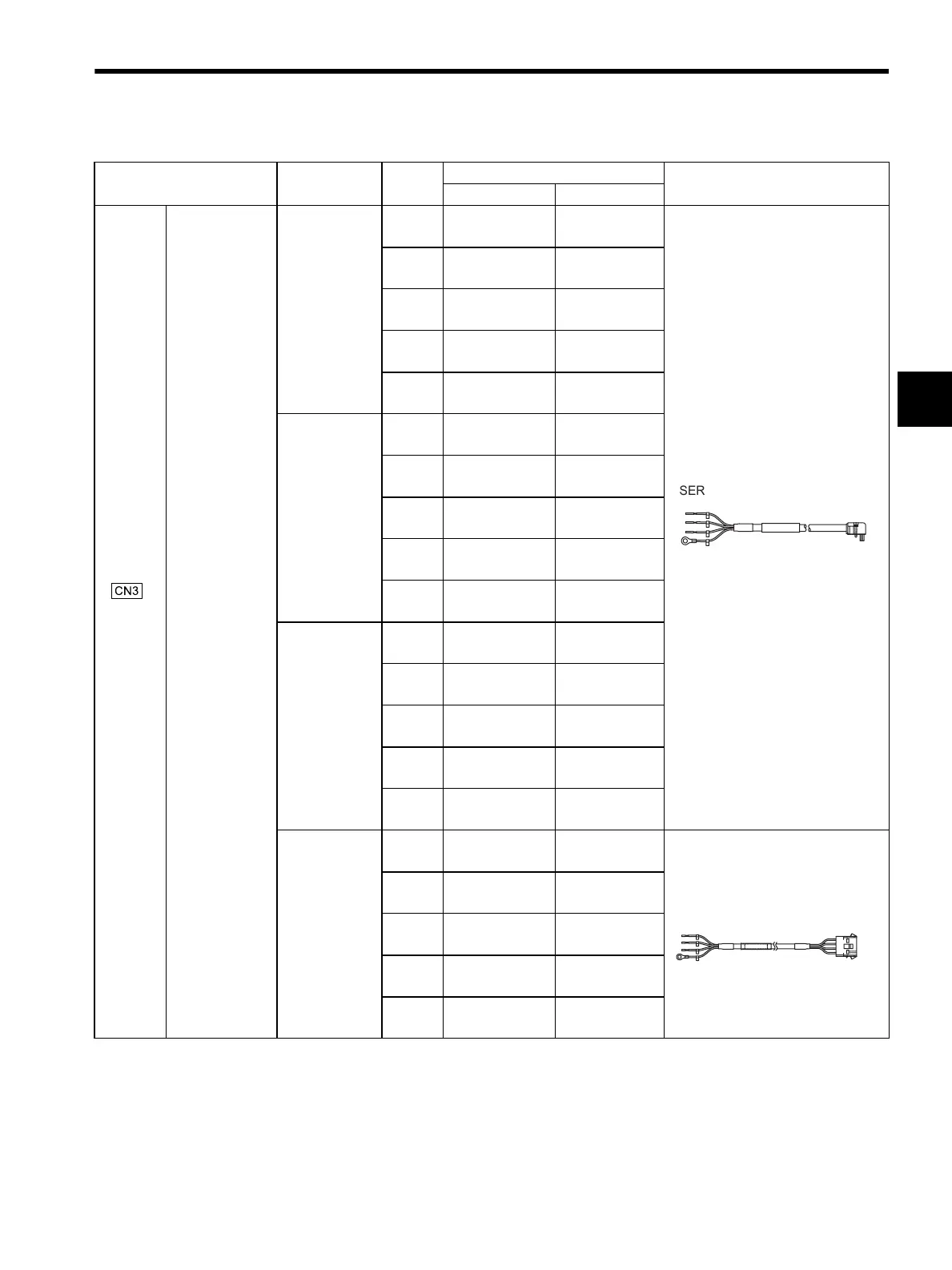

2.4 Selecting Cables
2-11
2
d
Servo-
motor
Main
Circuit
Cables
Without brakes
SGMAS
50 to 150 W,
SGMPS
100 W
3 m
(9.84 ft)
JZSP-CSM01-03 JZSP-CSM21-03
5 m
(16.4 ft)
JZSP-CSM01-05 JZSP-CSM21-05
10 m
(32.8 ft)
JZSP-CSM01-10 JZSP-CSM21-10
15 m
(49.2 ft)
JZSP-CSM01-15 JZSP-CSM21-15
20 m
(65.5 ft)
JZSP-CSM01-20 JZSP-CSM21-20
SGMAS
200 to 600 W,
SGMPS
200 to 400 W
3 m
(9.84 ft)
JZSP-CSM02-03 JZSP-CSM22-03
5 m
(16.4 ft)
JZSP-CSM02-05 JZSP-CSM22-05
10 m
(32.8 ft)
JZSP-CSM02-10 JZSP-CSM22-10
15 m
(49.2 ft)
JZSP-CSM02-15 JZSP-CSM22-15
20 m
(65.5 ft)
JZSP-CSM02-20 JZSP-CSM22-20
SGMAS
750 W, 1.15
kW
3 m
(9.84 ft)
JZSP-CSM03-03 JZSP-CSM23-03
5 m
(16.4 ft)
JZSP-CSM03-05 JZSP-CSM23-05
10 m
(32.8 ft)
JZSP-CSM03-10 JZSP-CSM23-10
15 m
(49.2 ft)
JZSP-CSM03-15 JZSP-CSM23-15
20 m
(65.5 ft)
JZSP-CSM03-20 JZSP-CSM23-20
SGMPS
750 W
3 m
(9.84 ft)
JZSP-CMM00-03 JZSP-CMM01-03
5 m
(16.4 ft)
JZSP-CMM00-05 JZSP-CMM01-05
10 m
(32.8 ft)
JZSP-CMM00-10 JZSP-CMM01-10
15 m
(49.2 ft)
JZSP-CMM00-15 JZSP-CMM01-15
20 m
(65.5 ft)
JZSP-CMM00-20 JZSP-CMM01-20
* Use flexible cables for movable sections such as robot arms. Refer to 5.6 Flexible Cables.
(cont’d)
Name Servomotor
Model
Length Type Specifications
Standard Type Flexible Type *
CN3
SERVOPACK end
Servomotor end
SERVOPACK end
Servomotor end
