4.3 Servopack Ratings and Characteristics
— 4-27 —

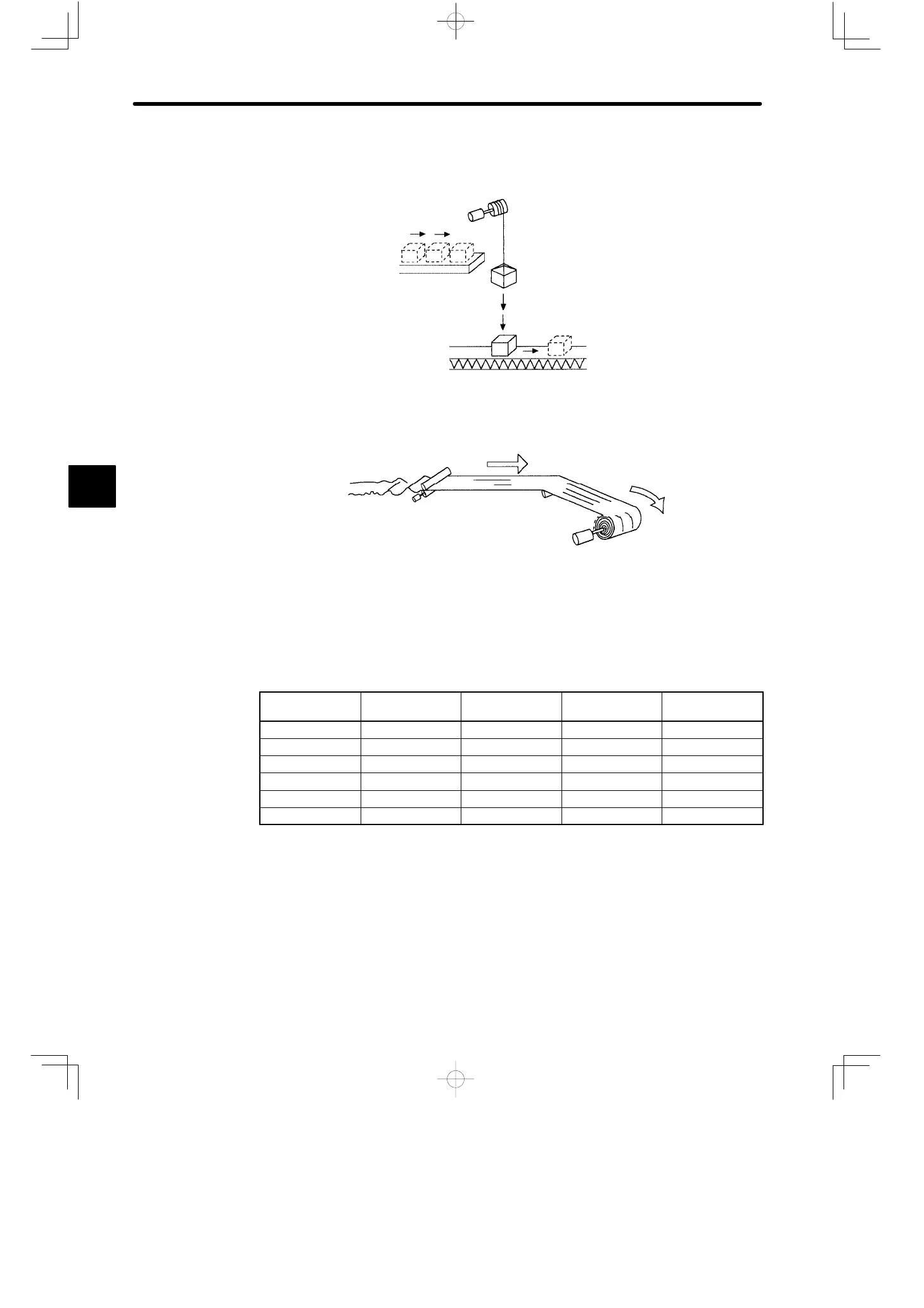

• Overhanging Load Example 1: Motor drive for vertical axis, using no counterweight
Motor
• Overhanging Load Example 2: Tension control drive
Tension
Motor subject to be rotated from feed
motor to keep applied tension.
Motor
4.3.5 In-rush Current and Power Loss
The following table shows the inrush current and power loss for each Servopack.
Servopack Type Capacity (W) Inrush Current
(Aop)
Output Current
(A rms)
Power Loss (W)
SGDF-A1C 10 3.8 2.1 7
SGDF-A2C 20 3.8 2.0 7
SGDF-A3C 30 3.8 2.9 7
SGDF-B3C 3 3.8 1.3 7
SGDF-B5C 5 3.8 1.3 7
SGDF-B9C 10 3.8 1.5 7
4
