YASKAWA V7 User Manual

A5-4
Model Size Dimensions in inches (mm) Weight
Voltage
CIMR- Lbs.
Class
V7CU
HP W H D W1 H1 H2 W2 d
(kg)
Fig.
20P24 0.25 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 7.8 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.52)
20P44 0.5 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.0 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.62)
20P74 1 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.2 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.72)
21P54 2 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.0 4
230V (170) (254) (190) (158) (239) (6) (6) (5) (5.90)
3-Phase 22P24 3 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.3 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.00)
23P74 5 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.7 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.20)
25P54 7.5 11.41 15.98 11.34 10.63 14.17 0.91 0.39 0.28 41.5 4
(290) (406) (288) (270) (360) (23) (10) (7) (18.6)
27P54 10 11.41 15.98 11.34 10.63 14.17 0.91 0.39 0.28 41.5 4
(290) (406) (288) (270) (360) (23) (10) (7) (18.8)
40P24 1/2 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.4 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.82)
40P44 3/4 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.4 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.82)
40P74 1 & 2 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.7 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.92)
460V 41P54 3 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.3 4
3-Phase (170) (254) (190) (158) (239) (6) (6) (5) (6.00)
42P24 3 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.3 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.00)
43P74 5 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.7 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.20)
45P54 7.5 & 10 11.41 15.74 11.42 10.63 14.17 0.79 0.39 0.28 41.5 4
(290) (400) (290) (270) (360) (20) (10) (7) (18.8)
47P54 15
(1)
11.41 15.74 11.42 10.63 14.17 0.79 0.39 0.28 41.5 4
(290) (400) (290) (270) (360) (20) (10) (7) (18.8)
W1
W
W2
H1 H
H2
4-d
D

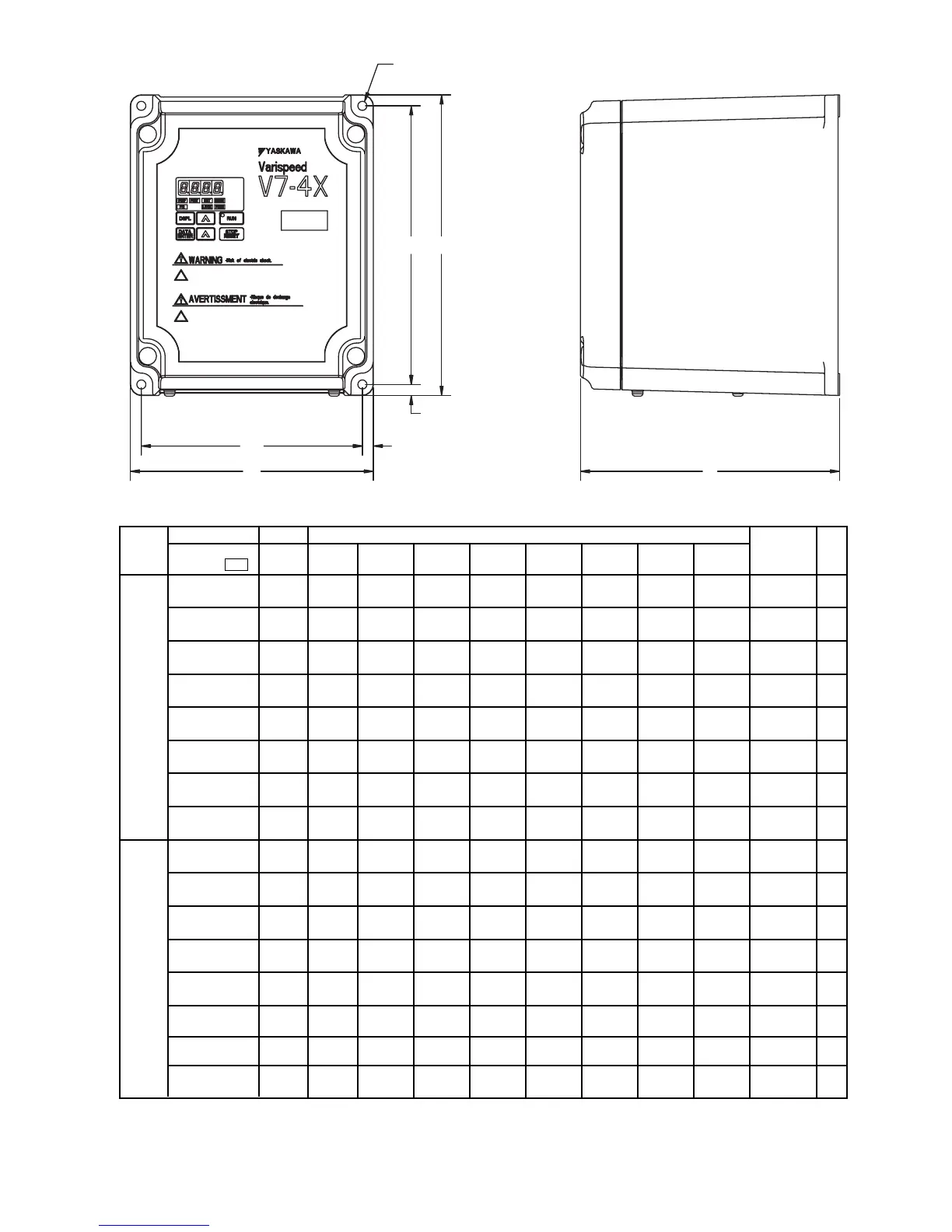

V74X Enclosed wall mounted type (NEMA 4)
Fig. 4
When drives include network communications option board, add 2.0" to drive depth.
(1)
Applicable to the V74X Model only.
