User Guide for the CP920 HD IP Conference Phone
114
Sending RTP Stream

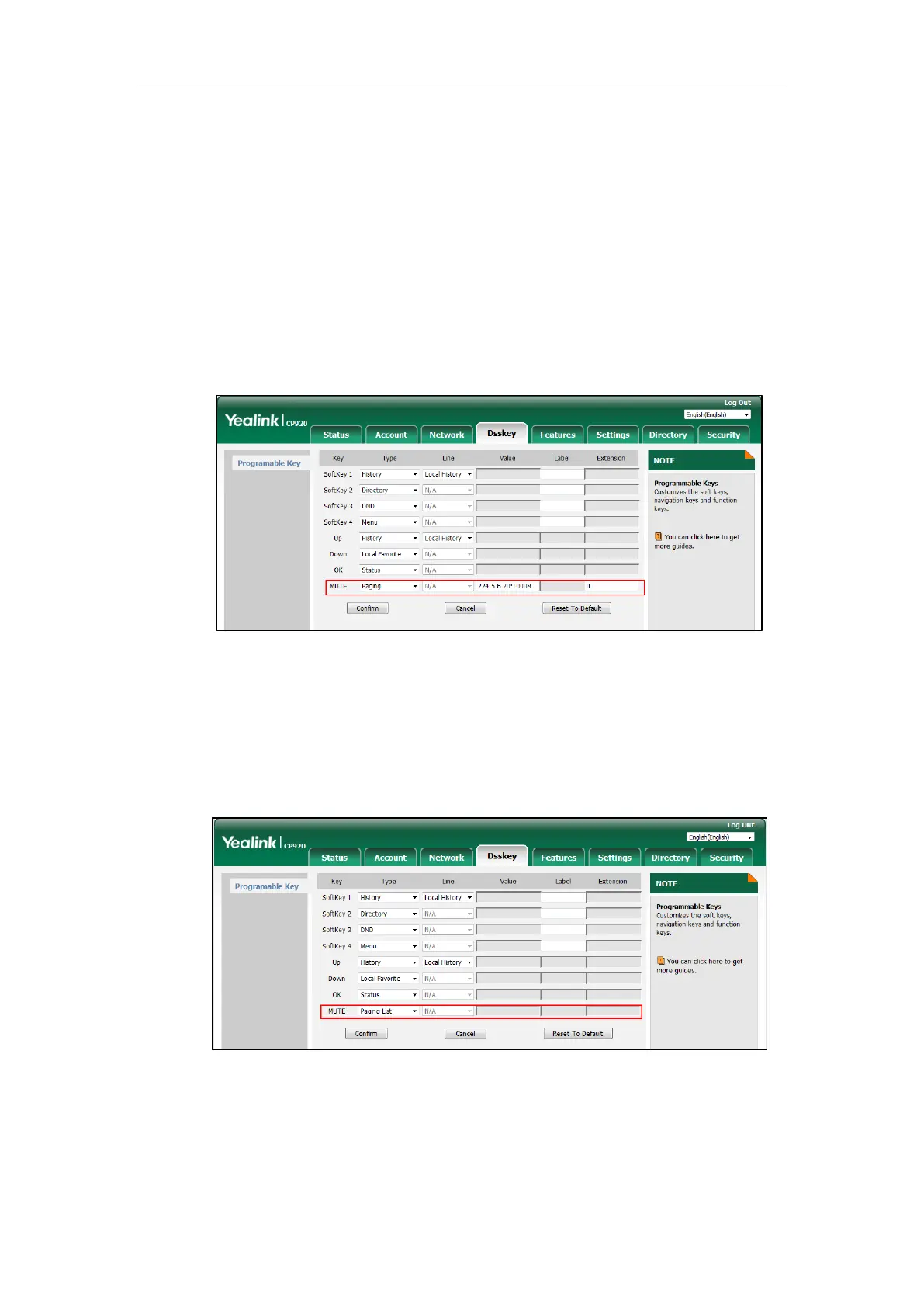

To configure a multicast paging key via web user interface:
1. Click on Dsskey->Programable Key.
2. Select the desired programable key.
3. Select Paging from the pull-down list of Type.
4. Enter the multicast IP address and port number (e.g., 224.5.6.20:10008) in the Value field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
5. Enter the desired channel in the Extension field.
The valid channel ranges from 0 to 30.
6. Click Confirm to accept the change.
To configure a paging list key via web user interface:
1. Click on Dsskey->Programable Key.
2. Select the desired programable key.
3. Select Paging List from the pull-down list of Type.
4. Click Confirm to accept the change.
To configure paging list via phone user interface:
1. Tap the paging list key when the phone is idle.
2. If the paging list key is not configured, you can also tap Menu->Features->Paging List
