Yealink SIP-T42S User Manual

User Guide for the SIP-T42S IP Phone
58
Incoming/Outgoing Call Lookup
You can enable the phone to present the caller/callee identity stored in the remote phone book
when receiving/placing a call.

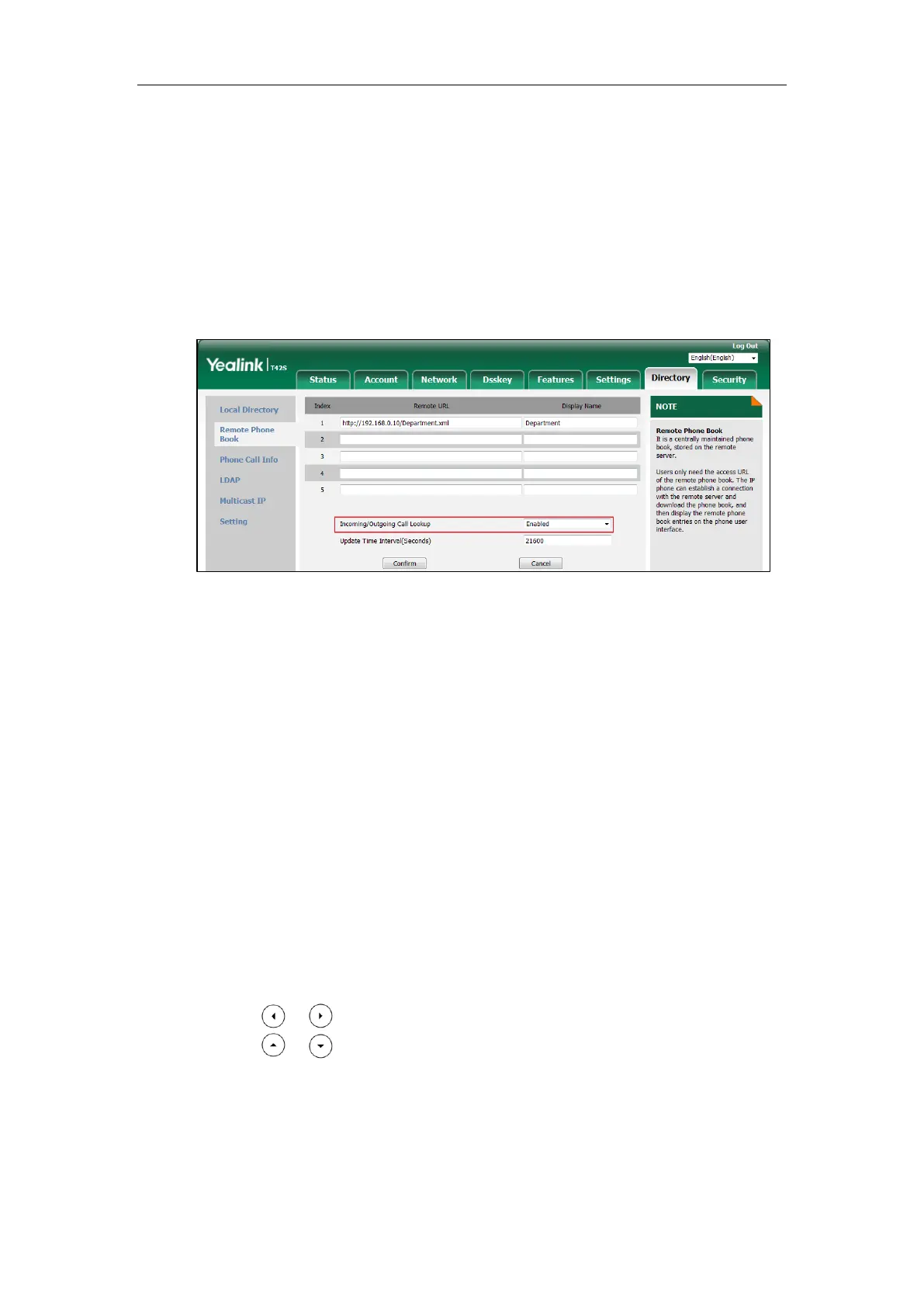

To configure incoming/outgoing call lookup and update time interval via web user
interface:
1. Click on Directory->Remote Phone Book.
2. Select Enabled from the pull-down list of Incoming/Outgoing Call Lookup.
3. Click Confirm to accept the change.
Call History Management
The SIP-T42S IP phone maintains call history lists of Placed Calls, Received Calls, Missed Calls
and Forwarded Calls. Each call history list supports up to 100 entries. You can view call history,
place a call, add a contact or delete an entry from the call history list.
History record feature is enabled by default. If you don’t want to save the call history, you can
disable the feature.
Viewing History Records
To view call history:
1. Press the History soft key.
The LCD screen displays all call records.
2. Press or to switch among all, missed, placed, received and forwarded call lists.
3. Press or to select the desired entry.
4. Press the Option soft key, and then select Detail.
The detailed information of the entry appears on the LCD screen.

Yealink SIP-T42S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Lines quantity	12 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	6
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
