Yealink SIP-T42S User Manual

User Guide for the SIP-T42S IP Phone
62
System Customizations
Logo Customization
You can upload your custom logo which will be displayed on the idle screen.

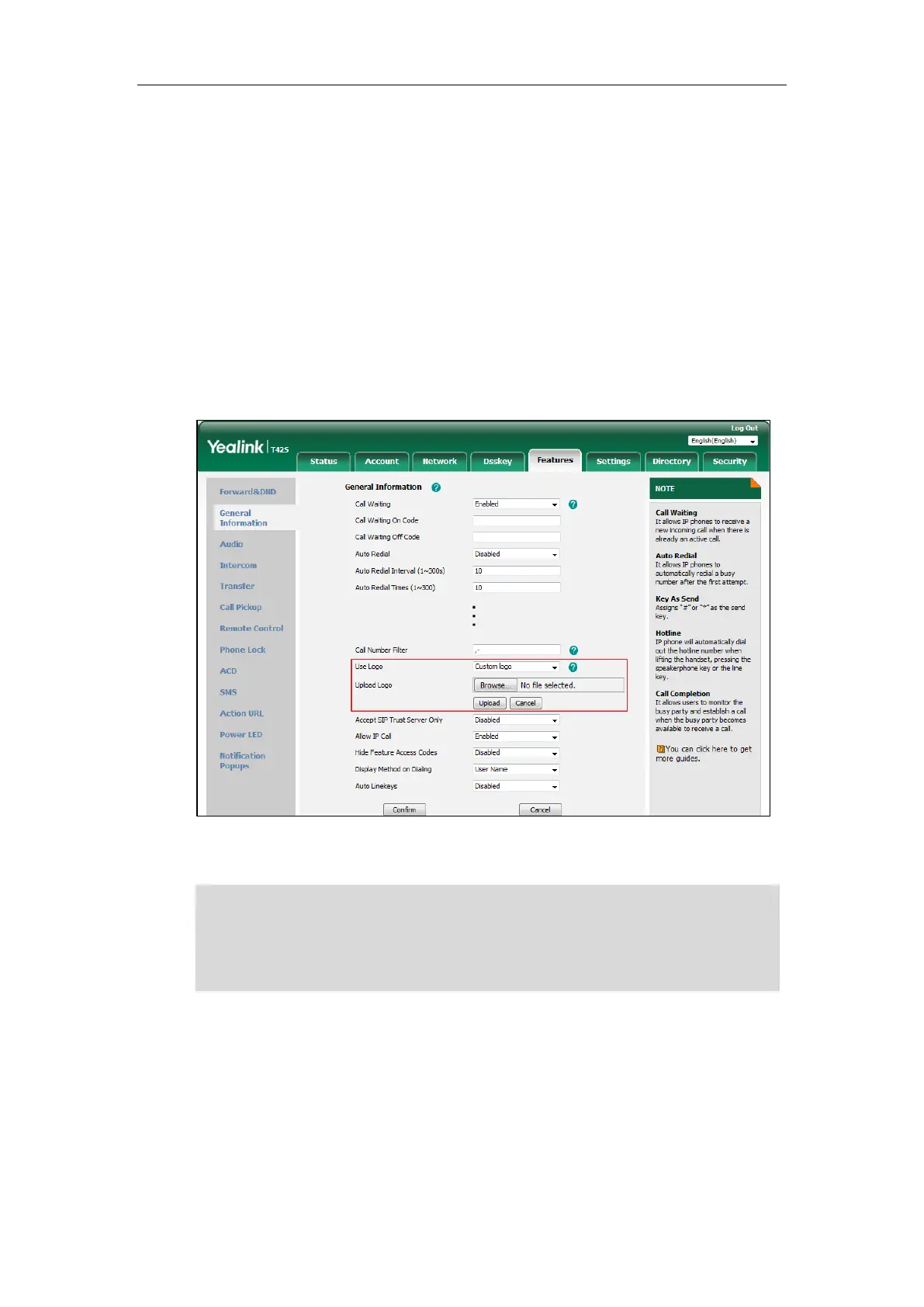

To upload a custom logo via web user interface:
1. Click on Features->General Information.
2. Select Custom logo from the pull-down list of Use Logo.
3. Click Browse to locate the logo file from your local system.
4. Click Upload to upload the file.
Note
Delete item will appear after you upload a custom logo, you can click Delete to delete the
custom logo.
The logo file format must be *.dob, contact your system administrator for more information.
A custom logo can be uploaded via web user interface only.

Yealink SIP-T42S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Lines quantity	12 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	6
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
