YOKOGAWA CA500 User Manual

1-8
IM CA500-01EN
1.3 Sweep function
The source value can be varied according to a process set in advance.
There are three types: linear sweep, step sweep, and program sweep.
This cannot be used when the source function is set the frequency.

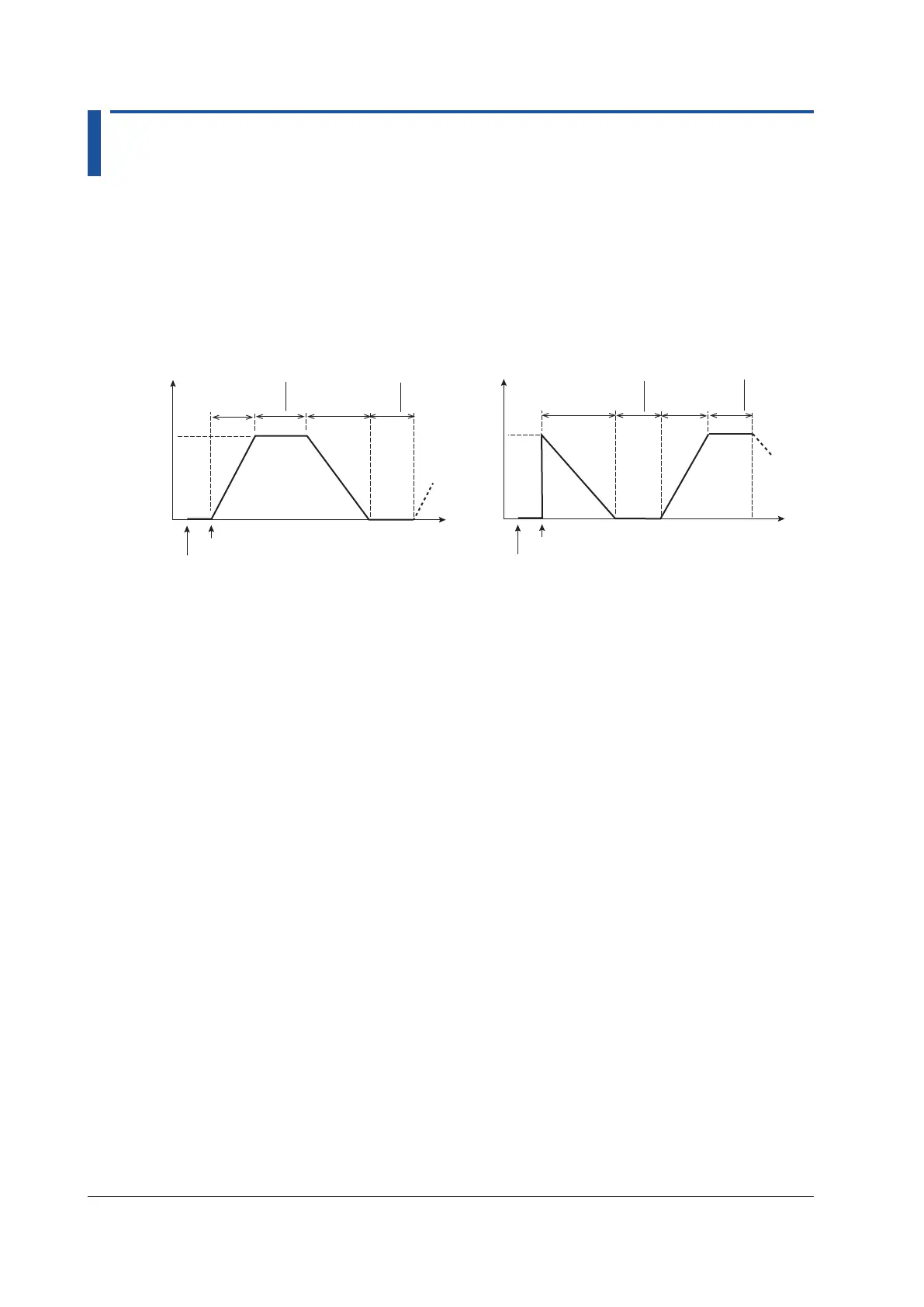

Linear Sweep
The source value is varied linearly from 0% to 100% (sweep up) or from 100% to 0% (sweep
down).
100%
0%
Output on
Sweep start (UP key)
Interval
time
100%
0%
Output on
Sweep start (DOWN key)
Interval
time
Time
Source
value
Time
Source
value
Sweep time
(rise time)
Sweep time
(fall time)
Sweep time
(rise time)
Sweep time
(fall time)
Interval
time
Interval
time
Sweep Time
The time period during which the source value is varied. You can set the rise time and fall time
separately.
Interval Time
The time period during which the source value is held when the source value reaches 0% or
100% after sweeping.
