3.4 Temperature Measurement Using
Thermocouples

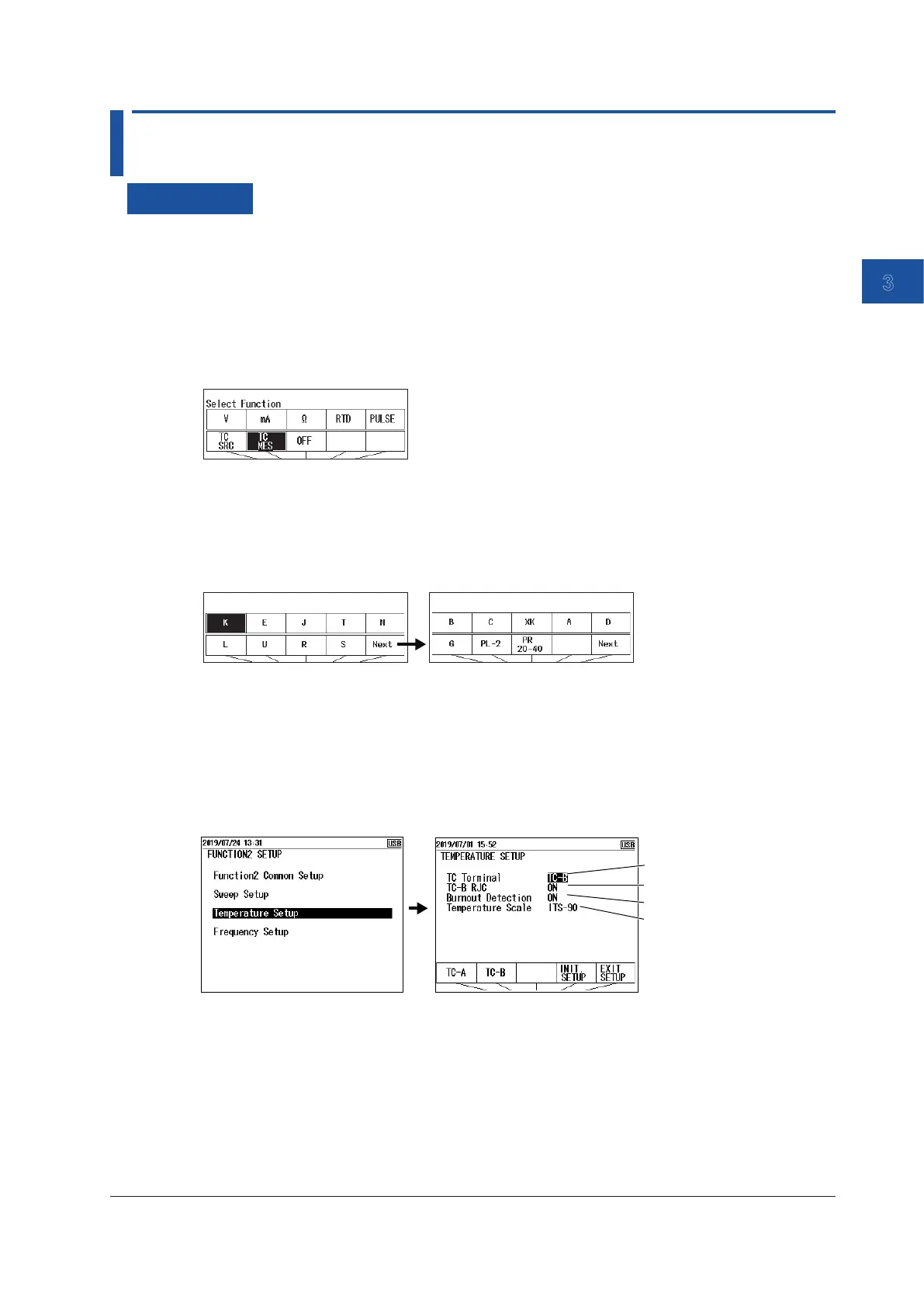

Procedure
Setting the Function
1.
With the source value and measurement value displayed, press FUNCTION 2. The function
options are displayed.
Temperature measurement using a thermocouple is configured using Function 2.
2.
Use the arrow keys to select TC MES (Measure). The display returns to the source and
measurement value display.
Setting the Measurement Range (TC Type)
3.
Under Function 2, press RANGE.
4.
Use the arrow keys to set the TC type. The display returns to the source and measurement
value display.
Setting the 0% and 100% Values (when necessary)
5.
Set the 0% and 100% values according to section 3.7, “Setting the 0% and 100% Values”.
Selecting the Terminal
6.
With the source value and measurement value displayed, press SETUP under Function 2.
7.
Select Temperature Setup, and press ENTER. A Temperature Setup setup screen appears.
Set the terminal.
Set the RJC sensor.
Turn burnout on or off.
Set the temperature
scale.
8.
Select TC Terminal. TC-A and TC-B appear in the selection menu.
9.
Using the arrow keys, select TC-A to use the TC-A terminal (thermocouple mini plug) or TC-B
to use TC-B.
To finish entering the settings here, proceed to step 16.
