3.7 Setting the 0% and 100% Values
Procedure
Measurements Other Than Temperature Measurements Using a
Thermocouple
1.

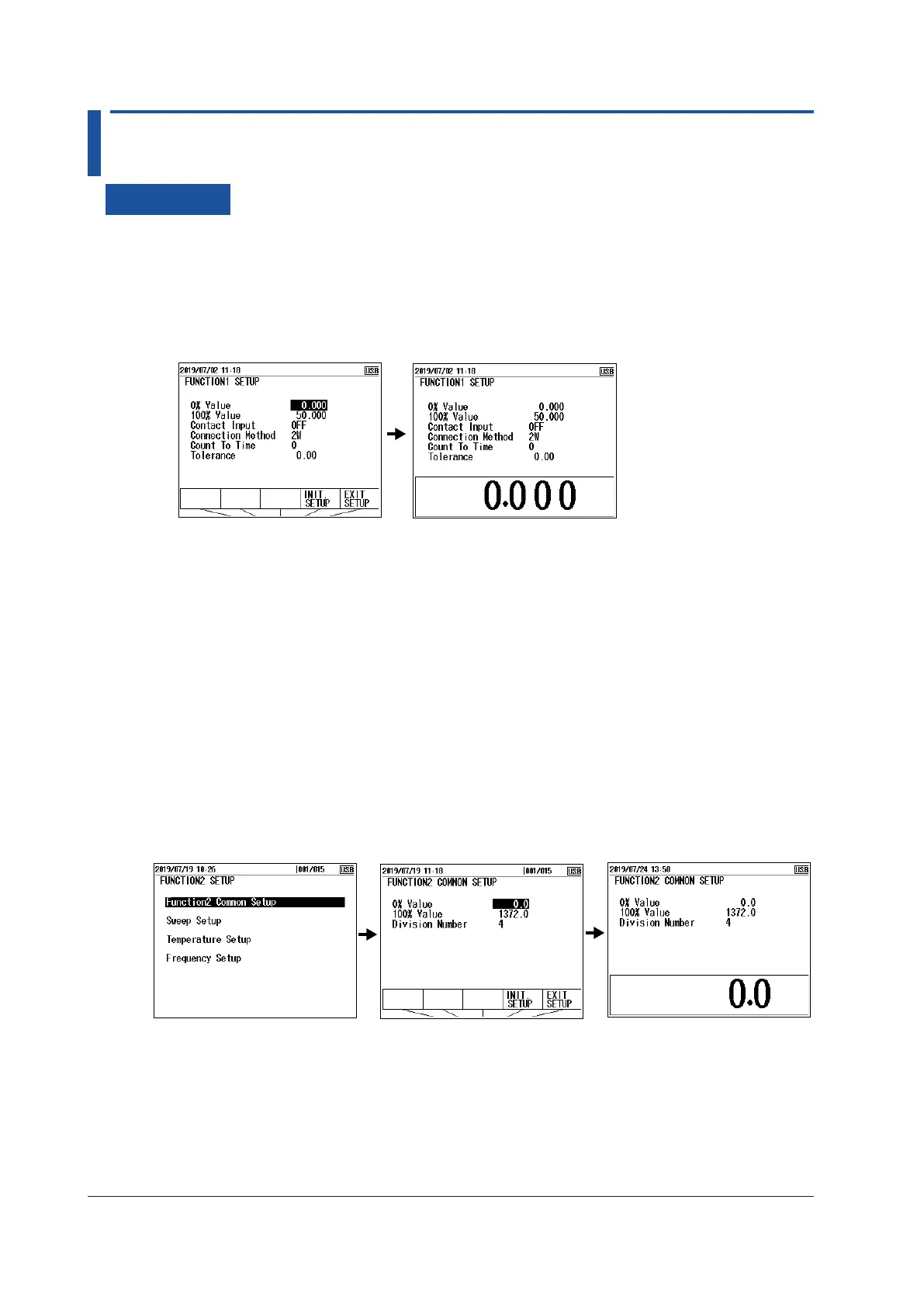

With the source value and measurement value displayed, press SETUP under Function 1.
2.
Use the cursor keys to select the 0% Value value, and then press ENTER. The settings are
displayed at the bottom of the screen.
3.
Use the arrow keys to select the 0% value, and then press ENTER.
4.
Likewise, set the 100% value.
5.
Press the arrow key corresponding to EXIT SETUP. The settings are confirmed, and the screen
reverts to show the source value and measurement value.
The cancel the settings, press ESC to return to the screen and step 1.
To initialize the settings, pressing the arrow key corresponding to INIT SETUP.
Temperature Measurements Using a Thermocouple
1.
With the source value and measurement value displayed, press SETUP under Function 2.
2.
Use the cursor keys to select Function2 Common Setup, and then press ENTER. A screen
appears for setting the 0% and 100% values.
3.
Use the cursor keys to select the 0% Value value, and then press ENTER. The settings are
displayed at the bottom of the screen.
4.
Use the arrow keys to select the 0% value, and then press ENTER.
5.
Likewise, set the 100% value.
6.
Press the arrow key corresponding to EXIT SETUP. The settings are confirmed, and the screen
reverts to show the source value and measurement value.
The cancel the settings, press ESC to return to the screen and step 1.
To initialize the settings, pressing the arrow key corresponding to INIT SETUP.
