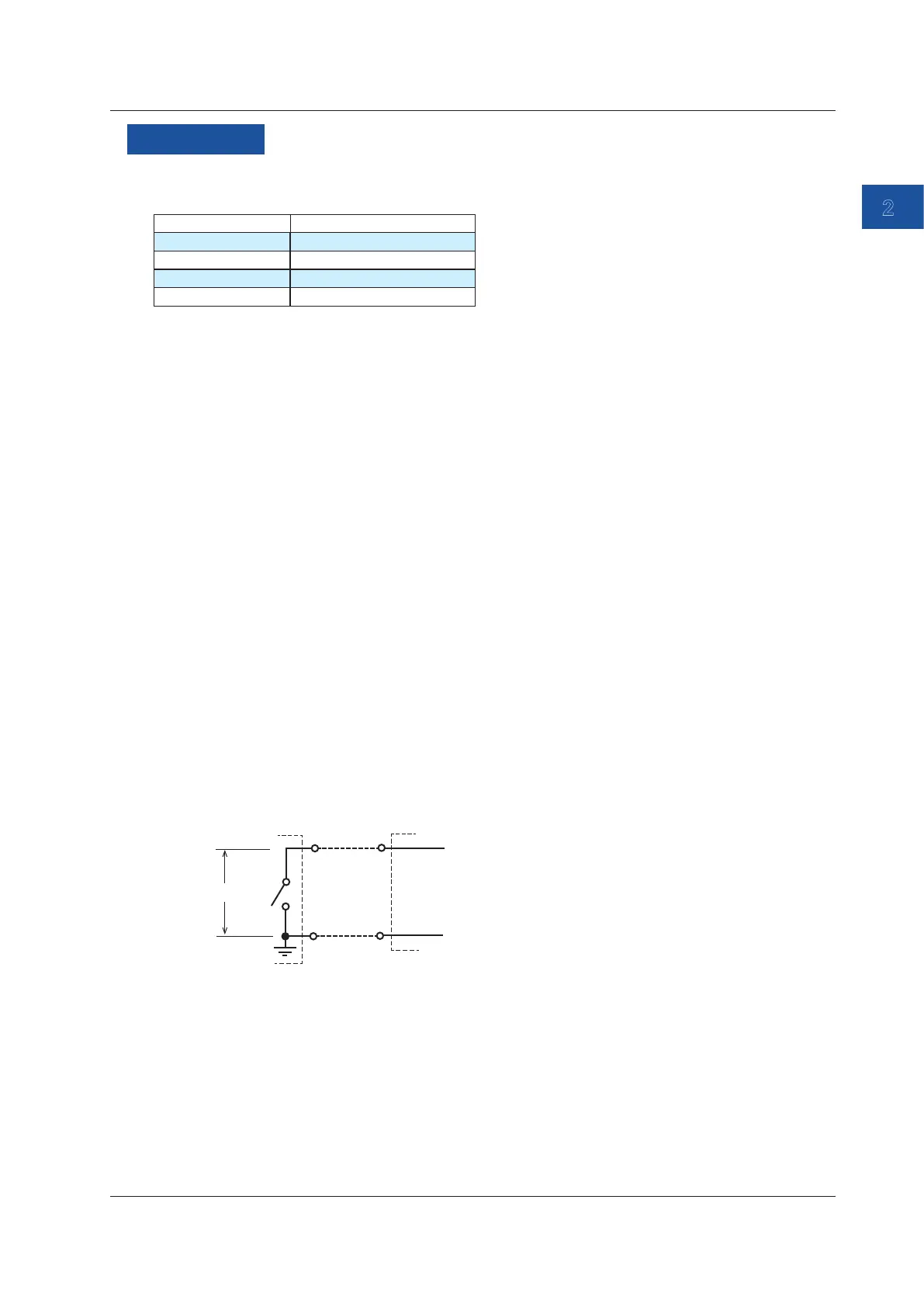

Source
Description
Source Range
You can select from the following four source ranges.
Range Source Range
500 Hz 1.00 Hz to 550.00 Hz
5000 Hz 1.0 Hz to 5500.0 Hz
50 kHz 0.001 kHz to 50.000 kHz
CPM 1.0 to 1100.0/min
If you select CPM, set the number of pulses to generate per minute.
Bandwidth
Set the voltage of the high side of the pulse signal. The low side is 0 V.
Set the voltage in the range of 0.1 V to 15.0 V.
The default setting is 0.1 V.
Duty Cycle
The duty cycle of the pulse signals that this instrument generates is 50%.
Pulse Count
Set the number of pulses to generate.
If you set the number to 0, the instrument continuously generates pulse signals at the specify
frequency.
Contact Output
If you turn on the contact output, the non-voltage contact is turned on then off at the specify
frequency or the number of pulses/min.
Be careful not to apply a voltage exceeding 30 VDC to the source terminal of this instrument.
The instrument’s
output terminal
H
L
H
L
Input terminal of the
output destination device
0.5 to 30 VDC
When you turn on the contact output, the amplitude setting is ignored.
2.6 Frequency and Pulse Source
