Source

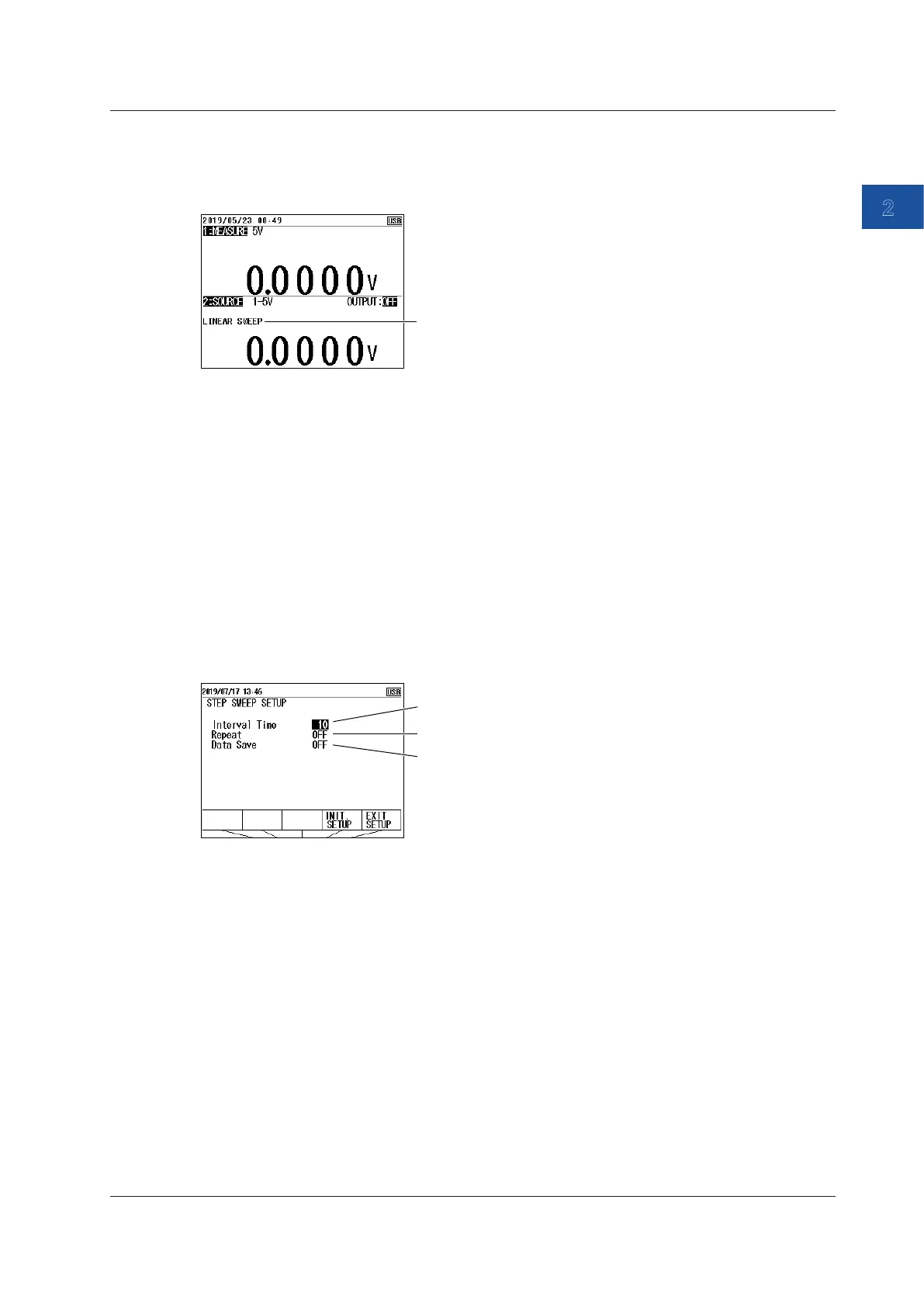

Executing a Linear Sweep
11.
With the source value and measurement value displayed, press SWEEP under Function 2
several times to display LINEAR SWEEP on the screen.
Press SWEEP to display
LINEAR SWEEP.
12.
Press OUTPUT ON/OFF to turn on the source.
13.
Press UP or DOWN. Sweeping starts..
When you press UP, the 0% source values displayed, and sweeping starts from 0% to 100%.
When you press DOWN, the 100% source values displayed, and sweeping starts from 100% to
0%.
If repeat is set to OFF, sweeping stops automatically after one cycle is executed. Press
OUTPUT ON/OFF to turn off the source.
If repeat is set to ON, sweeping continues until you turn off the source.
Setting and Executing Step Sweeps
3.
Select Step Sweep Setup, and press ENTER.
Set the interval time.
Turn repetition on or off.
Turn data save on or off.
Setting the Interval Time
4.
Select Interval Time, and press ENTER. A list of options appears.
5.
Use the arrow keys to set the interval time, and then press ENTER.
The number of steps is determined by the number of divisions of the divided source (see
section 2.8, “Dividing and Generating the Source Values”).
Turning Repeat On and Off
6.
Select Repeat. ON and OFF appear in the selection menu.
7.
Use the arrow keys to set the sweep repetition to ON or OFF.
2.9 Sweep Source
2-21
IM CA500-01EN
