Source
Description
Number of Divisions
The range from the 0% value to the 100% value is divided and output.

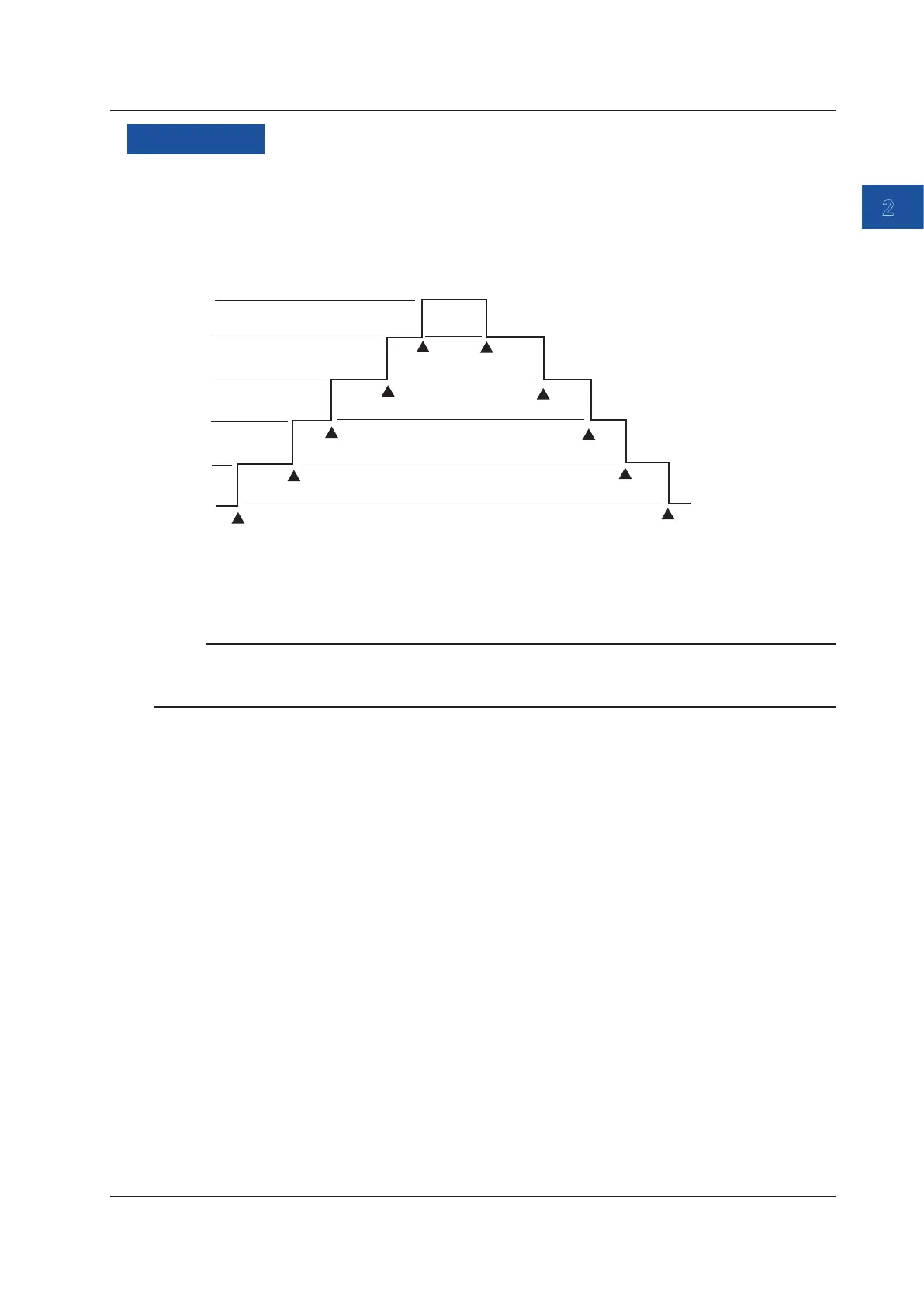

For example, if the number of divisions is set to 5, the 0%, 20%, 40%, 60%, 80%, and 100% values
are generated.
You can change the source value using the UP and DOWN keys.
UP key
DOWN key
UP key
UP key
UP key
DOWN key
DOWN key
DOWN key
0%
20%
40%
60%
80%
UP key
DOWN key
100%
The number divisions can be set in the range of 1 to 20.
When the source range is 1-5V, 1-5V√, 4-20mA, 4-20mA√, or 4-20mA Simulate, the number divisions
is fixed to 4.
Note
When you use the step sweep function, the source value of each step can be held for the same time period,
and the source value can be stepped up or down automatically (see “Step Sweep” in section 2.9, “Sweep
Source”).
2.8 Dividing and Generating the Source Values
2-19
IM CA500-01EN
2
