Confirming the Settings
13.
Press the arrow key corresponding to EXIT SETUP. The settings are confirmed, and a screen
appears showing the source value and measurement value.
The cancel the settings, press ESC to return to the screen and step 2.
To initialize the settings, pressing the arrow key corresponding to INIT SETUP.
Executing a Program Sweep
14.
With the source value and measurement value displayed, press SWEEP under Function 2
several times to display PROGRAM SWEEP on the screen.
The source value display is set to the value assigned to source value No. 1.

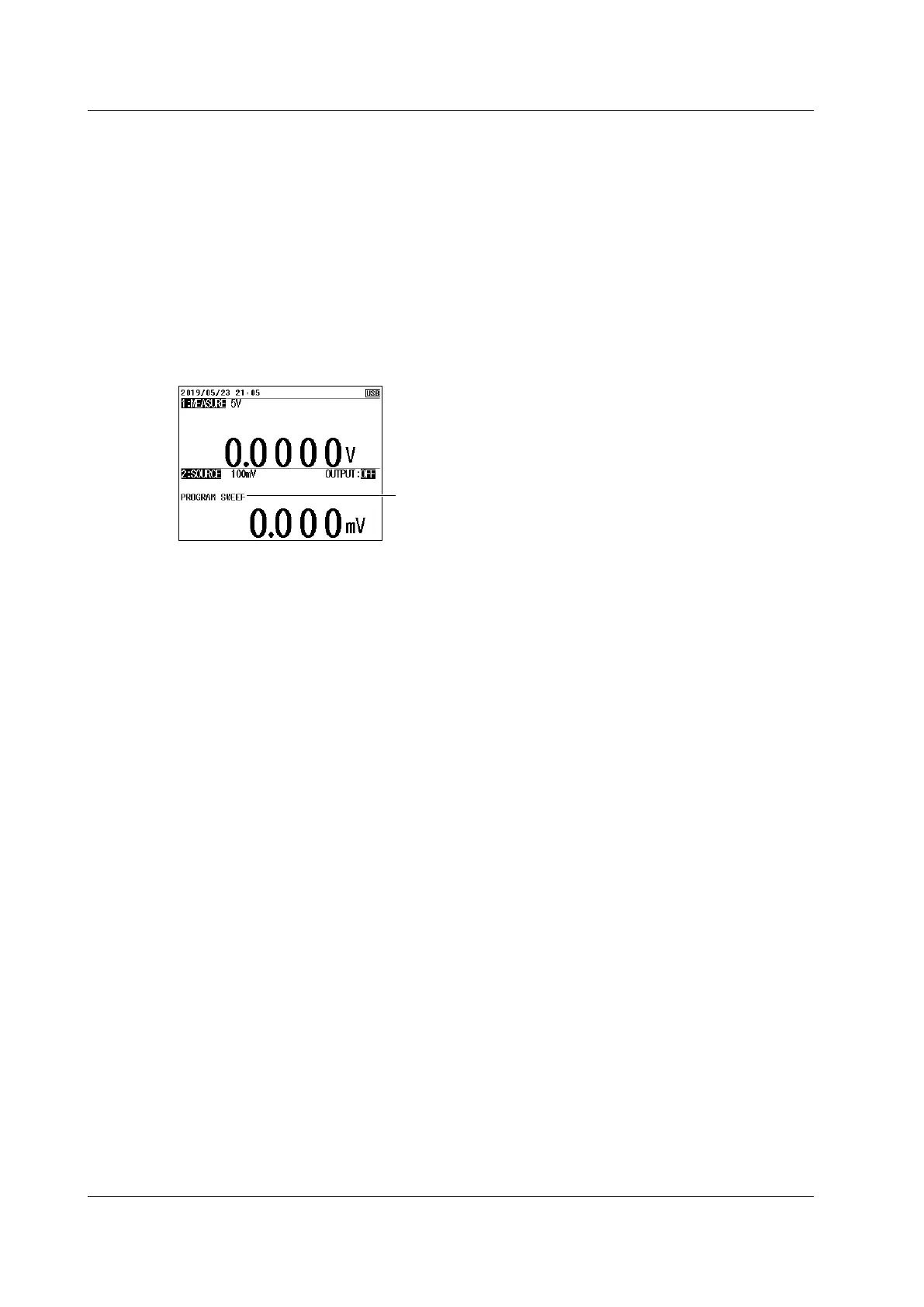

Press SWEEP to display
PROGRAM SWEEP.
15.
Press OUTPUT ON/OFF to turn on the source.
16.
Press UP or DOWN.
The source values are generated in order from No. 1 according to the settings.
When the last specified number is reached, the instrument returns to No. 1 and continues the
signal generation.
To stop a sweep, press OUTPUT ON/OFF.
2.9 Sweep Source
2-24
IM CA500-01EN
