Setting the Source Value
11.

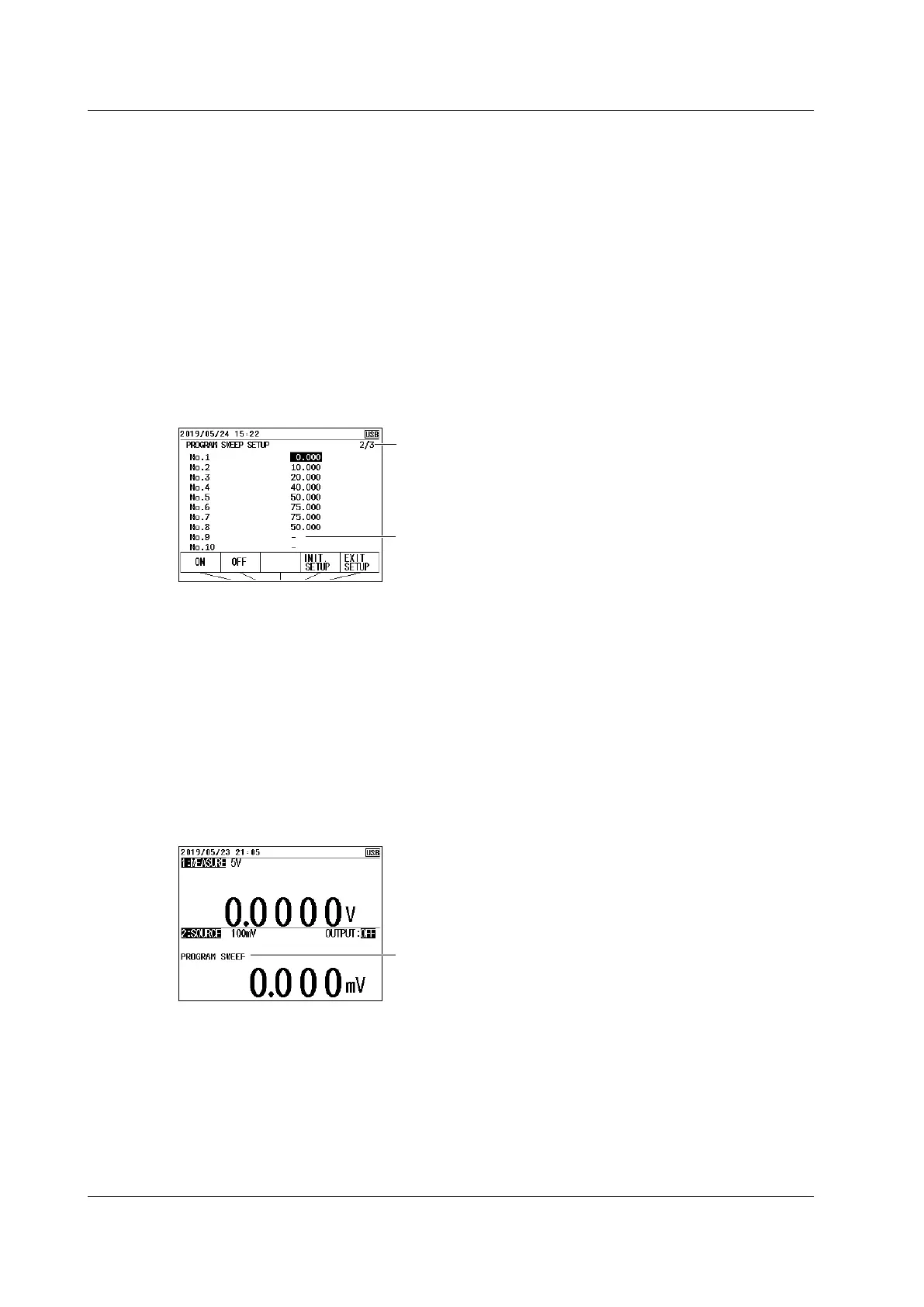

Use the cursor keys to display page 2/3 of Program Sweep Setup.
12.
Select No.1 under Output Data. ON and OFF appear.
13.
Use the arrow keys to select ON, and then press ENTER. The settings are displayed at the
bottom of the screen.
14.
Use the arrow keys to select the source value (%), and then press ENTER.
15.
Likewise, set the source values of Output Data No.2 to No.20.
For the numbers you will not use, use the arrow keys to select OFF. “-” is displayed for the
source value.
If you set a number to off, the instrument sweeps up to the last number that has a source value
assigned. Then, sweeping stops.
Set the source value on page 2/3 or 3/3.
OFF
Confirming the Settings
16.
Press the arrow key corresponding to EXIT SETUP. The settings are confirmed, and a screen
appears showing the source value and measurement value.
The cancel the settings, press ESC to return to the screen and step 2.
To initialize the settings, pressing the arrow key corresponding to INIT SETUP.
Executing a Program Sweep
17.
With the source value and measurement value displayed, press SWEEP under Function 2
several times to display PROGRAM SWEEP on the screen.
The source value display is set to the value assigned to source value No. 1.
Press SWEEP to display
PROGRAM SWEEP.
18.
Press OUTPUT ON/OFF to turn on the source.
19.
Press UP or DOWN.
The source values are generated in order from No. 1 according to the settings.
When the last specified number is reached, sweeping stops automatically.
To stop a sweep in progress, press OUTPUT ON/OFF.
2.9 Sweep Source
2-26
IM CA500-01EN
