Source
Operation While Sweeping Is in Progress
• If you press the UP or DOWN key while sweeping is in progress, you can change the
sweep direction.
• Pressing any of the following keys while sweeping stops the sweeping.
FUNCTION2, RANGE2, ESC, or OUTPUT
Pressing any other keys except the power key does not affect the sweeping operation. Some
keys are disabled during sweeping.

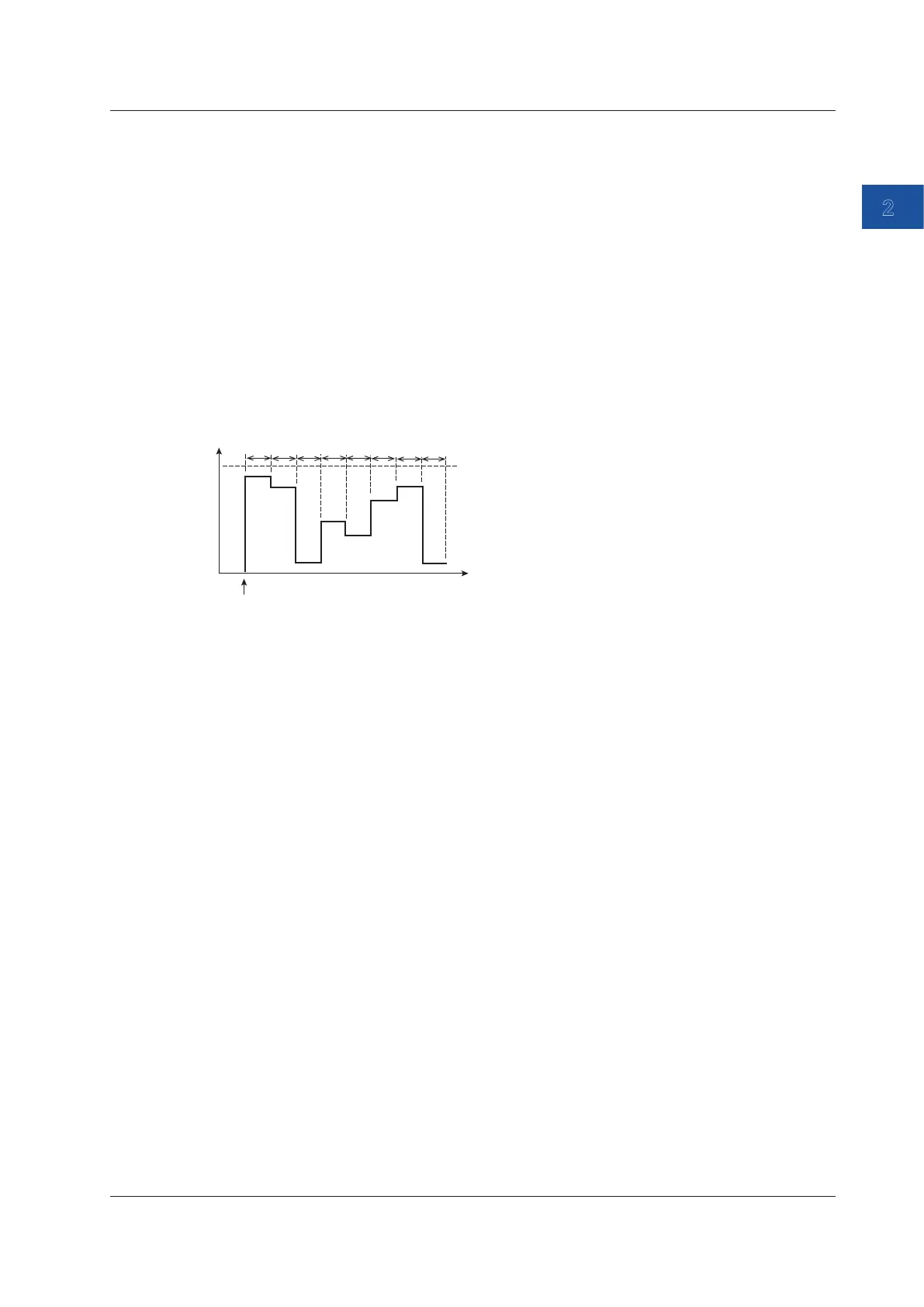

Program Sweep
Assigned source values in the 0% to 100% range are generated in order by number for a given
time period.
You can assign up to 10 source values on the CA500 and 20 source values on the CA550.
100%
0%
Output on
Interval time
t
t
t
t
t
t
t
t
Time
Source
value
1
2
3
4
5
6
7
Source number
8
Interval Time
The time period during which the source value of each step is held.
You can specify 5 to 600 s.
Source Values (No.1 to No.10 (CA500), No.1 to No.20 (CA550)
Set the source values in percentages.
If not all source values are assigned and there is a source number set off or a unused source
number, the instrument sweeps up to the number that a source value is assigned to. Then,
on the CA500, the source value returns to No.1 and sweeping continues. On the CA550,
sweeping stops.
The source time of each number is the time set with the interval time.
Saving Data (Data Save)
The source value and measurement value of each step are automatically saved. The
maximum number of data values that can be saved on the CA500 is 100. The maximum
number of data values that can be saved in a single file on the CA550 is 2000, the maximum
number of files that can be saved is 250.
Calibration Target Information (Model Number, Serial Number, Tag
Number, Loop Number, CA550 only)
Set the calibration target model name, serial number, tag number, and loop number using up
to 33 characters.
The set information is included in the data that is automatically saved during sweeping.
2.9 Sweep Source
2-29
IM CA500-01EN
2
