3-4
IM CA500-01EN
3.2 DC Current Measurement
Description
Measurement Range
The only available measurement range is 50 mA.
Range
Measurement Range
50 mA
±60.000 mA

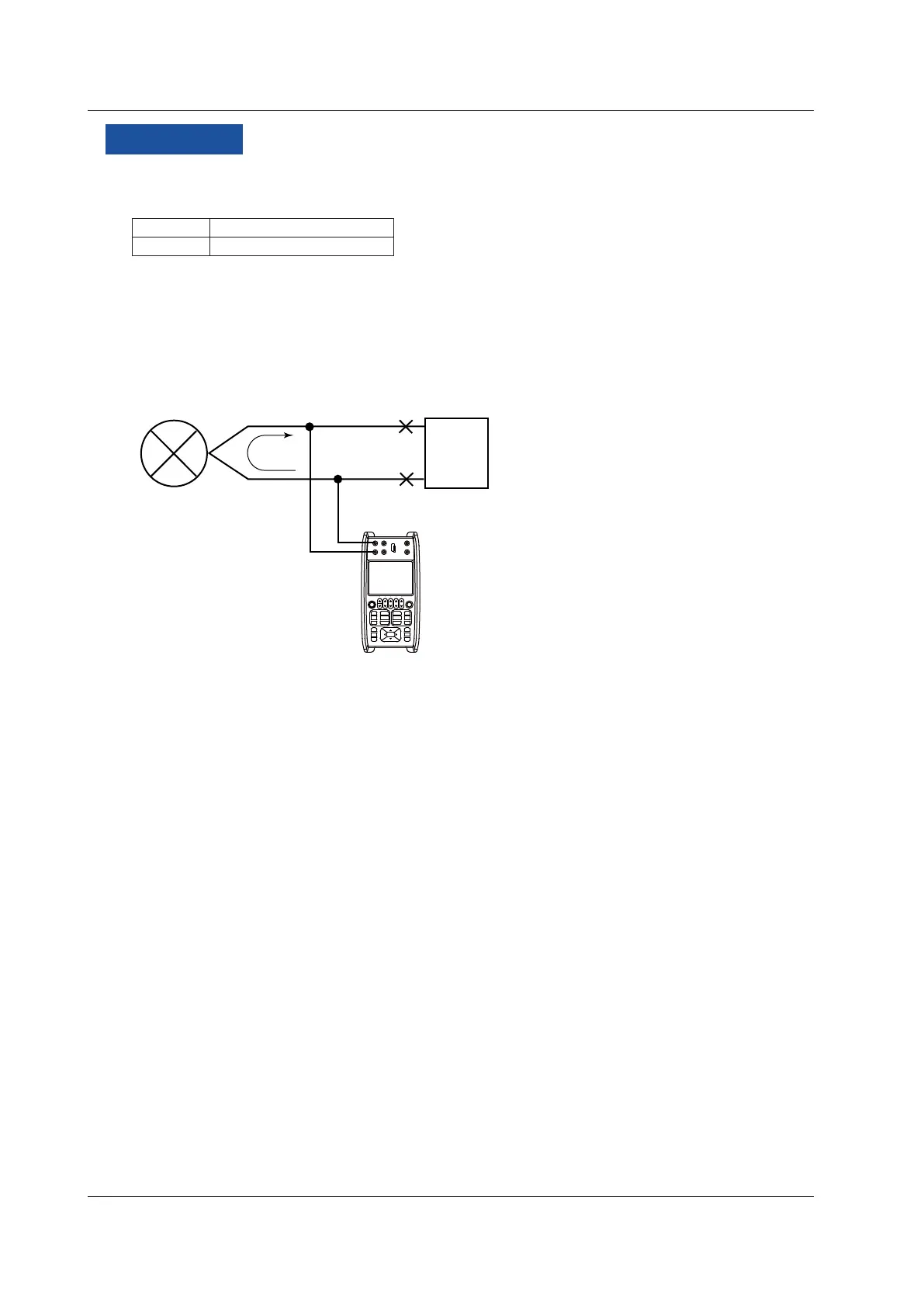

Loop Power
Loop power can be generated during DC current measurement.
T
ransfer signals can be measured while supplying a constant voltage of 24 VDC to the two-wire
transmitter
.
The two-wire transmitter and distributor are not connected.
4-20mA
24 VDC
+
—
Distributor
Two-wire transmitter
H
L
CA500/CA550
65
67
