7-41
IM CW240E
Measurements
7

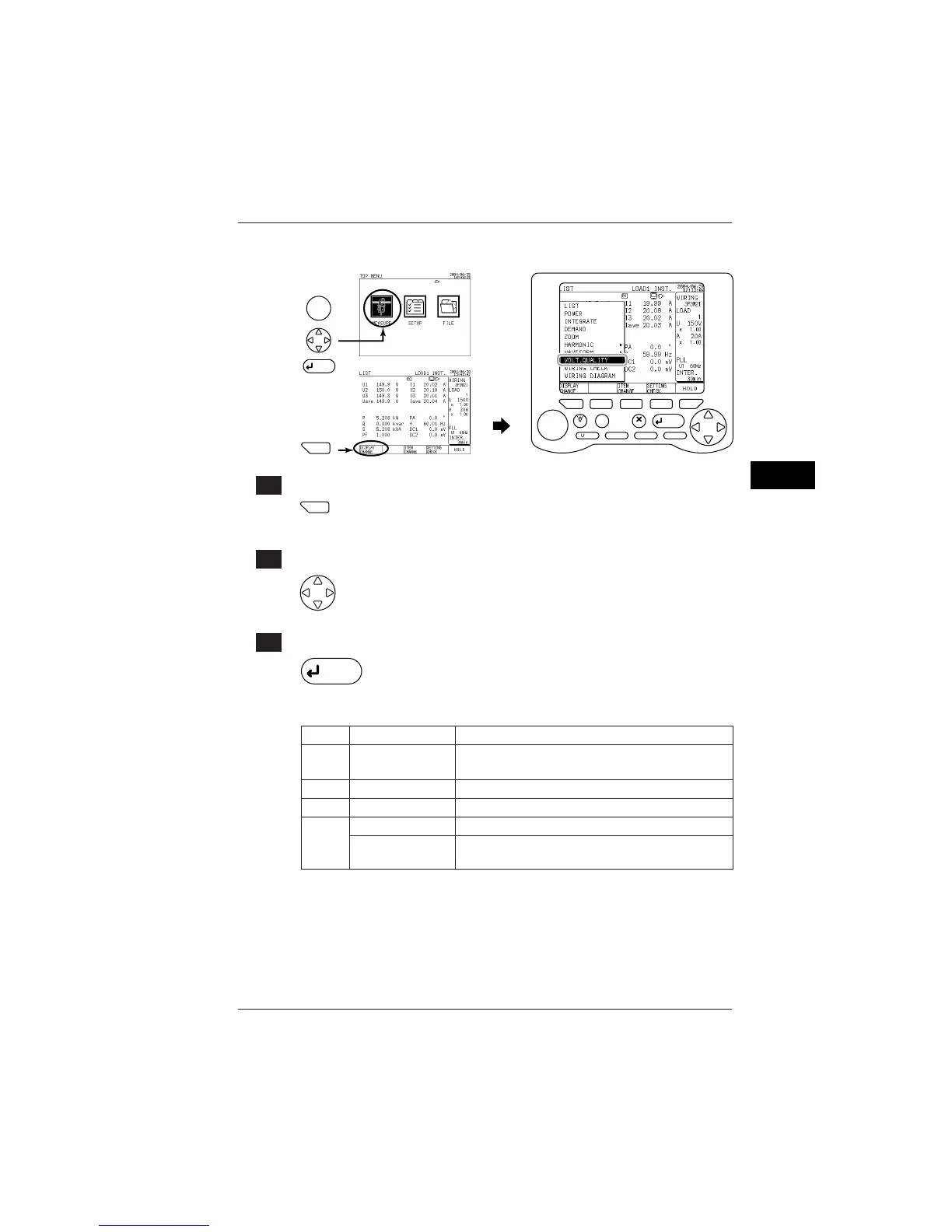

● Displaying the Volt. Quality Screen
TOP
MENU
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
F
1
F
1
[ 1 Displaying the Measure screen
F
1
F
1
Press the F1 key (DISPLAY CHANGE).
The window for switching the screen appears.
[ 2 Selecting voltage quality
Using the cursor key, select VOLT. QUALITY (highlighted).
[ 3 Confirmation
ENTER
Press the ENTER key to confirm it.
The Volt. Quality screen appears.
Description of the Function Keys:
F1 DISPLAY CHANGE Switches the Measure screen.
Lets you manually save/print measured data.
–
F2
F3
F4
ITEM CHANGE
SAVE
–
Switches the item under test.
ALL, SWELL, DIP, and INST.
F5
HOLD
Holds or cancels a displayed screen.
HOLD/Clear
If there is integrated data, press the F5 key for more than 3
seconds to clear it as necessary.
7.8 Measuring Voltage Quality (Voltage Dip, Voltage Swell, or Instantaneous Interruption)
