10-3
IM CW240E
Using the Communication Function (RS-232)
10

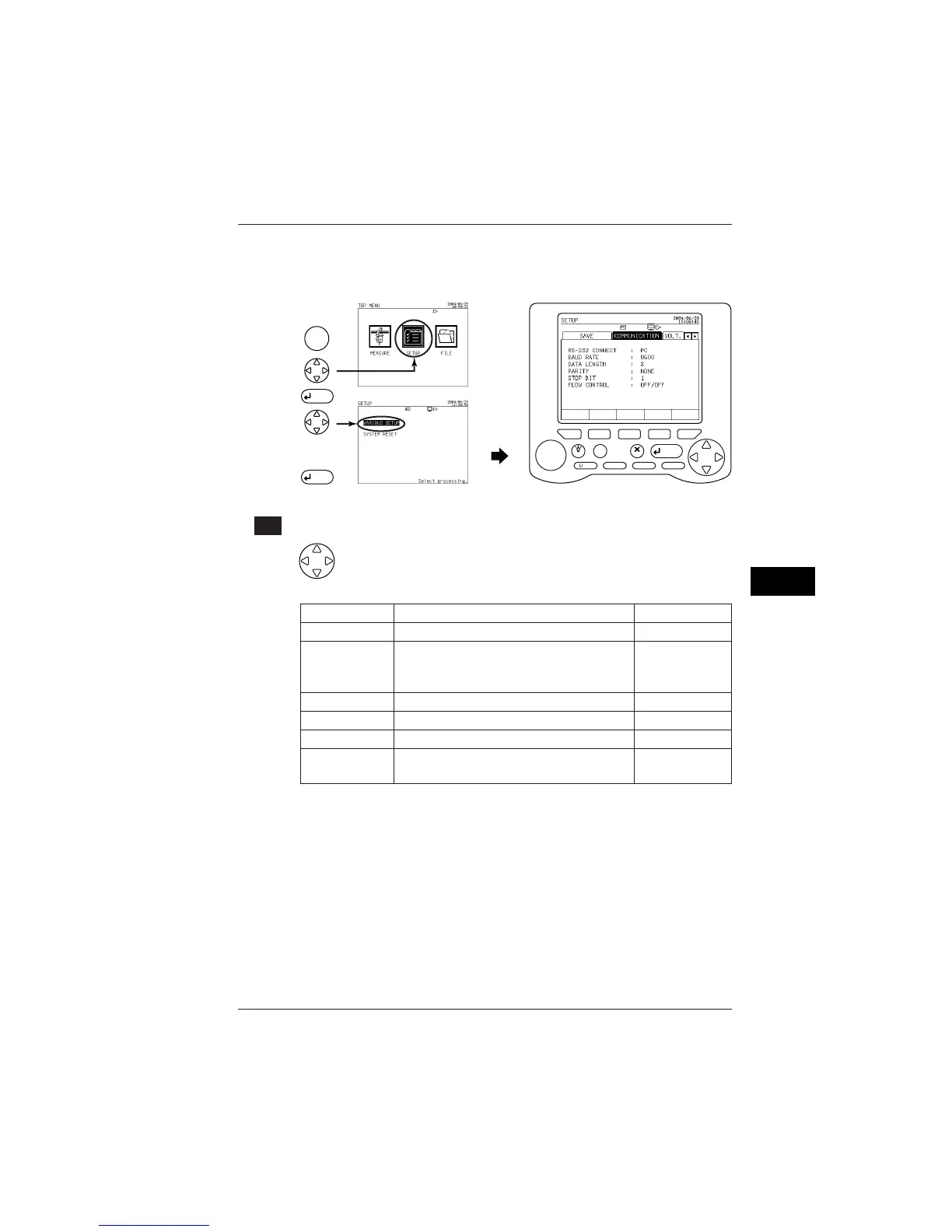

10.1 Description of the Communication Function
● CW240 Setup
To use the RS-232 function, you need to set up the CW240.
Setting is made in the Communication panel in the Setup screen.
TOP
MENU
ENTER
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
1 Displaying the Communication screen
Using the right and left direction cursor key, select the
Communication tab (highlighted).
Item Setting Default
RS-232 CONNECT <1> PRINTER <2> PC
<1> 7 <2> 8
<1> EVEN <2> ODD <3> NONE NONE
<1> 1 <2> 2
<1> OFF/OFF <2> XON/XON
<3> XON/RS <4> CS/RS OFF/OFF
PC
BAUD RATE
DATA LENGTH 8
PARITY NONE
STOP BIT 1
FLOW CONTROL OFF/OFF
38400 bps 4800 bps
19200 2400
9600 1200
9600 bps
SEE ALSO
For more information on the setting procedure, see the following:
Chapter 6, Configuring Settings
Section 6.6, Communication Settings
To Next Page
