YOKOGAWA CW240

17-19
IM CW240E

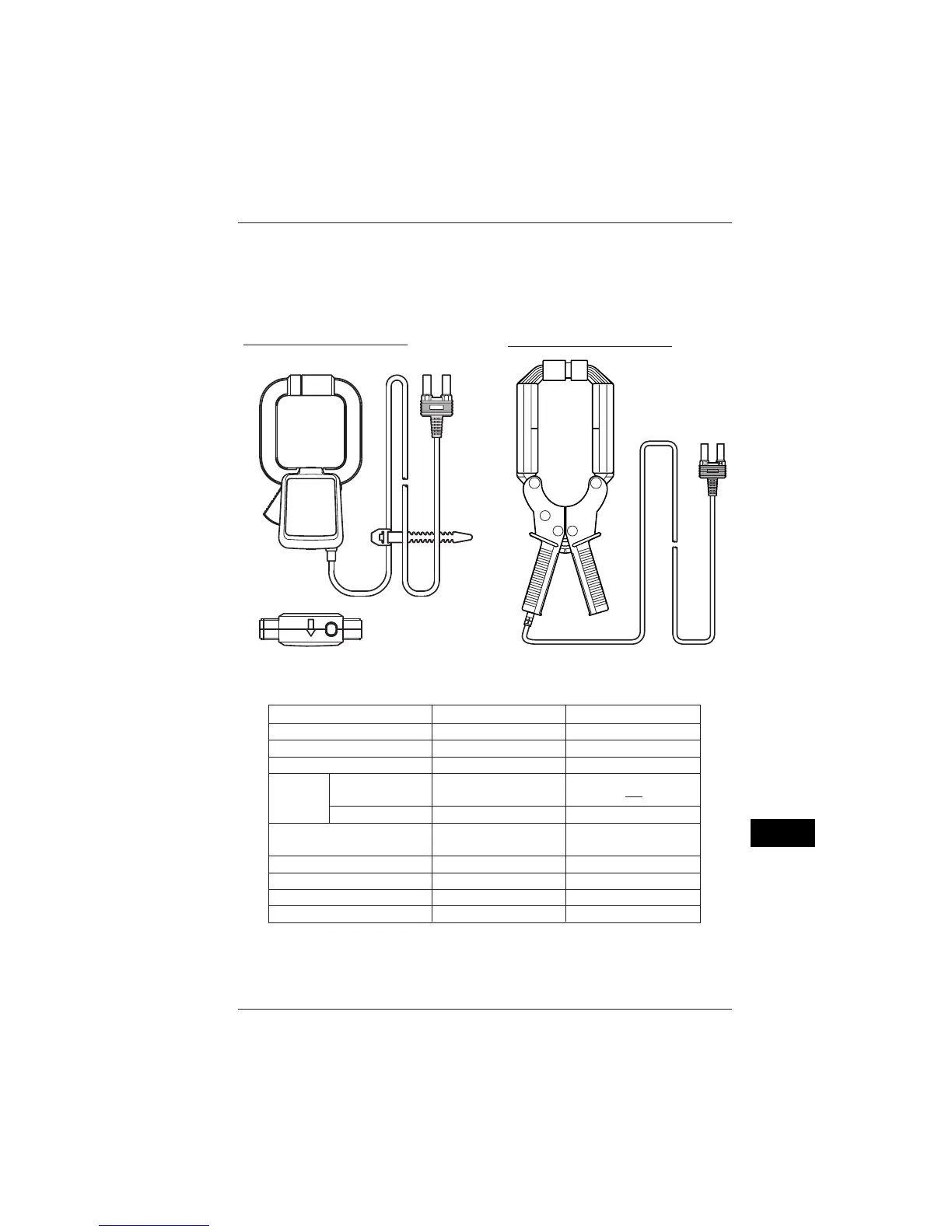

CW 240 Specifications
17
Dimensions of Model 96032
Dimensions of Model 96034
96032
ø 65mm max.
0-700A AC
0-500mV AC
±1.0% of rdg. ±0.2mV
(45 to 66 Hz)
Within ±1.0°
1000A AC (5 minutes)
(45 Hz to 66 Hz)
45 Hz to 66 Hz
600V AC
Approx.100mm×172.5mm×32mm
Approx.500g
96034
65×100mm max.
0-1000/2000/3000A AC
0-500mV AC
±1.0% of rdg.
Within ±1.0°
2400A AC
3600A AC (10 minutes)
30 Hz to 1.5 kHz
600V AC
Approx.120mm×310mm×48mm
Approx.1,390g
Measurable conductor diameter
Measurement range
Output voltage
Amplitude
Accuracy
*1)
Phase
Maximum allowable current
*1)
Frequency range
Maximum applicable circuit voltage
External dimensions (W)×(H)×(D)
Weight
*1) Varies depending on the input level and frequency. For detailed specififications, refer to the
Users Manual that comes with the clamp-on power meter.
Item
17.2 Specifications of Current Clamps
