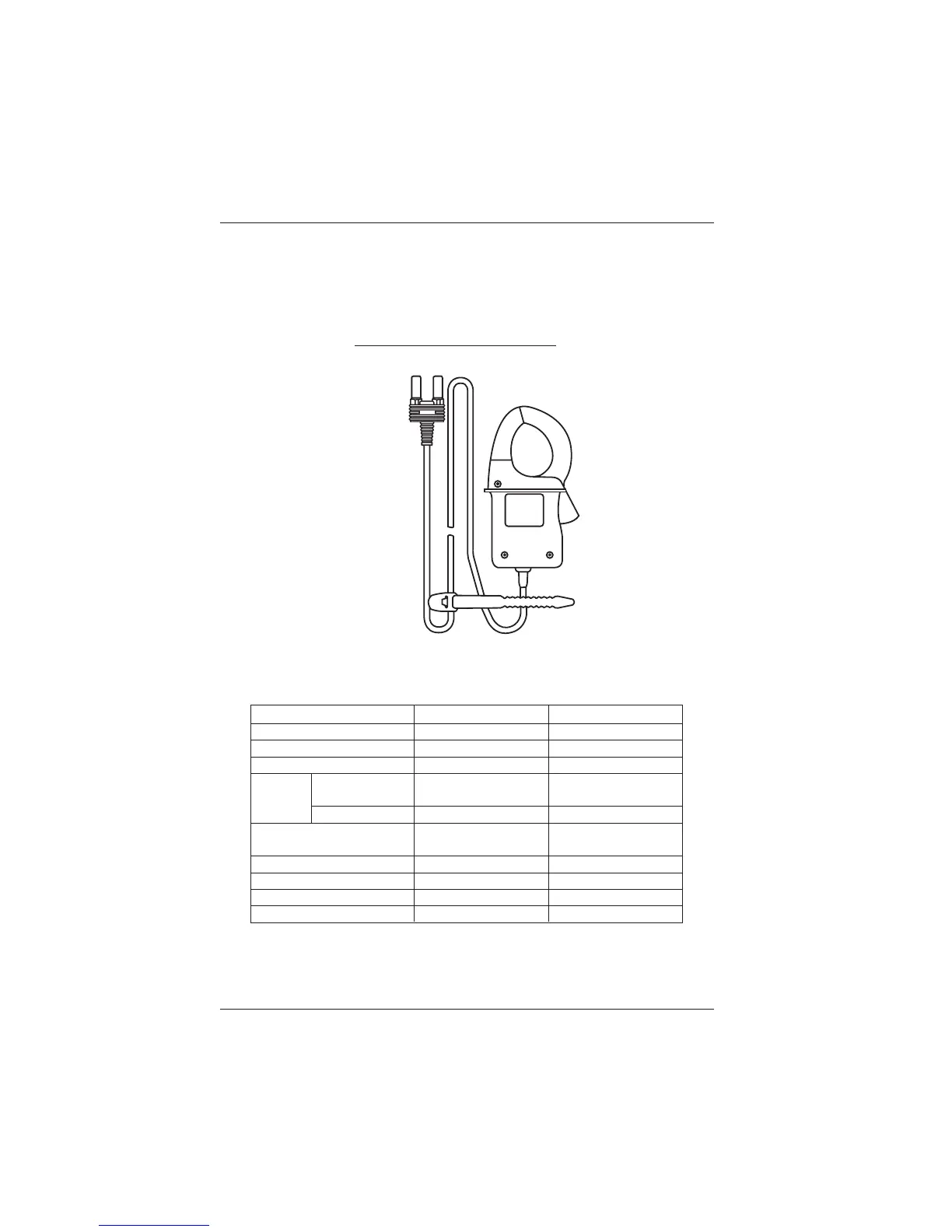

Dimensions of Model 96030/96031
96030
ø 30mm max.
0-200A AC
0-500mV AC
±0.5% of rdg. ±0.1mV
(45 to 66 Hz)
Within ±0.5°
250A AC
(45 Hz to 1 kHz)
20 Hz to 20 kHz
600V AC
Approx.73mm×130mm×30mm
Approx.300g
96031
ø 30mm max.
0-500A AC
0-500mV AC
±0.5% of rdg. ±0.1mV
(45 to 66 Hz)
Within ±1.0°
625A AC
(45 Hz to 400Hz)
20 Hz to 5 kHz
600V AC
Approx.73mm×130mm×30mm
Approx.300g
Measurable conductor diameter
Measurement range
Output voltage
Amplitude
Accuracy
*1)
Phase
Maximum allowable current
*1)
Frequency range
Maximum applicable circuit voltage
External dimensions (W)×(H)×(D)
Weight
*1) Varies depending on the input level and frequency. For detailed specififications, refer to the
Users Manual that comes with the clamp-on power meter.
Item
17.2 Specifications of Current Clamps
