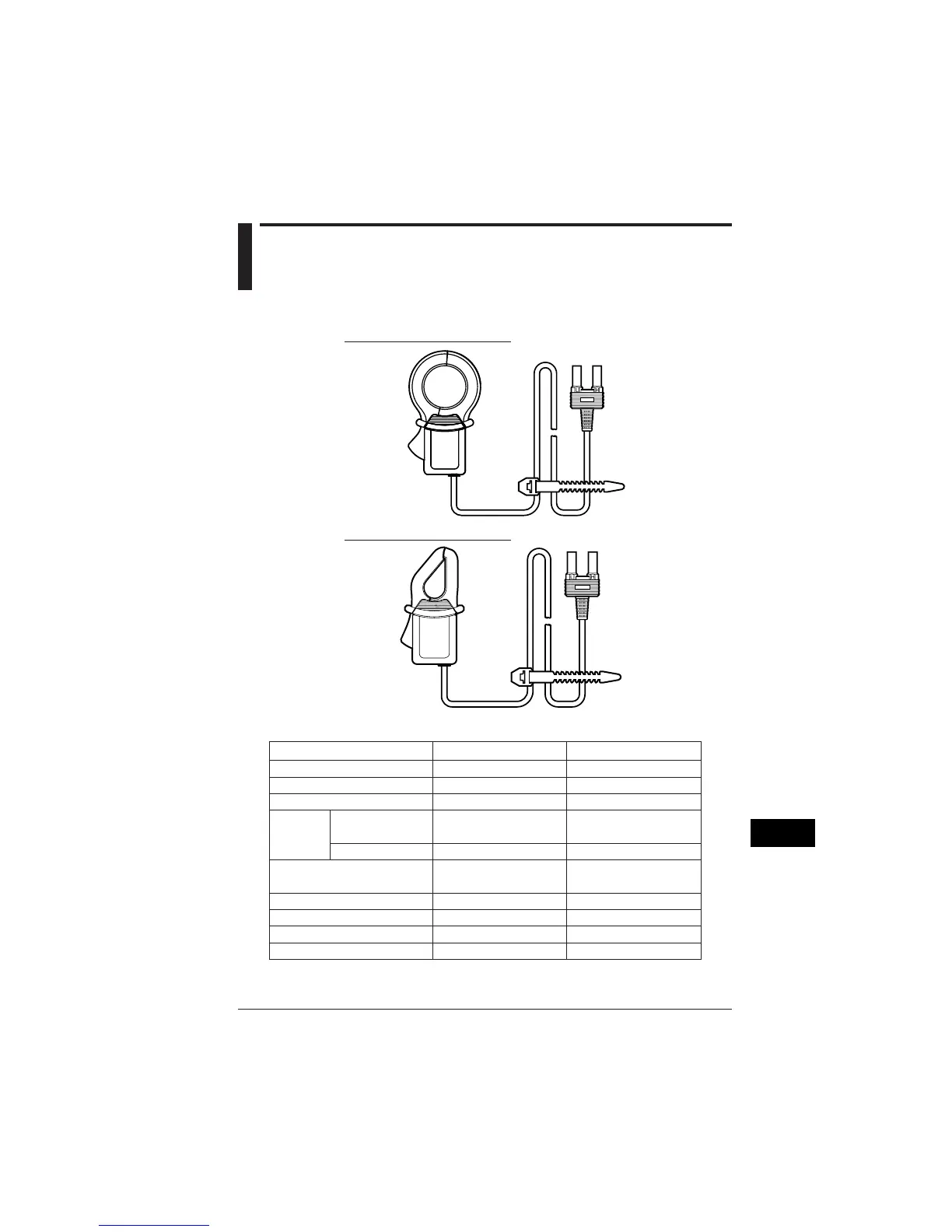

CW 240 Specifications
17
17.2 Specifications of Current
Clamps (Clamp-on Probe)
Dimensions of Model 96036
Dimensions of Model 96033
96036
ø 40mm max.
0-2A AC
0-50mV AC
±0.5% of rdg. ±0.01mV
(45 to 66 Hz)
Within ±2.0°
20A AC
(45 Hz to 3.5 kHz)
20 Hz to 5 kHz
50V AC
Approx.70mm×120mm×25mm
Approx.300g
96033
ø 18mm max.
0-50A AC
0-500mV AC
±0.5% of rdg. ±0.1mV
(45 to 66 Hz)
Within ±1.0°
130A AC
(45 Hz to 1 kHz)
20 Hz to 20 kHz
300V AC
Approx.52mm×106mm×25mm
Approx.220g
Measurable conductor diameter
Measurement range
Output voltage
Amplitude
Accuracy
*1)
Phase
Maximum allowable current
*1)
Frequency range
Maximum applicable circuit voltage
External dimensions (W)×(H)×(D)
Weight
*1) Varies depending on the input level and frequency. For detailed specififications, refer to the
Users Manual that comes with the clamp-on power meter.
