4.5.7 Single-phase Three-wire Three-current (1P3W3I)
<Measurement of neutral line current>

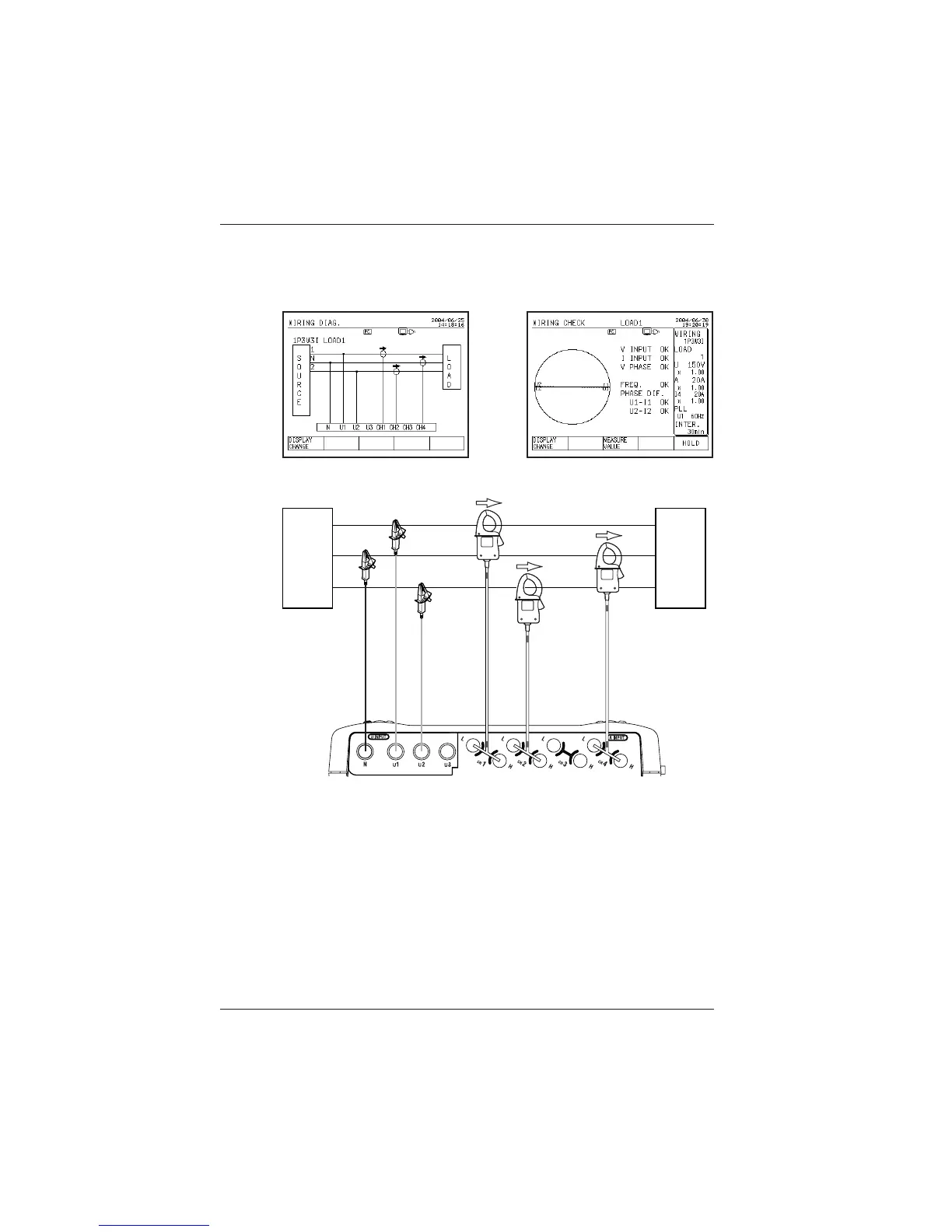

● WIRING DIAGRAM Screen ● WIRING CHECK Screen
● Actual Wiring
N
I
N
I
22
Black Red Yellow
Power
supply
Load
SEE ALSO
For more information on wiring checks, see Section 4.7, Checking Wiring.
4.5 Carrying out Wiring
