YOKOGAWA CW240

4-13
IM CW240E
Wiring
4
4.5 Carrying out Wiring
4.5.6 Single-phase Three-wire / Two Loads (1P3W)
The CW240 can simultaneously measure multiple loads of the same power
supply (voltage shared).

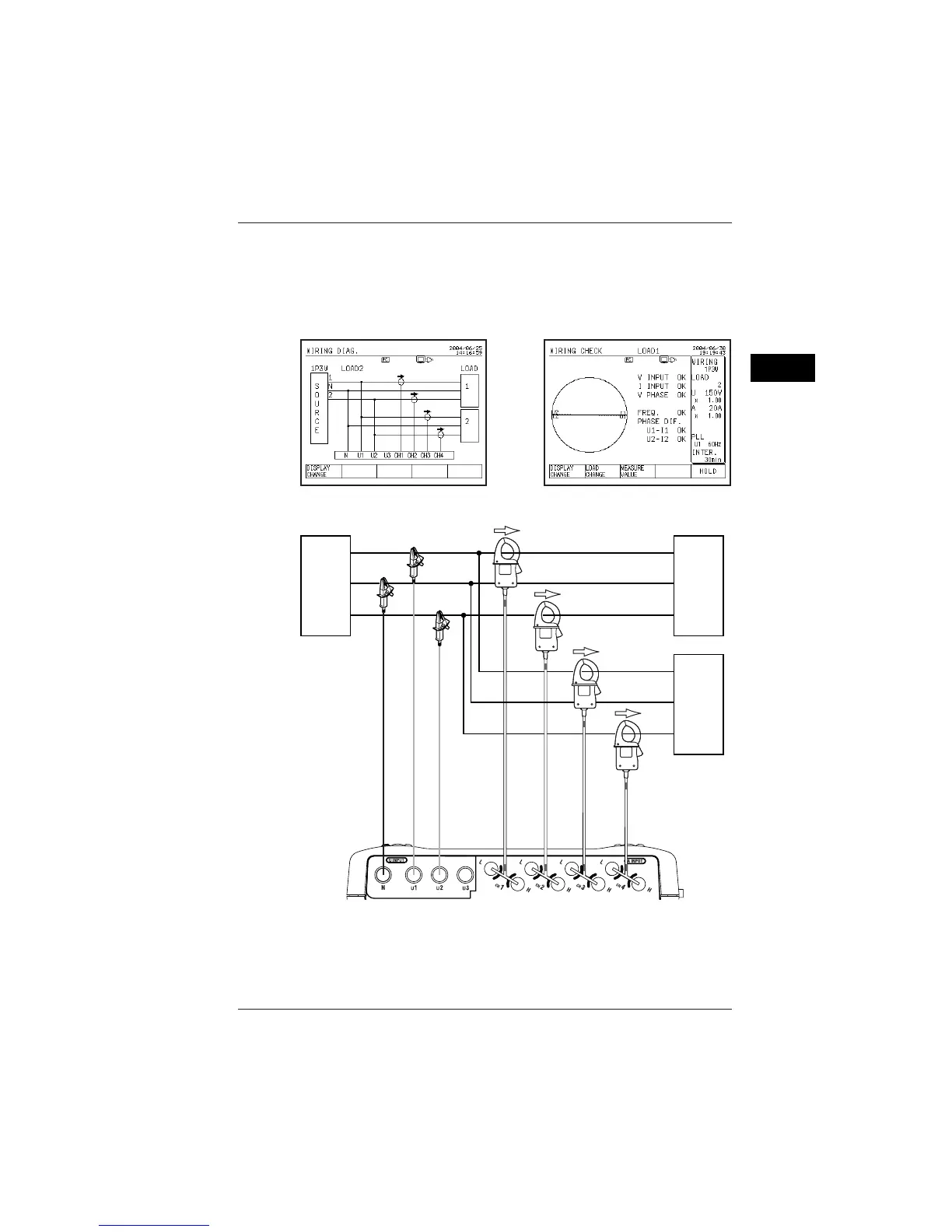

● WIRING DIAGRAM Screen ● WIRING CHECK Screen
● Actual Wiring
N
I
N
I
22
N
I
2
Power
supply
Load
1
Load
2
Black Red Yellow
SEE ALSO
For more information on wiring checks, see Section 4.7, Checking Wiring.
