YOKOGAWA DLM2000 Series Operation Guide

3-1
IM 710105-03E
Basic Operations
1
2
3
4
5
App
Index
Chapter 3 Basic Operations
3.1 Key and Jog Shuttle Operations
Key Operations

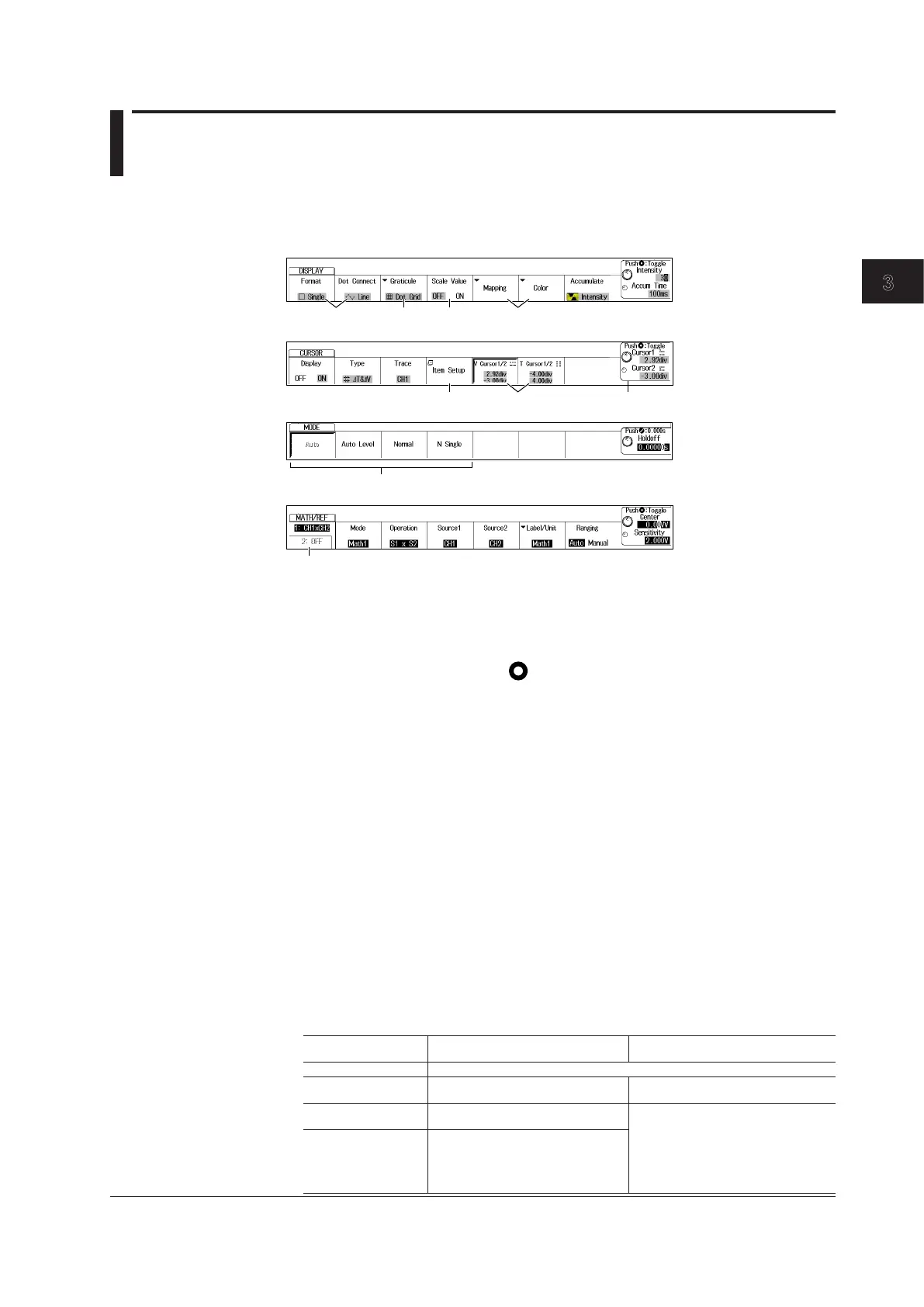

How to Use Setup Menus That Appear When Keys Are Pressed
The operation after you press a key varies depending on the key that you press.
DISPLAY menu
CURSOR menu
MODE menu
MATH/REF menu
A B C
D
Jog shuttle setting menu
E
G
F
B
A
: A selection menu appears when you press the soft key.
Press the soft key that corresponds to the appropriate setting.
B
: A related setup menu appears when you press the soft key.
C
: The selected setting switches each time you press the soft key.
D
: Displays a dialog box or a keyboard.
Use the jog shuttle and the SET ( ) key to set values.
E
: Pressing the soft key selects the item that you can control using the jog shuttle.
The jog shuttle setup menu, which appears at the right end of the setup menu, shows
the selected item. Use the SET key to move between digits and set the number.
F
: Pressing a key sets the item to the setting that corresponds to that key.
G
: Selects which item to configure when configuring a feature that consists of two items
that operate with different settings, such as the MATH1 and MATH2 computation
features.
How to Display the Setup Menus That Are Written in Purple below the
Keys
In the explanations in this manual, "SHIFT+key name (written in purple)" is used to
indicate the following operation.
1.
Press the
SHIFT key. The SHIFT key illuminates to indicate that the keys are
shifted.
Now you can select the setup menus written in purple below the keys.
2.
Press the key that you want to display the setup menu of.
ESC key operation
• If you press ESC when a setup menu or available options are displayed, the screen
returns to the menu level above the current one.
• If you press ESC when the highest level menu is shown, the display changes as
follows.
Operation of pressing
ESC
When measured values are
displayed
When measured values are not
displayed
1st time The setup menu disappears.
2nd time Measured values move outside the
waveform area.
The jog shuttle setting menu
disappears.
3rd time The jog shuttle setting menu
disappears.
Nothing changes from this point.
From this point, the display position
of measured values switches
between outside the waveform area
and inside the area each time you
press ESC.
