4.6 Printing and Saving the Waveform
This section explains how to print the displayed waveform on the built-in printer (/B5
option) and how to save measured data or a screen capture to a storage medium.
Printing a Screen Capture on the Built-in Printer
Follow the procedure below to print a screen capture of the waveform. Before you print,
follow the procedure in section 16.1 in the User' Manual (on the CD-ROM) to load roll
paper into the built-in printer.
1.
Press
SHIFT key, and then press PRINT (MENU) key.
2.
Press the
Print To soft key to set the destination to BuiltIn.
3.
Press the
Mode soft key to set the print format.
HardCopy: Prints a screen capture that includes the setup menu.
Normal: Prints a screen capture, excluding the setup menu.
Long: Prints a screen capture by magnifying it 2 to 10 times along the time axis.
4.
Press
PRINT (MENU) again.

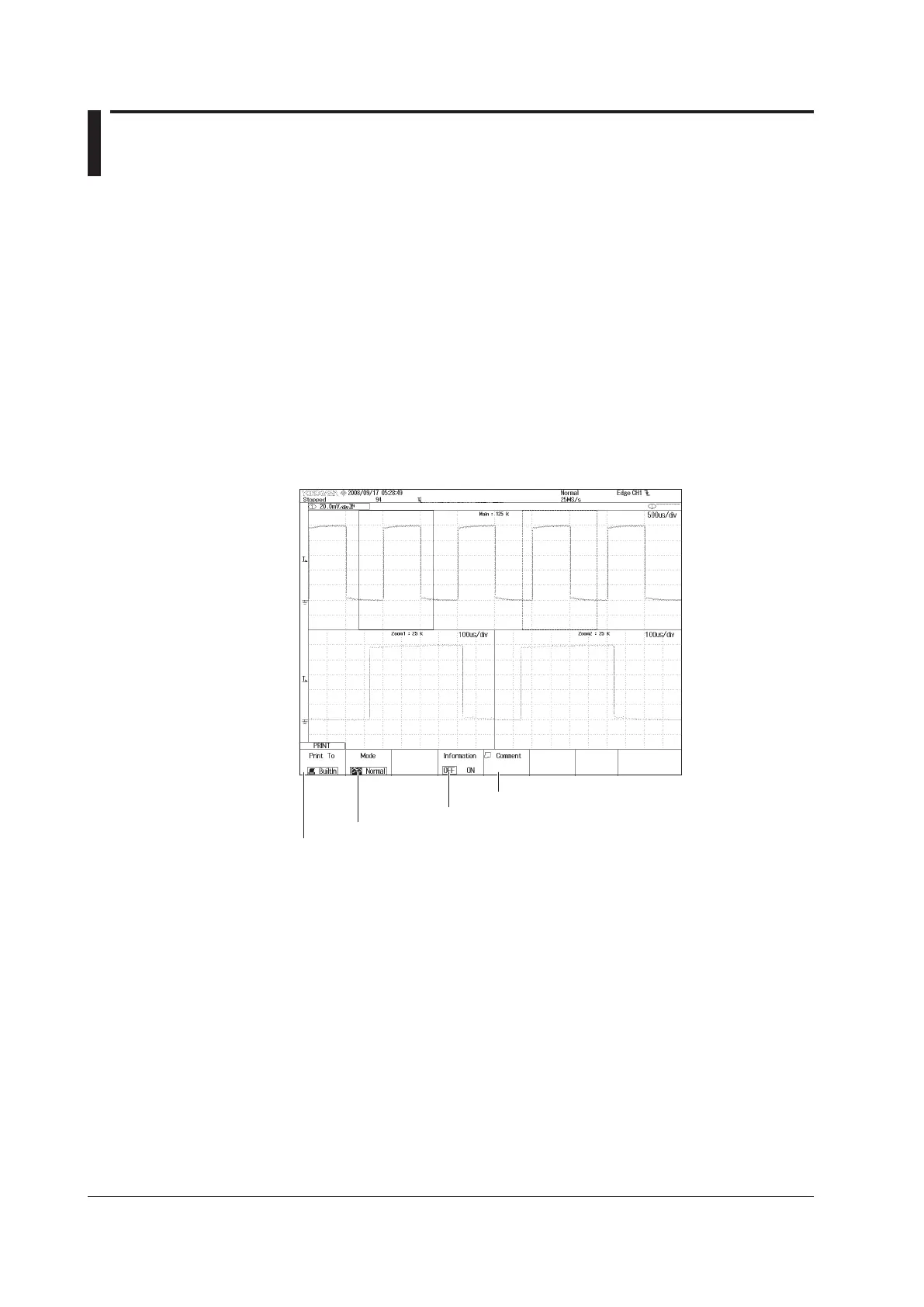

Set the print destination to BuiltIn
Set the print mode
Set comments
Turn the printing of additional information on or off
