1-7
Component Names and Functions
IM 710105-03E
1

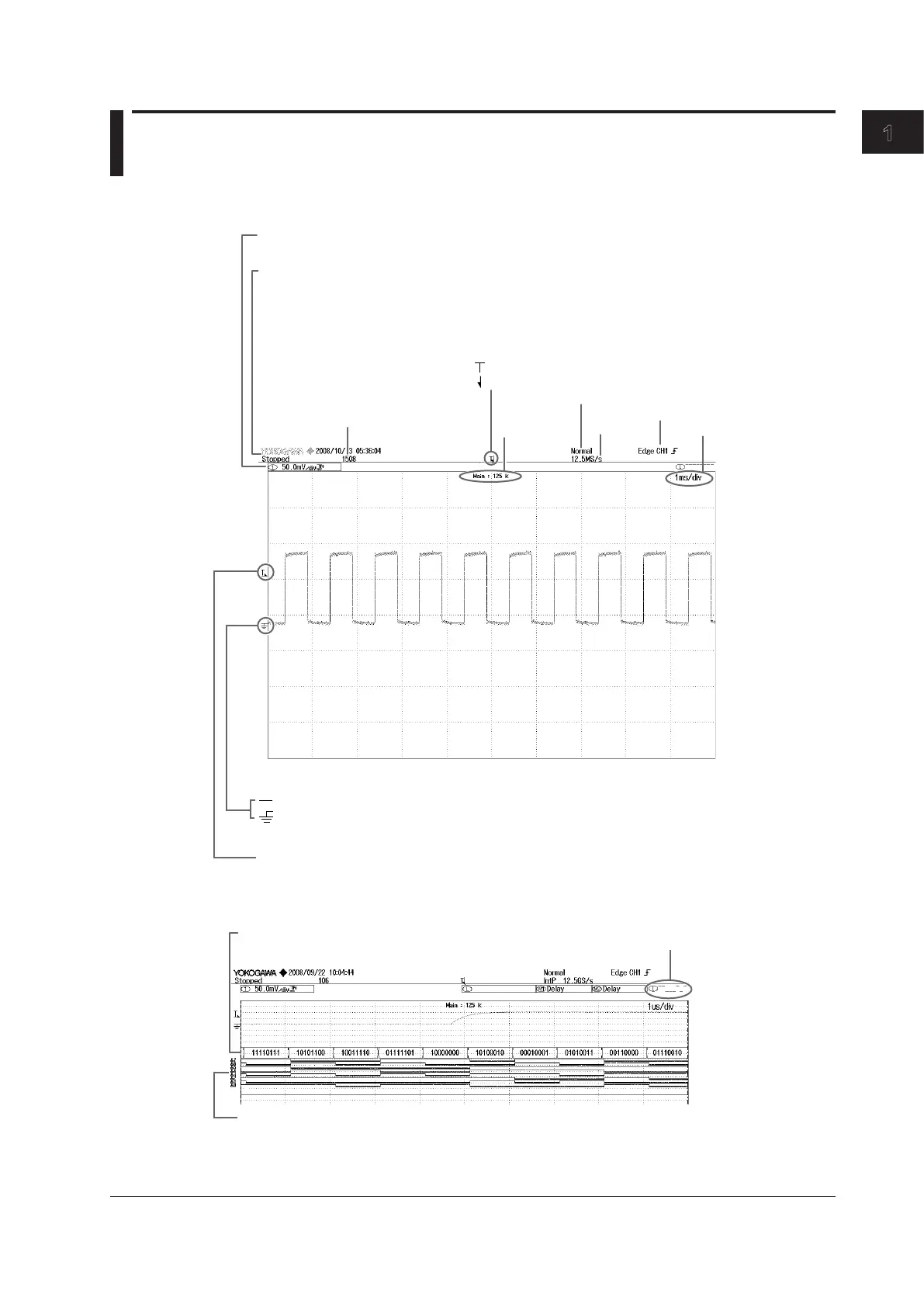

1.3 Screens
Normal Analog Signal Waveform Screen
Display
record length
Acquisition mode
Sample rate
Waveform acquisition state
Time/div
Number of waveform acquisitions
"Waiting for trig." blinks
when the DLM2000 is waiting
for a trigger
Trigger level mark
Ground level mark
The display is inverted when Invert is set to ON.
Vertical position mark
Channel information
Scale and input coupling settings
Trigger information
Trigger position
Trigger point
Stopped
Running
Preview: Displayed when changing the Scale,
Time/div, and othersettings while
waveform acquisition is stopped.
Logic Signal Waveform Screen (On 4-channel models)
Bit waveforms
Displays waveforms according to the bit
Bus display (bundle)
Displays bits 0 to 7 in binary or hexadecimal
Bit information
Displays each bit state (high or
low)
To Next Page
