YOKOGAWA DLM2000 Series Operation Guide

4-10
IM 710105-03E
Saving Measured Data to a Storage Medium
Follow the procedure below to save waveform data displayed on the screen to a storage
medium. The vertical, horizontal, and trigger settings for the waveform are also saved in
this process.
1.
Press
File key.
2.
Press the
Waveform soft key under Save.
3.
Press the
File List soft key to set the storage destination medium and folder.
4.
Press the
File Name soft key to set the save destination file name. If you do not
set the file name, a sequence number is used for the file name.
5.
Press the
Data Type soft key to set the data format. The data type that the
DLM2000 can load is binary.
6.
Press the
Trace soft key to set the waveform you want to save.
7.
Press the
History soft key to set which range of history waveforms to save.
8.
Press the
Range/Compression soft key to set the window to be saved and data
compression.
9.
Press the
Save Waveform soft key to save the waveform.

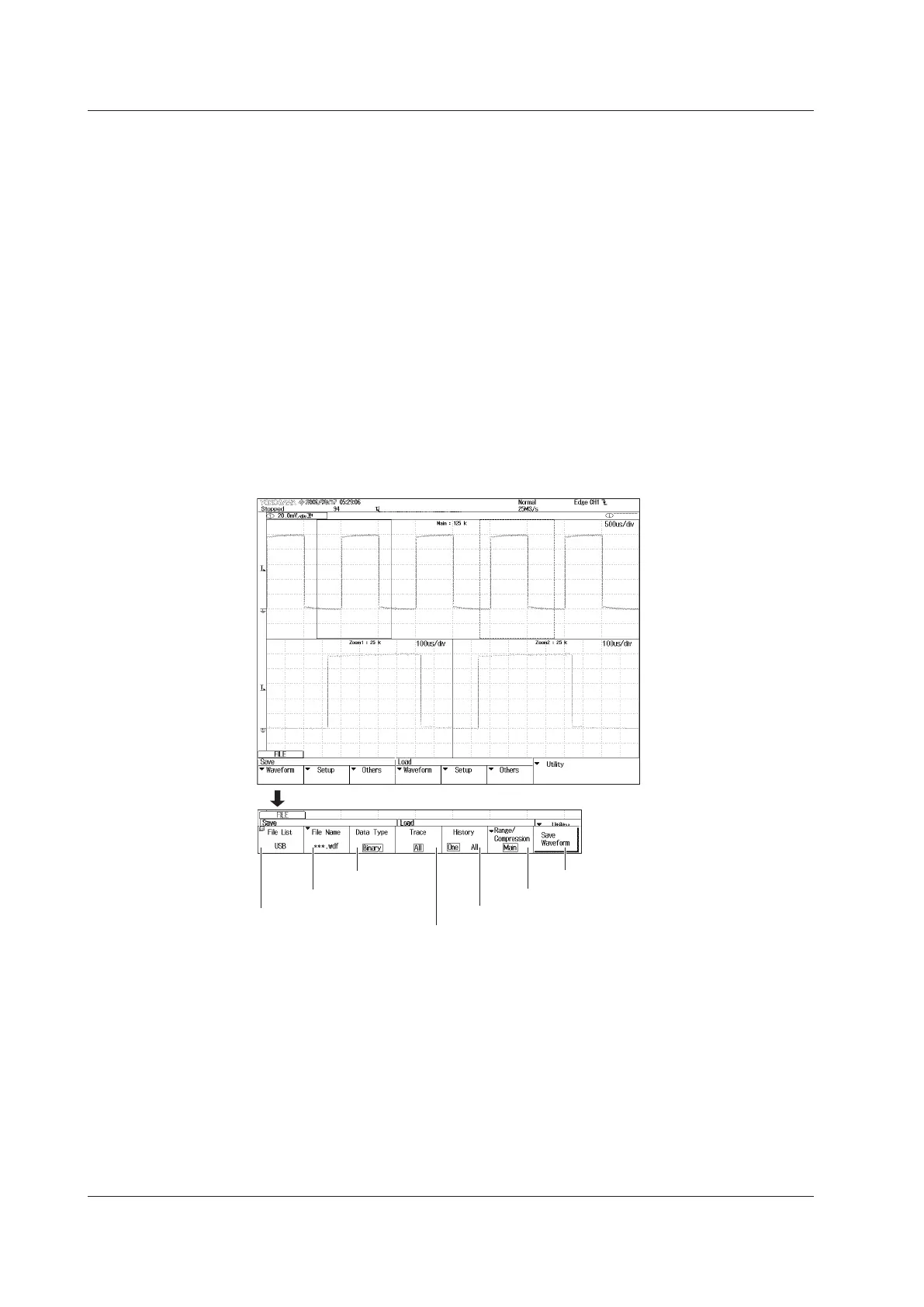

Set the save destination
Execute the save operation
Set the data format
Set the waveform to save
Set the history range
Set the window to be saved and data compression
Set the file name
4.6 Printing and Saving the Waveform
