App-26 IM 04L20A01-01E
#3 Trend/Save interval, User key
Parameter Selectable Range or Selections Initial Value
Trend/Save interval > Time/div 1 min, 2 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 2 h, 1 min
4 h, or 10 h
Trend/Save interval > Auto save interval 10 minutes to 31 days 1 h
USER key > Action None, Trigger, AlarmACK, MathStart/Stop, MathReset, AlarmACK
ManualSample, Message1 - Message8, Snapshot, or Media
#4 Message
Parameter Selectable Range or Selections Initial Value
Message > Characters No. 1 to No. 8 Up to 16 alphanumeric characters –

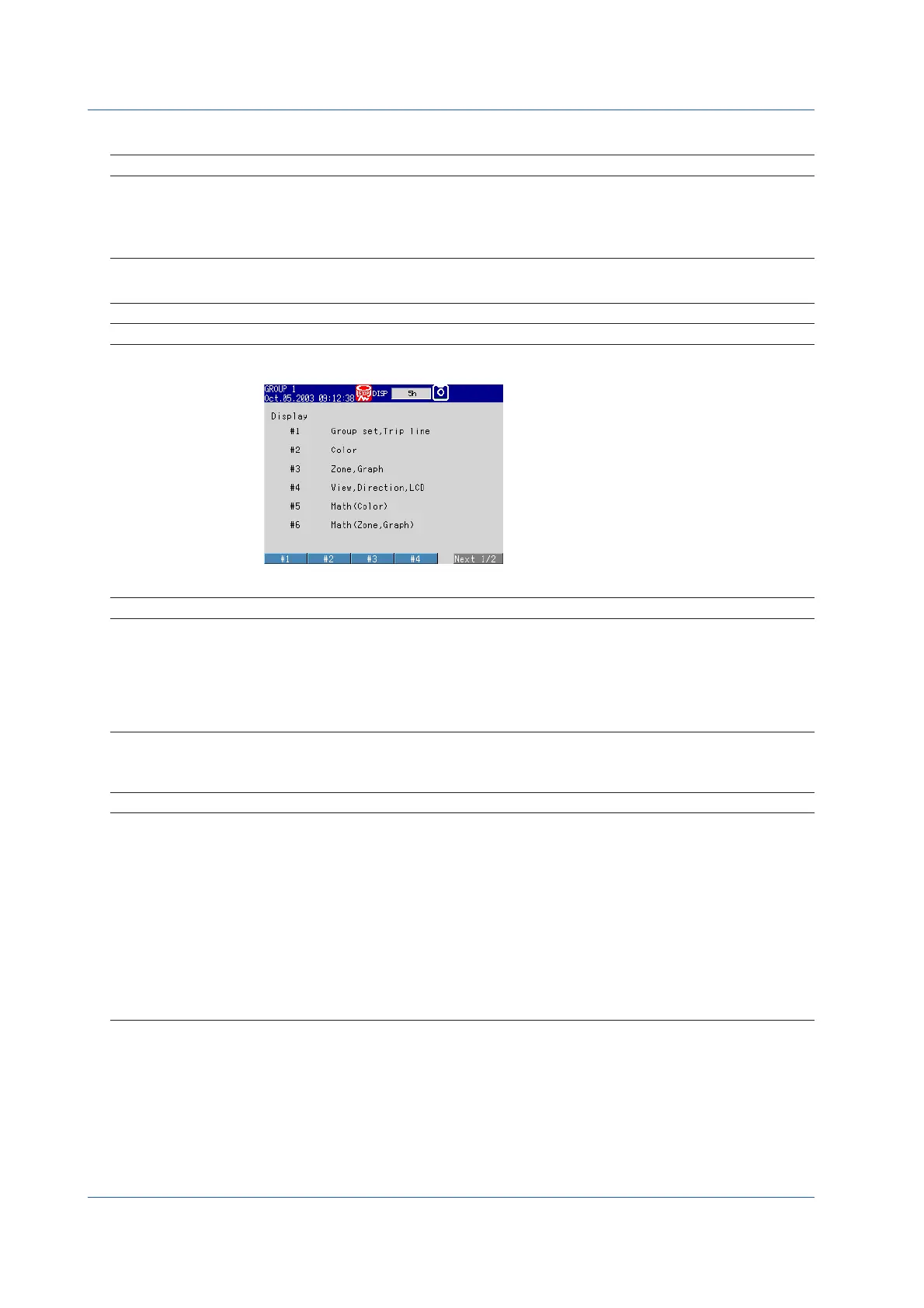

#5 Display
<#1 Group set, Trip line>
Parameter Selectable Range or Selections Initial Value
Group number 1 to 4 1
Group set > Group name Up to 16 alphanumeric characters GROUP 1
Group set > CH set 01 to 12, 31 to 42 (computation channels
1
) 01-03, 01-06, or 07-12
Group set > Trip line > No. 1 to No. 4 On/Off Off
Group set > Trip line > Position 0% to 100% 100%
Group set > Trip line > Color Red, green, blue, blue violet, brown, orange, yellow-green, light blue, No.1: Red, No.2: Green,
violet, gray, lime, cyan, dark blue, yellow, light gray, or purple No.3: Blue, No.4: Yellow
1
/M1 or /PM1 option
<#2 Color>
Parameter Selectable Range or Selections Initial Value
Color > CH1 Red, green, blue, blue violet, brown, orange, yellow-green, light blue, Red
violet, gray, lime, cyan, dark blue, yellow, light gray, or purple
Color > CH2 Same as above Green
Color > CH3 Same as above Blue
Color > CH4 Same as above Blue-violet
Color > CH5 Same as above Brown
Color > CH6 Same as above Orange
Color > CH7 Same as above yellow-green
Color > CH8 Same as above light blue
Color > CH9 Same as above violet
Color > CH10 Same as above gray
Color > CH11 Same as above lime
Color > CH12 Same as above cyan
Appendix 6 List of Parameters
