YOKOGAWA ROTAMASS Total Insight User Manual

Wiring
Quick Reference Instruction Manual for Spare
Sensor replacement
IM01U10A01-00EN-R, 1
st
edition, 2019-12-09
25 / 76
green
red
blue
white
yellow
brown
drain wire

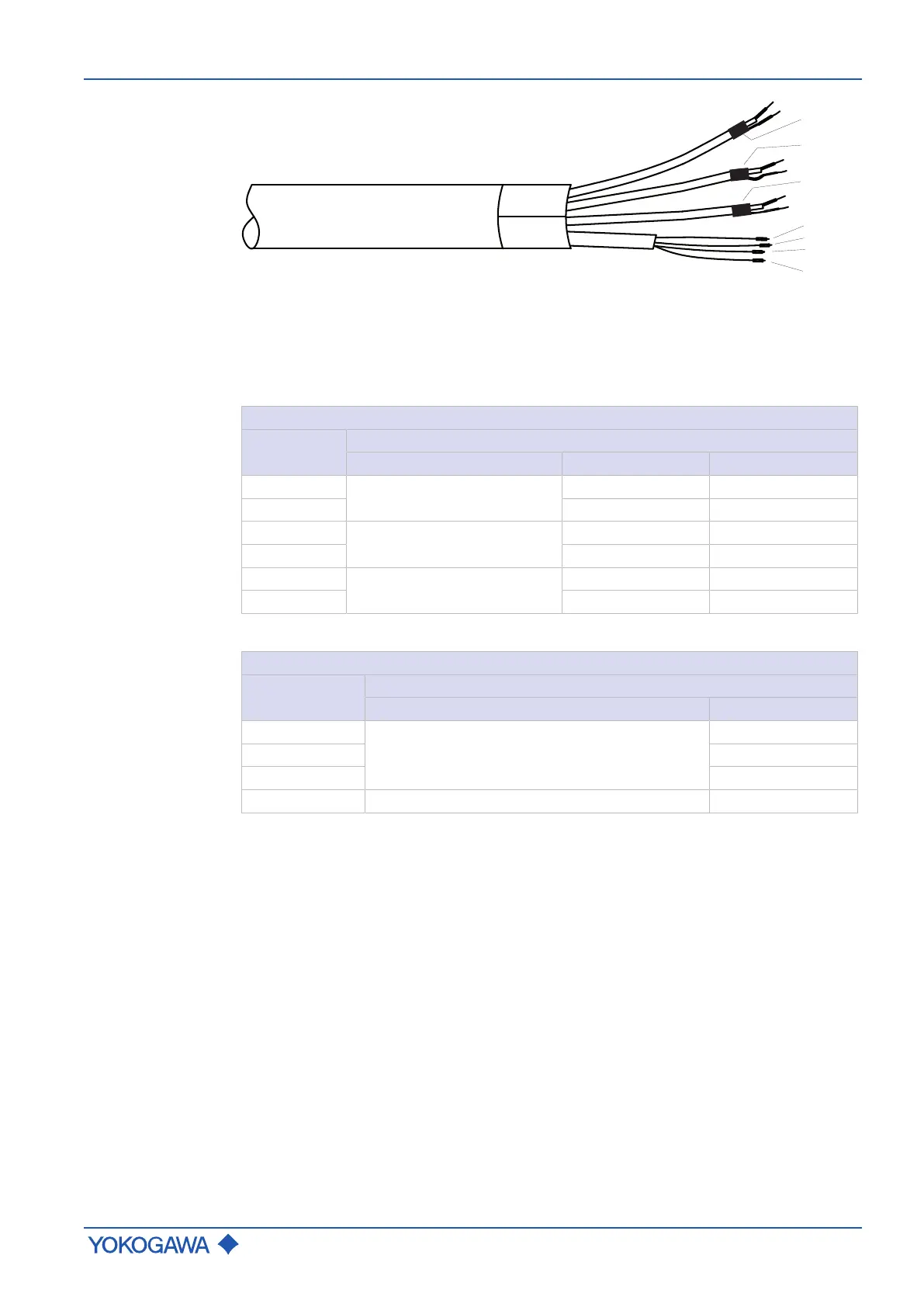

Fig.15: Terminated standard connecting cable L␣␣␣, transmitter side
Connection scheme of standard connecting cable option L␣␣␣
Tab.2: Version coaxial wire
Standard connecting cable option L
␣␣␣
Signal Coaxial wire
Coaxial wire pair colour Wire type Wire colour
D+
green
Core wire transparent
D- Shield black
S1+
red
Core wire transparent
S1- Shield black
S2+
blue
Core wire transparent
S2- Shield black
Tab.3: Version single wire
Standard connecting cable option L
␣␣␣
Signal Single wire
Wire type Wire colour
TP1
Conductor
white
brownTP2
TP3 yellow
COM
1)
Drain wire
1)
–
1)
Present only at transmitter side
