Quick Reference Instruction Manual for Spare
Transmitter replacement
Installation of the Spare transmitter
34 / 76
IM01U10A01-00EN-R, 1
st
edition, 2019-12-09

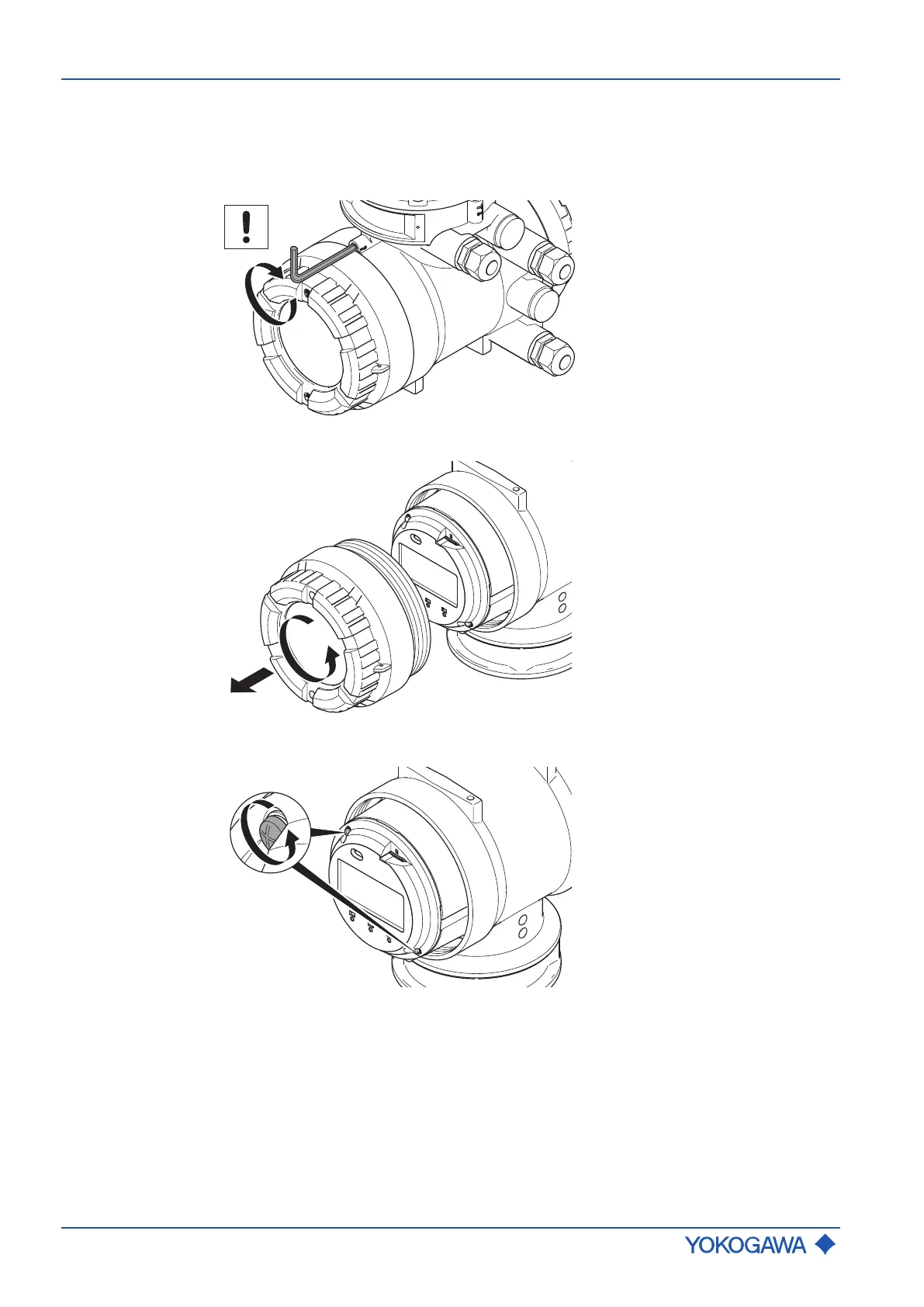

1. Switch off power supply.
2. Using an Allen wrench (size: 3.0), turn the locking screw on display screw plug clock-
wise to remove.
3. Unscrew display cover from transmitter housing.
4. Remove the two screws from the display.
To Next Page
