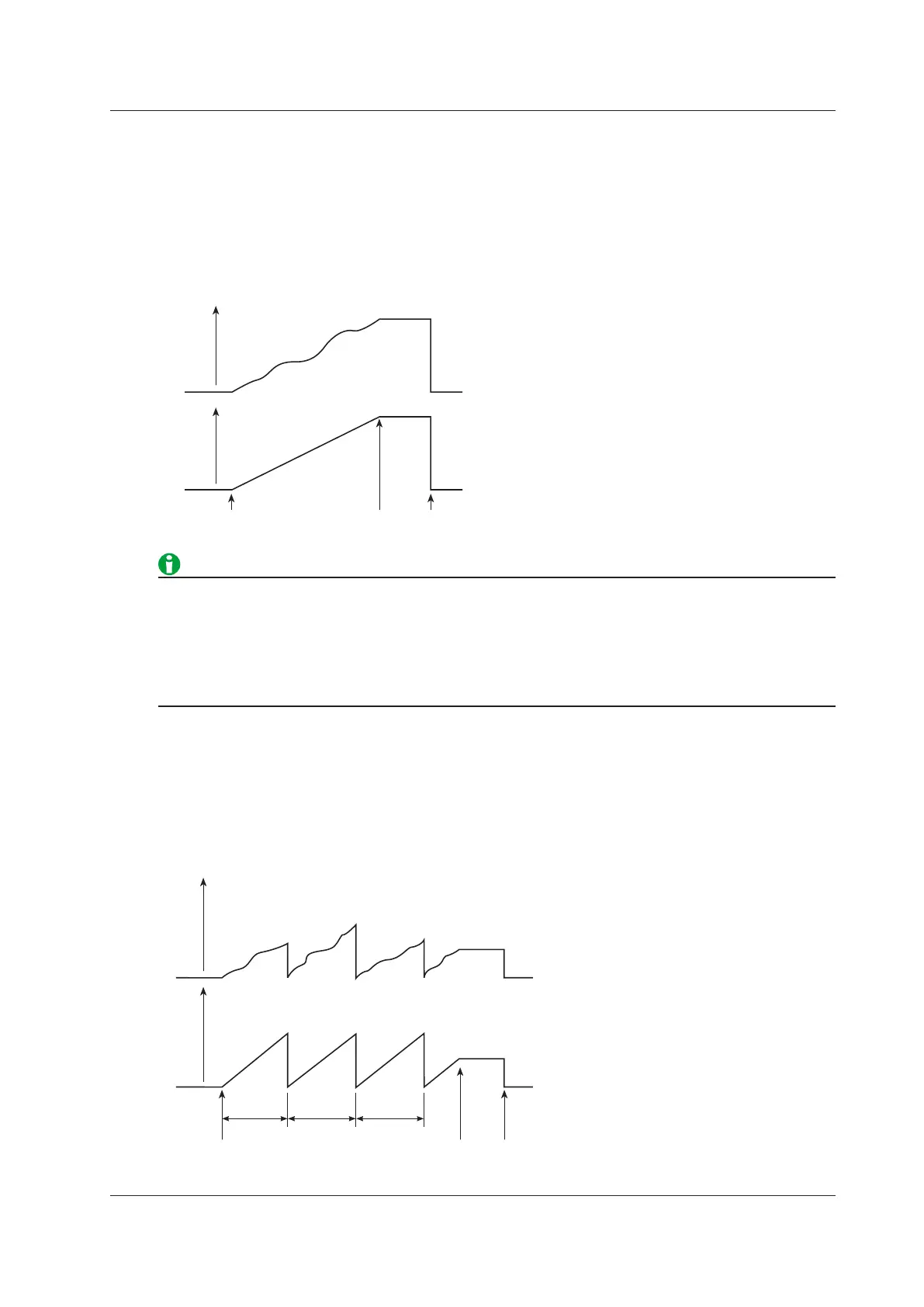

Real-Time Normal Integration Mode (R–Normal)
Set the date and time when integration starts and stops and the duration of integration. Integration starts at the
scheduled start time. When one of the conditions below is met, integration is stopped, and the integration time
and integrated value are held.
•
The scheduled stop time is reached.
• The specified timer time elapses.
• The integration time reaches the maximum integration time (10000 hours).
• The integrated value reaches its maximum or minimum displayable value.
Hold
Hold
Start
date and time
Stop
date and time
Reset
Integration
time
Integrated
value
In real-time integration mode, when you set the integration time to 00000:00:00, integration starts at the
scheduled start time. When one of the conditions below is met, integration is stopped, and the integration time
and integrated value are held.
•
The scheduled stop time is reached.
•
The integration time reaches the maximum integration time (10000 hours).
• The integrated value reaches its maximum or minimum displayable value.
Real-Time Continuous Integration Mode (Continuous integration; R-Continuous)
Set the date and time when integration starts and stops and the duration of integration. Integration starts at the
scheduled start time. When the specified timer time elapses, integration is automatically reset and restarted. If
either of the conditions below is met, integration is stopped, and the integration time and integrated value are
held.
•
The scheduled stop time is reached.
•
The integrated value reaches its maximum or minimum displayable value.
Hold
Hold
Start
date and time
Stop
date and time
Reset
Integration time
Integrated value
Timer
value
Timer
value
Timer
value
