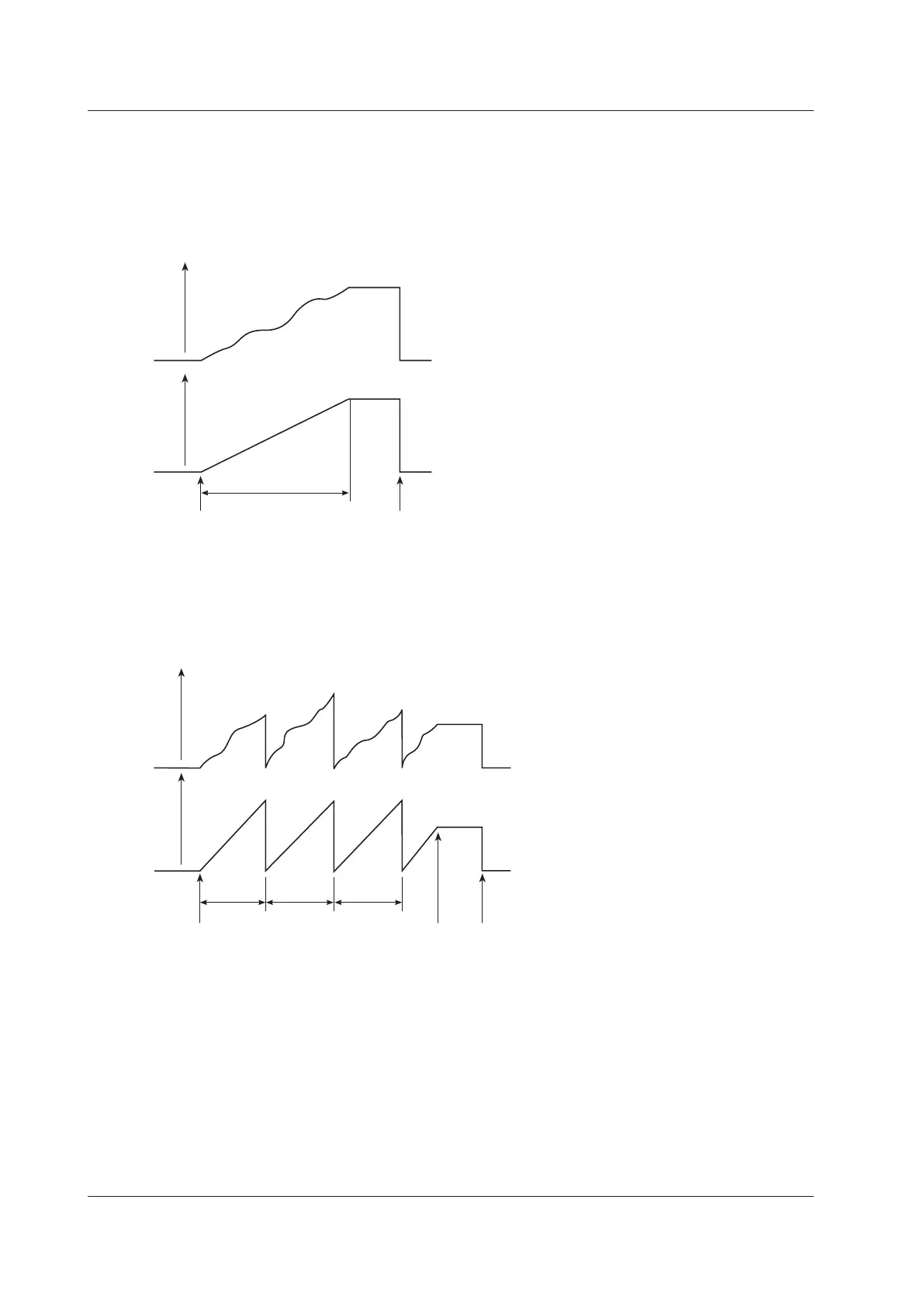

Normal Integration Mode (Normal)
You can set a relative integration time (set a timer). Integration starts when you press Start. When one of the
conditions below is met, integration is stopped, and the integration time and integrated value are held.
•
The specified timer time elapses.
•
The Stop soft key is pressed.
• The integrated value reaches its maximum or minimum displayable value.
ResetStart
Hold
Hold
Timer value
Integration time
Integrated value
Continuous Integration Mode (Continuous integration; Continuous)
You can set a relative integration time. Integration starts when you press Start. When the specified timer time
elapses, integration is automatically reset and restarted. Integration repeats until you press Stop. However, if the
integrated value reaches its maximum or minimum displayable value before the specified amount of time has
elapsed, integration is stopped, and the integration time and integrated value at that point are held.
Start Reset
Hold
Hold
Timer
value
Timer
value
Timer
value
Stop
Integration time
Integrated value
