YOKOGAWA ZR402G User Manual

  <2.Specications>
2-19
IM 11M12A01-04E 11th Edition : Jul. 19, 2017-00
Part No. Description
K9292DN Joint: Rc 1/4, Material: SUS304 (JIS)
K9292DS Joint: 1/4 NPT (F), Material: SUS304 (JIS)
K9292DN : Rc 1/4(A),R 1/4(B)
K9292DS : 1/4FNPT(A),1/4NPT(Male)(B)

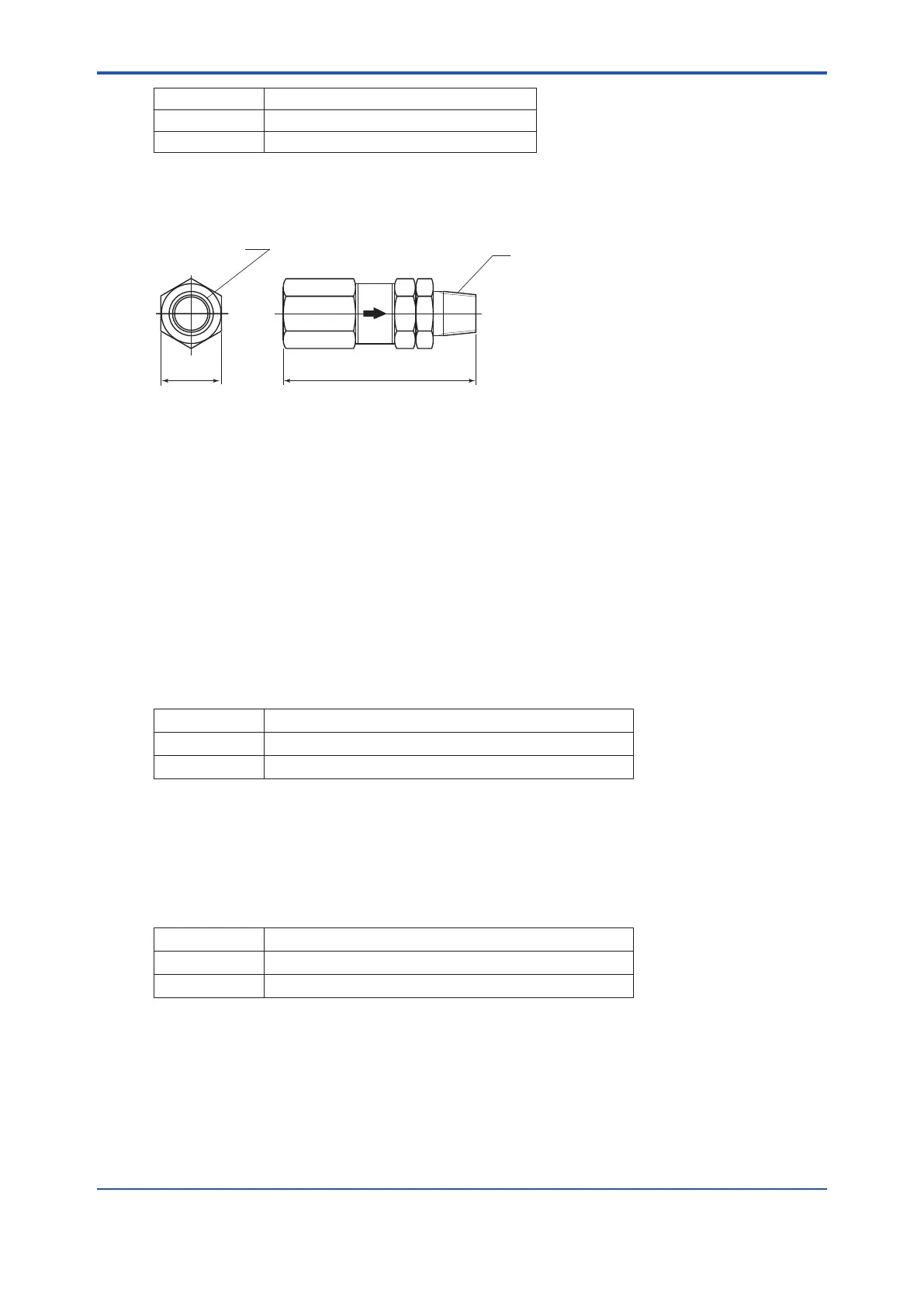

F30.EPS
Approx. 19 Approx. 54
Unit: mm
A
B
2.4.5 Air Set
This set is used to lower the pressure when instrument air is used as the reference and span
gases.
l Standard Specications
Part no. G7003XF or K9473XK
Primary Pressure: Max. 1 MPa G
Secondary Pressure: 0.02 to 0.2 MPa G
Connection: Rc1/4 or 1/4NPT (F) with joint adapter
Weight: Approx.1 kg
Part No. Description
G7003XF Joint: Rc1/4, Material: Zinc alloy
K9473XK Joint: 1/4 NPT (F), Material: Zinc alloy with adapter
Part. no. G7004XF or K9473XG
Primary Pressure: Max. 1 MPa G
Secondary Pressure: 0.02 to 0.5 MPa G
Connection: Rc1/4 or 1/4NPT (F) with joint adapter
Weight: Approx. 1 kg
Part No. Description
G7004XF Joint: Rc1/4, Material: Zinc alloy
K9473XG Joint: 1/4 NPT (F), Material: Zinc alloy with adapter
