YOKOGAWA ZR402G User Manual

  <2.Specications>
2-21
IM 11M12A01-04E 11th Edition : Jul. 19, 2017-00

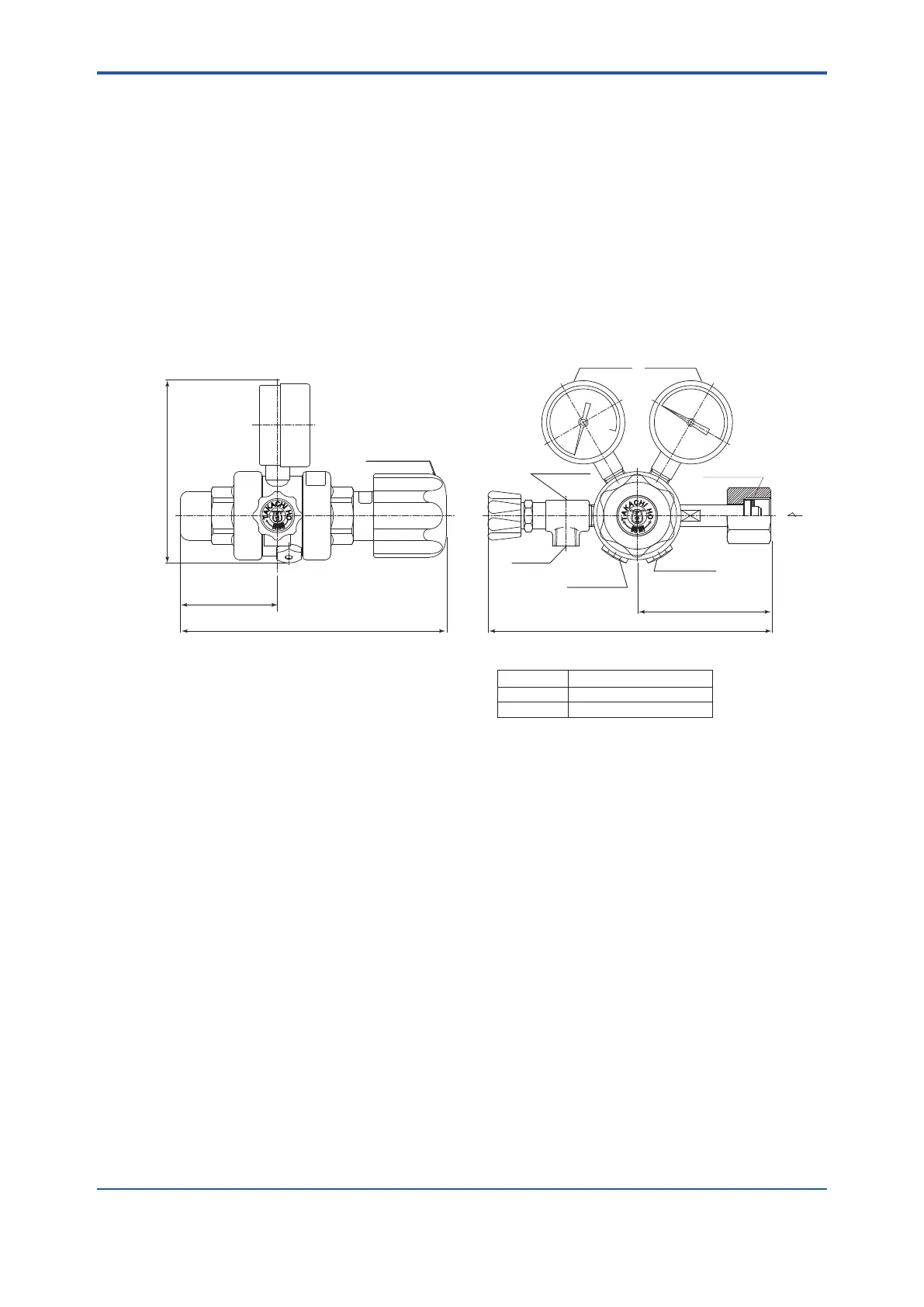

2.4.7 Pressure Regulator (G7013XF or G7014XF) for Gas
Cylinder
This regulator valve is used with the zero gas cylinders.
l Standard Specications
Primary Pressure: Max. 14.8 MPa G
Secondary Pressure: 0 to 0.4 MPa G
Connection: Inlet; W22 14 threads, right hand screw
Outlet; Rc1/4 or 1/4NPT (Female)
Material: Brass body
H
I
H
A
C
A
K
T
O
Regulator handle
W22 (Right-
handed screw)
Stop valve
Approx.112
IN
Unit : mm
* Outlet
Part No.
G7013XF
G7014XF
* Outlet
Rc1/4
1/4 NPT female screw
Secondary
pressure gauge
Primary
pressure gauge
Secondary
safety valve
Primary
safety valve
Approx. 82
Approx. 59
Approx. 163 Approx. 174
2.4.8 Case Assembly (E7044KF) for Calibration gas
Cylinder
This case is used to store the zero gas cylinders.
l Standard Specications
Installation: 2B pipe mounting
Material: SPCC (Cold rolled steel sheet)
Case Paint: Baked epoxy resin, Jade green (Munsell 7.5 BG 4/1.5)
Weight: Approx. 10 kg with gas cylinder
(Note) Export of such high pressure lled gas cylinders to most countries is prohibited or restricted.
