SECTION 3 - OPTIVIEW™ CONTROL CENTER FUNCTIONS AND NAVIGATION

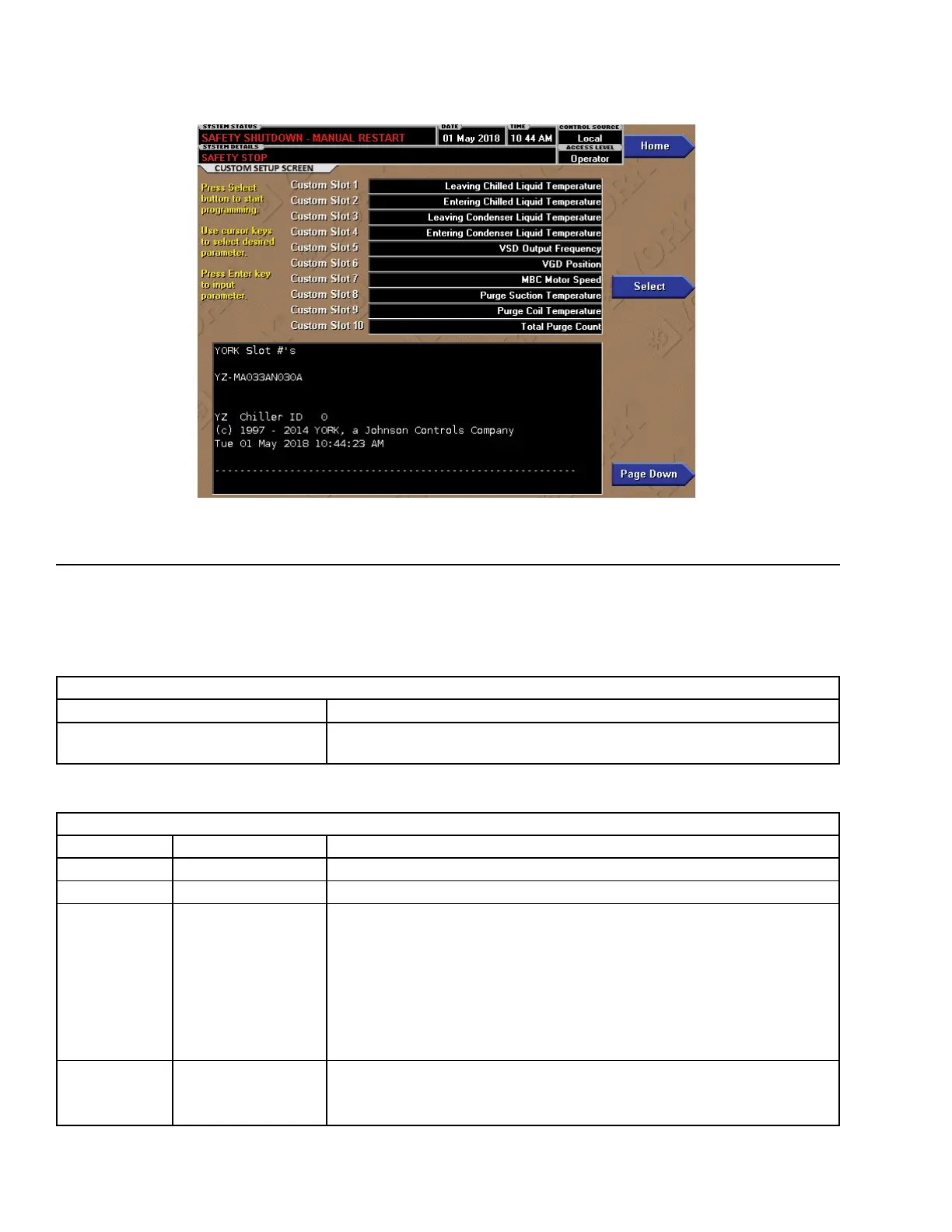

FIGURE 33 - CUSTOM SETUP SCREEN
LD26754
This screen allows the Service technician to select up to
10 parameters for display on the Custom View Screen.
DISPLAY ONLY FIELDS
DISPLAY ONLY FIELDS
FIELD/LED NAME DESCRIPTION
Slot Numbers
Lists the available parameters that can be displayed. The desired parameters for
display are selected from this list.
PROGRAMMABLE
PROGRAMMABLE
BUTTON ACCESS LEVEL DESCRIPTION
Page Up Operator Scroll up through list of available parameters.
Page Down Operator Scroll down through list of available parameters.
Select Operator
First use the Page Up and Page Down keys to scroll through the Slot Numbers
list and note the number of the parameter(s) to be displayed. Pressing the Select
key places a green colored selection box around Custom Slot 1. If it is desired to
change an already entered parameter, use the 5 and 6 keys to place the selec-
tion box around the slot number to be changed. With the selection box around
the slot number to be changed or entered, press the ENTER () key. A dialog
box is displayed permitting data entry. Using the numeric keypad keys, enter the
desired slot number and press the ENTER () key.
Custom Slot
(1-10)
Operator
Use the Select key and numeric keypad keys as described above and enter
the slot number from Slot Numbers list. Setting the Slot number to zero
clears the display of this slot number.
