SECTION 3 - OPTIVIEW™ CONTROL CENTER FUNCTIONS AND NAVIGATION

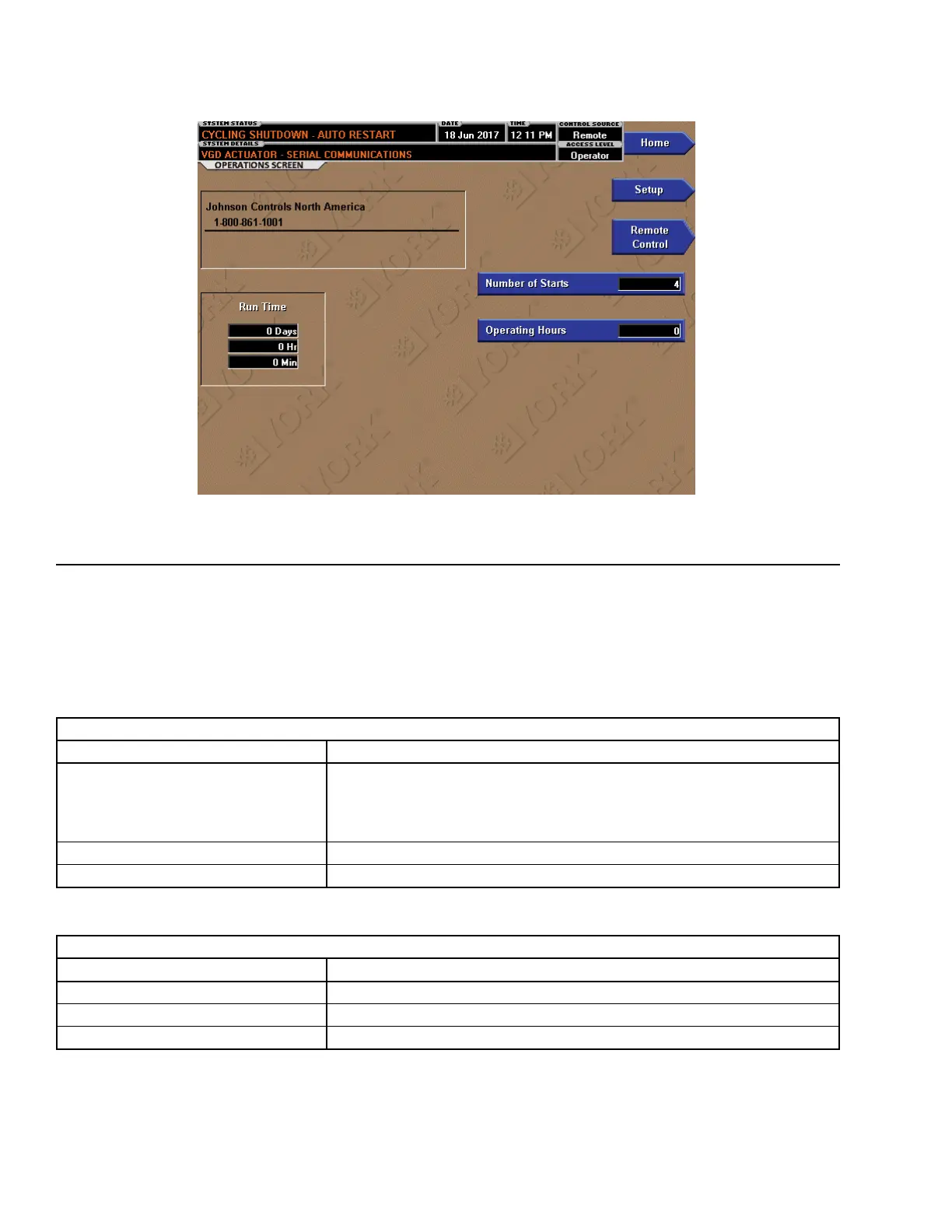

FIGURE 28 - OPERATIONS SCREEN
LD26749
This screen allows definition of general parameters
having to do with the operation of the chiller. This
screen also display the Johnson Control Service tele-
phone number.
DISPLAY ONLY FIELDS
DISPLAY ONLY FIELDS
FIELD/LED NAME DESCRIPTION
Run Time Displays the amount of time the chiller has been running since the last start
signal was received. Value is reset to zero when the chiller enters Coastdown.
It remains at zero while shutdown and during “MBC Startup”. Displays in Days,
Hours and Minutes.
Number of Starts Displays the total number of the starts the chiller has initiated.
Operating Hours Displays the total accumulated run time of the chiller.
NAVIGATION
NAVIGATION
BUTTON DESCRIPTION
Home Causes an instant return to the Home Screen.
Setup Return to the previous Setup Screen.
Remote Control Navigates to the Remote Control Screen.
