Zebra TC20 Series User Manual

Data Capture
100
3. Point the RS507/RS507X at a barcode.

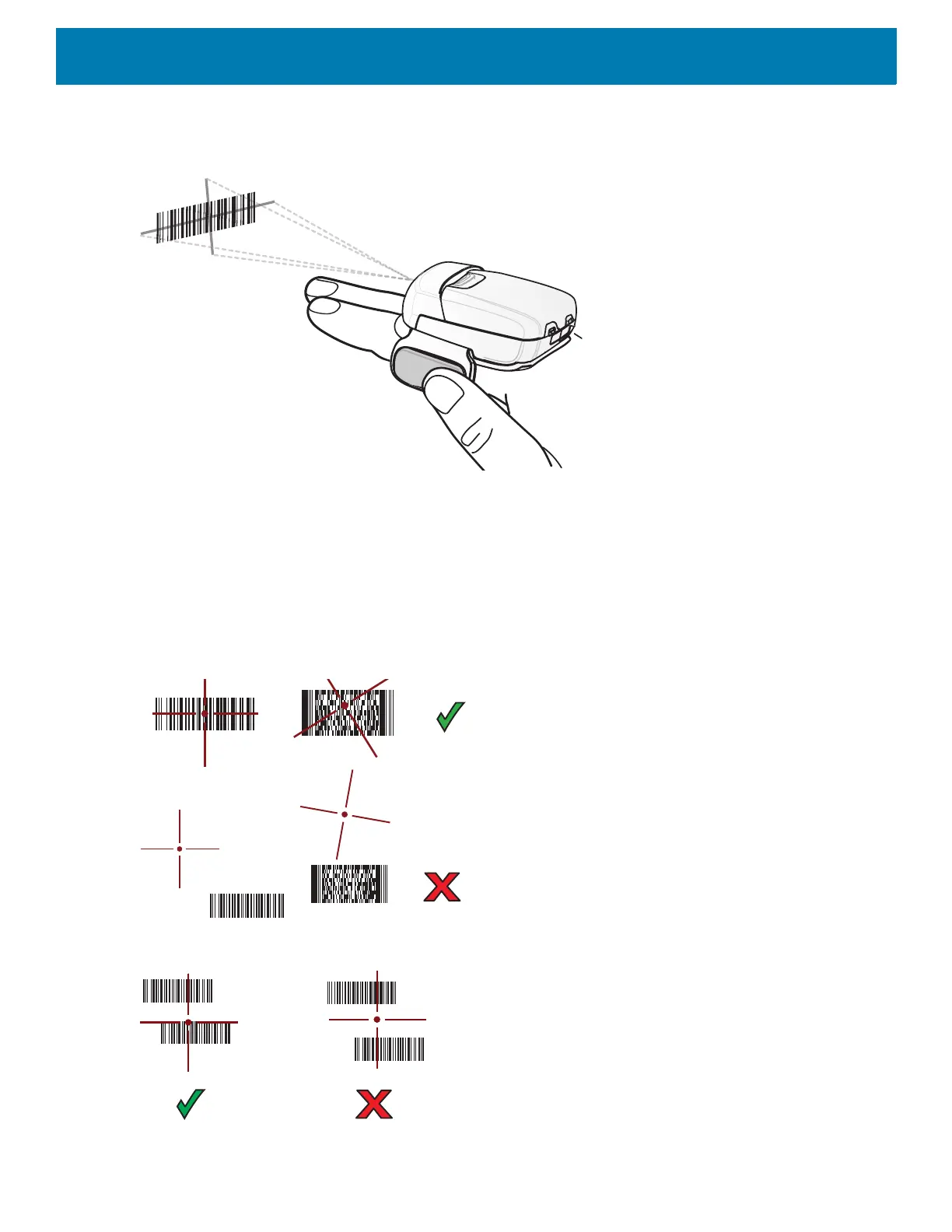

Figure 77 Barcode Scanning with RS507/RS507X
4. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by
the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.
The RS507/RS507X LEDs light green and a beep sounds to indicate the barcode was decoded
successfully. When the RS507/RS507X is in Pick List mode, the RS507/RS507X does not decode the
barcode until the center of the crosshair touches the barcode.
Figure 78 RS507/RS507X Aiming Pattern
Figure 79 RS507/RS507X Pick List Mode with Multiple Barcodes in Aiming Pattern

Zebra TC20 Series Specifications

General

RAM	2 GB
Operating Temperature	-10°C to 50°C
Display	4.3 in. WVGA (480 x 800)
Storage	16 GB
Camera	8 MP rear camera
Battery	3000 mAh
Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2, NFC
Dimensions	134 mm x 73.1 mm x 16 mm
Weight	195 g
Expansion Slot	MicroSD up to 128 GB
Scanning	1D/2D imager
Drop Specification	1.2 m (4 ft) to concrete
