Zebra TC20 Series User Manual

105
1. Swipe down from the Status bar to open the Quick Access panel.

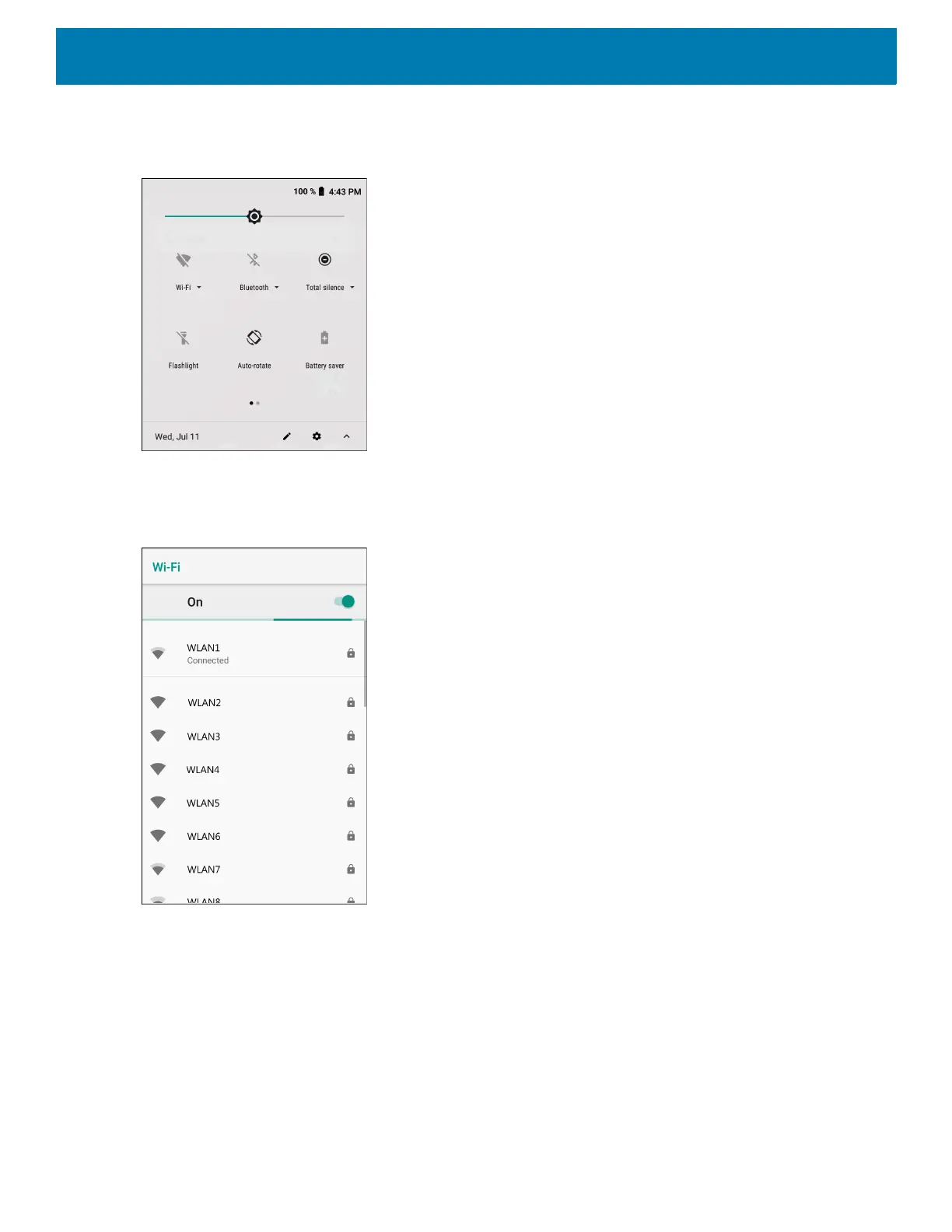

Figure 83 Quick Access Panel
2. Touch Wi-Fi to open the Wi-Fi screen. The device searches for WLANs in the area and lists them.
Figure 84 Wi-Fi Screen
-
3. Scroll through the list and select the desired WLAN network.
4. For open networks, touch profile once or press and hold and then select Connect to network or for secure
networks enter the required password or other credentials then touch Connect. See the system
administrator for more information.
The device obtains a network address and other required information from the network using the dynamic
host configuration protocol (DHCP) protocol. To configure the device with a fixed internet protocol (IP)
address, Refer to the device Integrator Guide for more information.
5. In the Wi-Fi setting field, Connected appears indicating that the device is connected to the WLAN.

Zebra TC20 Series Specifications

General

RAM	2 GB
Operating Temperature	-10°C to 50°C
Display	4.3 in. WVGA (480 x 800)
Storage	16 GB
Camera	8 MP rear camera
Battery	3000 mAh
Connectivity	Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2, NFC
Dimensions	134 mm x 73.1 mm x 16 mm
Weight	195 g
Expansion Slot	MicroSD up to 128 GB
Scanning	1D/2D imager
Drop Specification	1.2 m (4 ft) to concrete
