Troubleshooting
Printer Diagnostics
6/6/08 Z Series
®
/RZ™ Series User Guide 79695L-002 Rev. A
4. See Figure 22 and Table 23. Inspect the test labels and determine which one has the best
print quality for your application. If you have a bar code verifier, use it to measure
bars/spaces and calculate the print contrast. If you do not have a bar code verifier, use your
eyes or the system scanner to choose the optimal darkness setting based on the labels
printed in this self test.

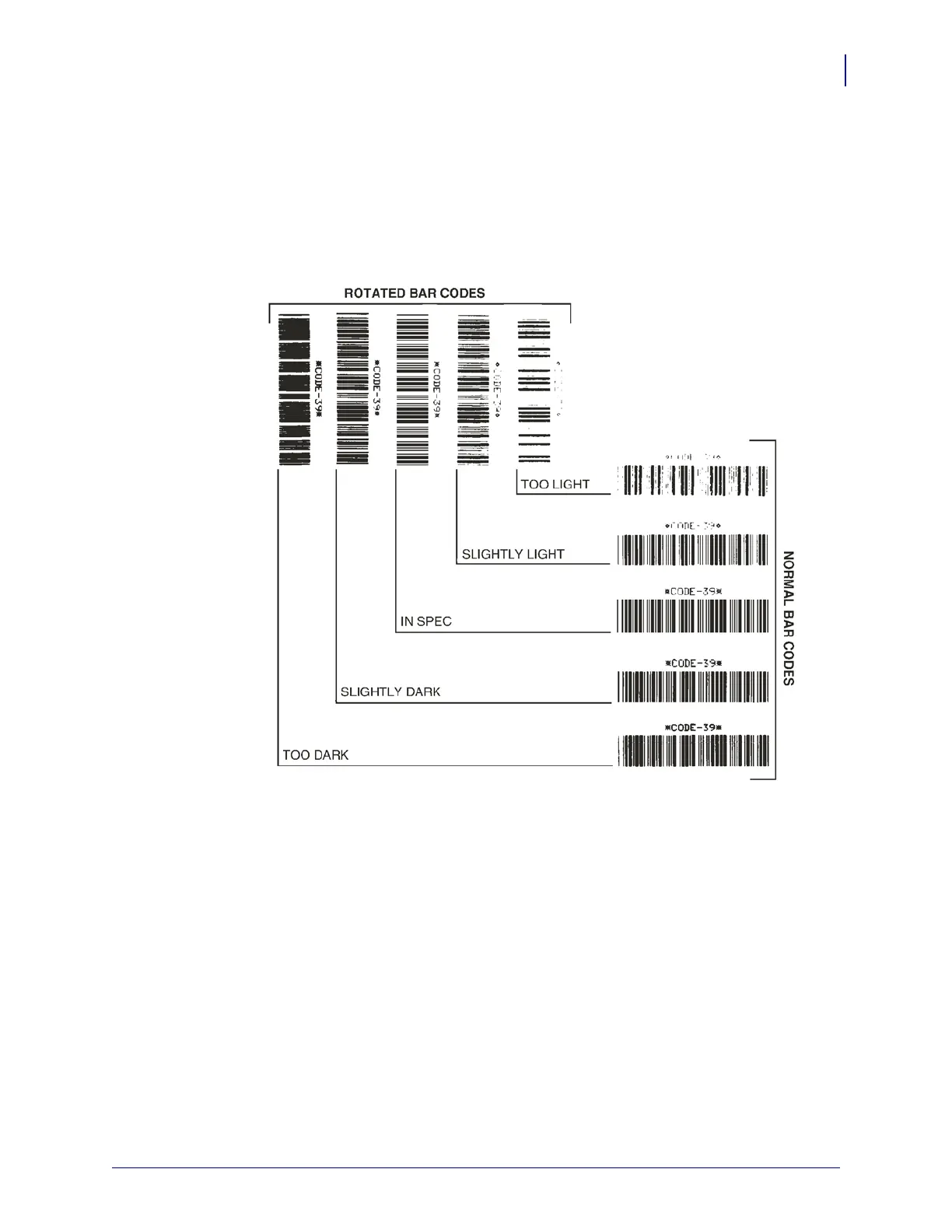

Figure 22 • Bar Code Darkness Comparison

Zebra Z Series Specifications

General

Print Method	Thermal Transfer or Direct Thermal
Max Print Width	4.09 in./104 mm (depending on model)
Max Print Length	39 in./991 mm (with 203 dpi)
Connectivity	USB, Serial (depending on model)
Supported Media Types	Wristbands
Media Width	1.0 inch (25.4 mm)
Operating Temperature	40°F to 104°F (5°C to 40°C)
Storage Temperature	-40° F/-40° C to 140° F/60° C
Resolution	203 dpi or 300 dpi (depending on model)
