Zeiss Axio Observer 5 - Fuse Replacement Procedures

CARE, MAINTENANCE, TROUBLESHOOTING AND SERVICE
Axio Observer Maintenance ZEISS
12/2016 431004-7244-001 177
6.2.2 Changing the fuses in the
Axio Observer 3, 3 materials, and
5, 5 materials stands
Pull out the power plug before changing
fuses.
The power fuses for the input voltage are located
in the back of the stand of the Axio Observer
3 materials and 5 materials. The fuse compartment
is integrated into the power socket and contains
two T 5.0 A/H 250 V 5 x 20 mm fuses. If the device
fuses fail the cause must first of all be ascertained
and technical problems properly remedied.
• Pull out the power plug.
• Pull out the fuse holder (Fig. 164/2) frontward.
• Remove the fuses from the fuse holder and
insert new fuses.
• Reinsert the fuse holder into the fuse
compartment (Fig. 164/1) until it clicks into
place.
• Plug in the power plug.

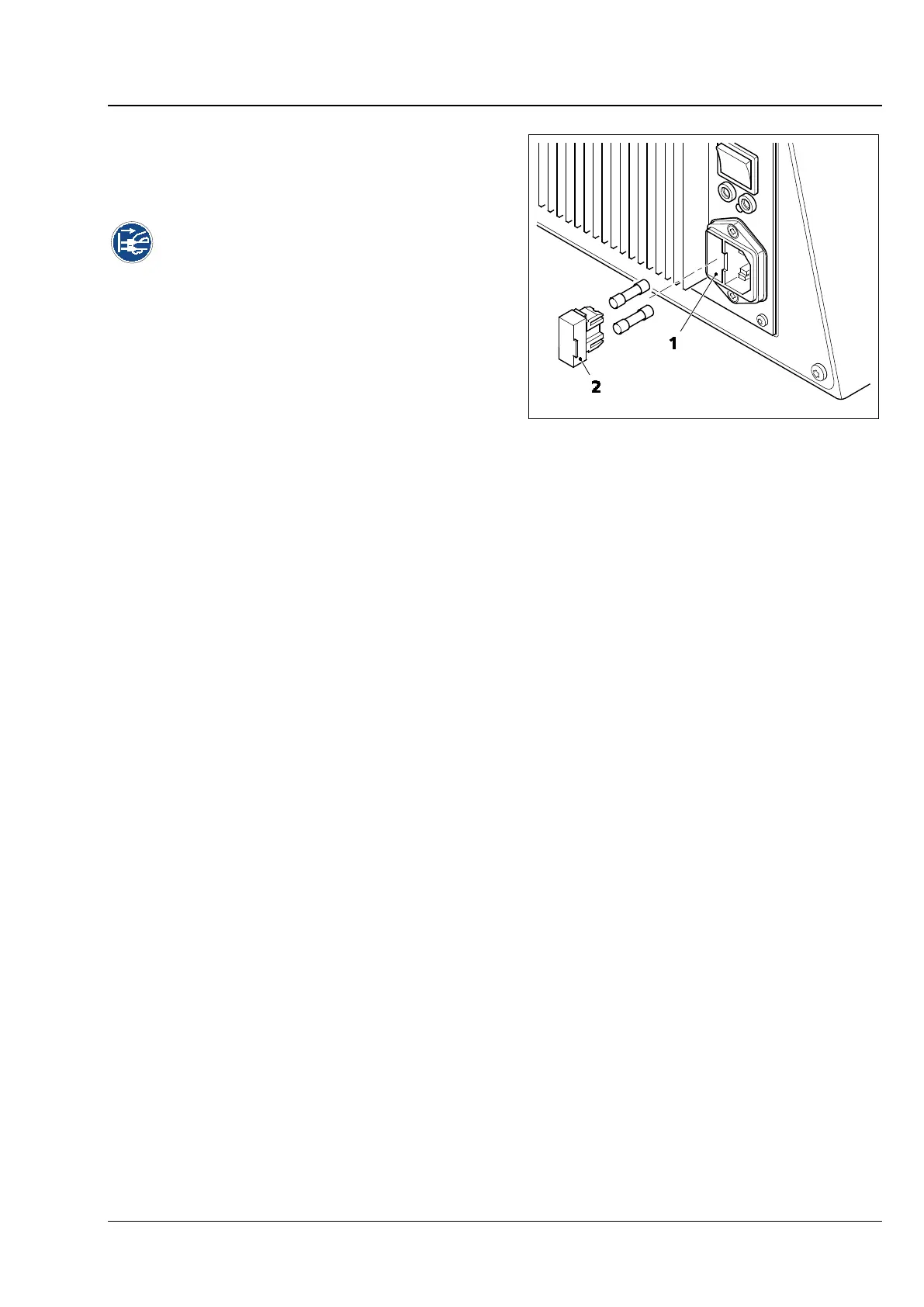

Fig. 164 Changing the fuses in the Axio
Observer 3, 3 materials and 5,
5 materials
