OPERATION
Axio Observer TFT display touchscreen on the Axio Observer 7, 7 materials ZEISS
12/2016 431004-7244-001 143
5.11.9.4 Settings -> Info
The Settings -> Info page only contains the
Firmware tab.
The Firmware tab shows the firmware version.
5.11.10 Display
Press Display on the navigation bar of the Home
page to call up the Display page.
On the Display page, the user can adapt the TFT
display brightness using the ◄► buttons.
Press and hold Display on the navigation bar for
at least one second to dim the TFT display.
Touching anywhere on the TFT display again
switches the display back on.
Pressing the Display off button switches the TFT
display off. Press it again to switch the TFT display
back on.
After the TFT display is switched off, it returns from the Display page to the page from which it
was activated. This page will be displayed when the display is switched back on.

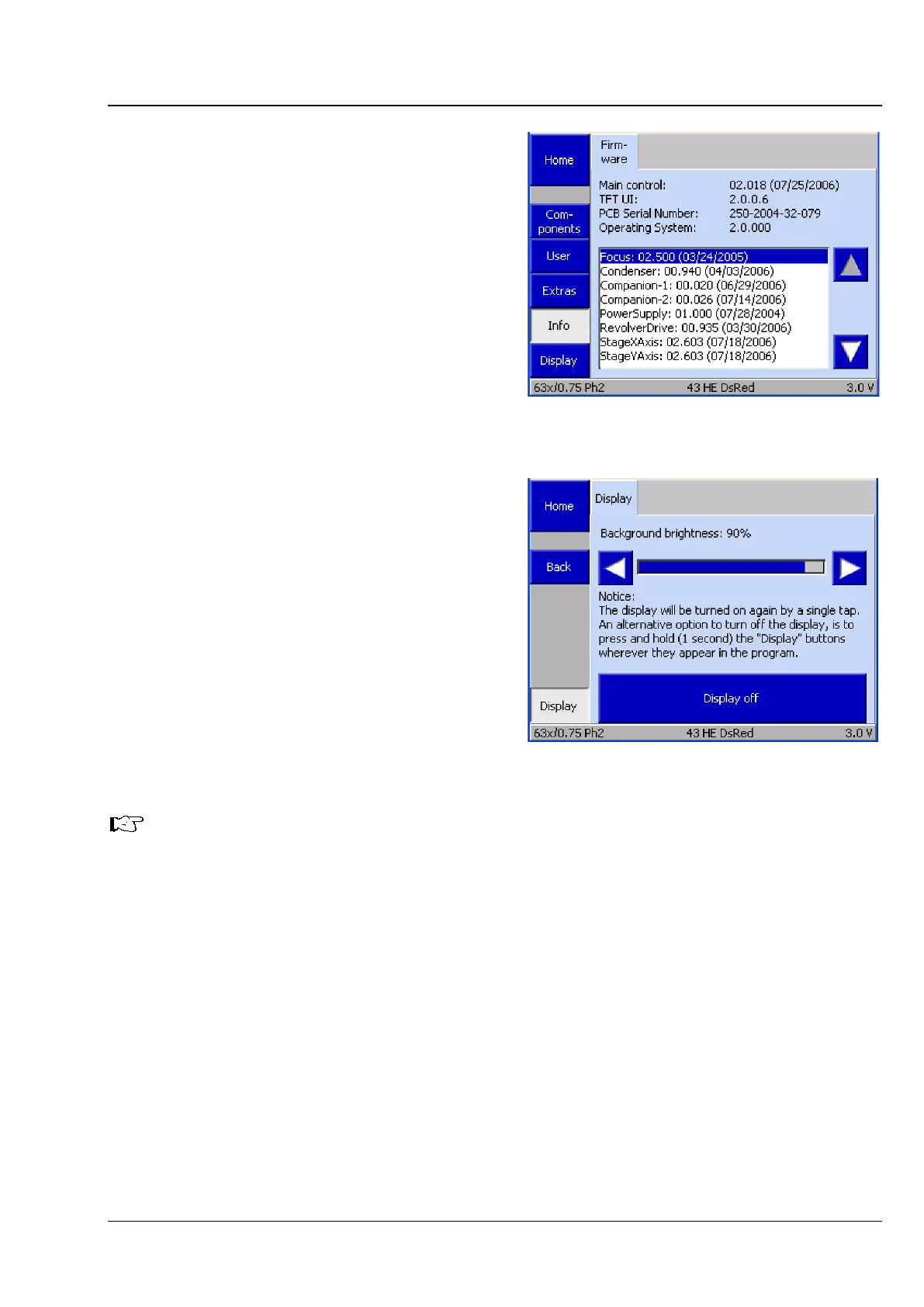

Fig. 146 Settings -> Info -> Firmware page
Fig. 147 Display page
