Zeiss Axio Observer 5 - Connectors on the Rear of the Axio Observer 7, 7 Materials

INSTALLATION INSTRUCTIONS AND FIRST-TIME SET-UP
Axio Observer Connectors on the rear of the Axio Observer 7, 7 materials ZEISS
12/2016 431004-7244-001 61
4.16 Connectors on the rear of the
Axio Observer 7, 7 materials
Key to Fig. 45:
1 Connector for closed-loop sensor Z drive
(Axio Observer 7 only))
2 Socket for power supply unit VP232-2
3 Connecting socket for transmitted light LED / halogen
illuminator
4 CAN connecting sockets
5 not used
6 RS-232 port
7 Connector for transmitted light shutter
8 TCP/IP port
9 USB port
10 External high speed shutter connector
11 CAN connecting socket
12 Trigger socket (IN/OUT) for shutter

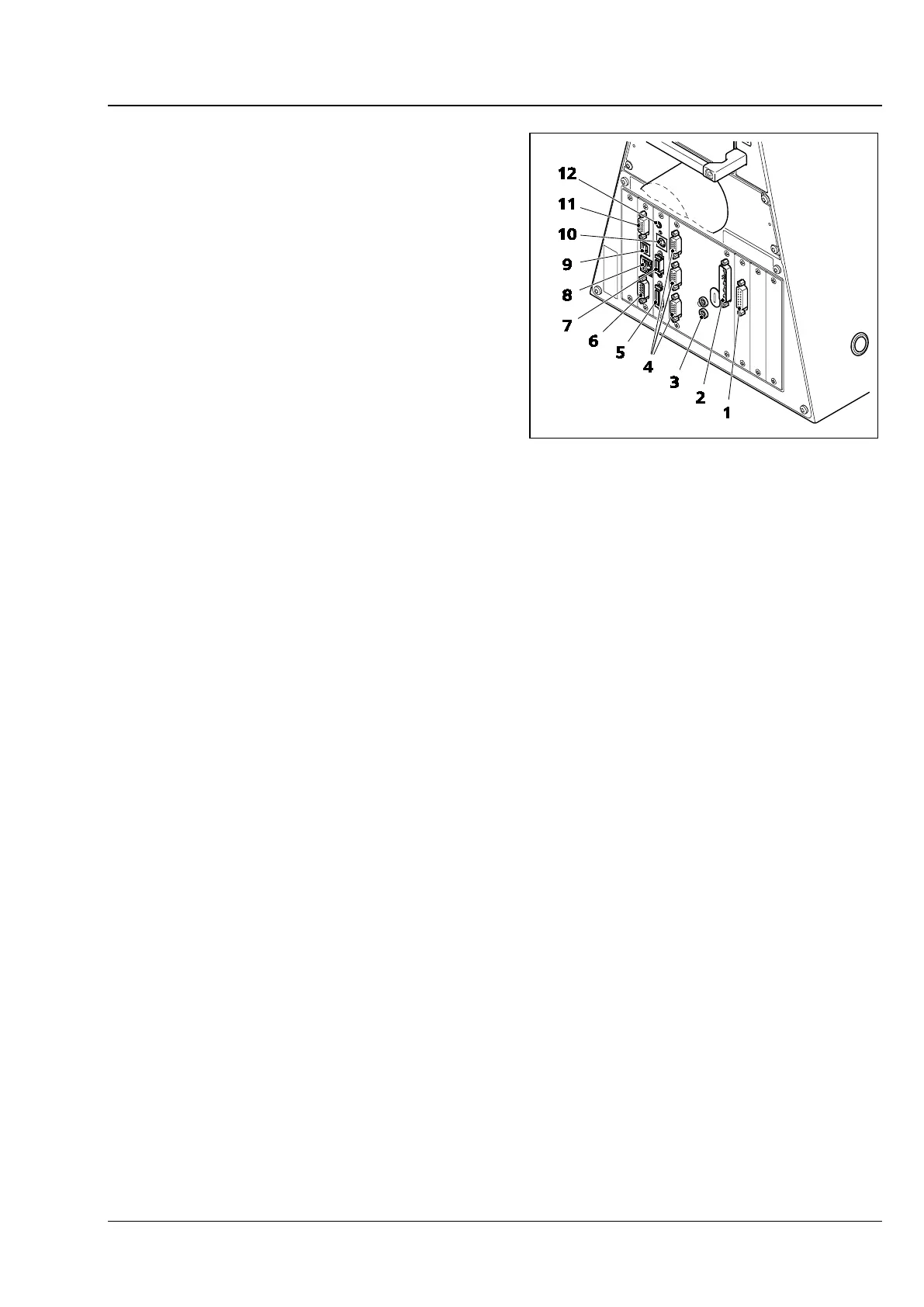

Fig. 45 Axio Observer 7, 7 materials (rear)
