Display of revolutions of the PTO shaft
To achieve that the revolutions correspond to real revolutions of the rear PTO shaft,
corresponding revolutions of the rear PTO shaft must be set in the menu of the instrument panel (see
chapter Instrument Panel).
Rear output shaft - shifting of dependent and independent speed of the shaft
Rear output shaft - shifting of speed of the output shaft 540 and 1,000 or 540E rpm

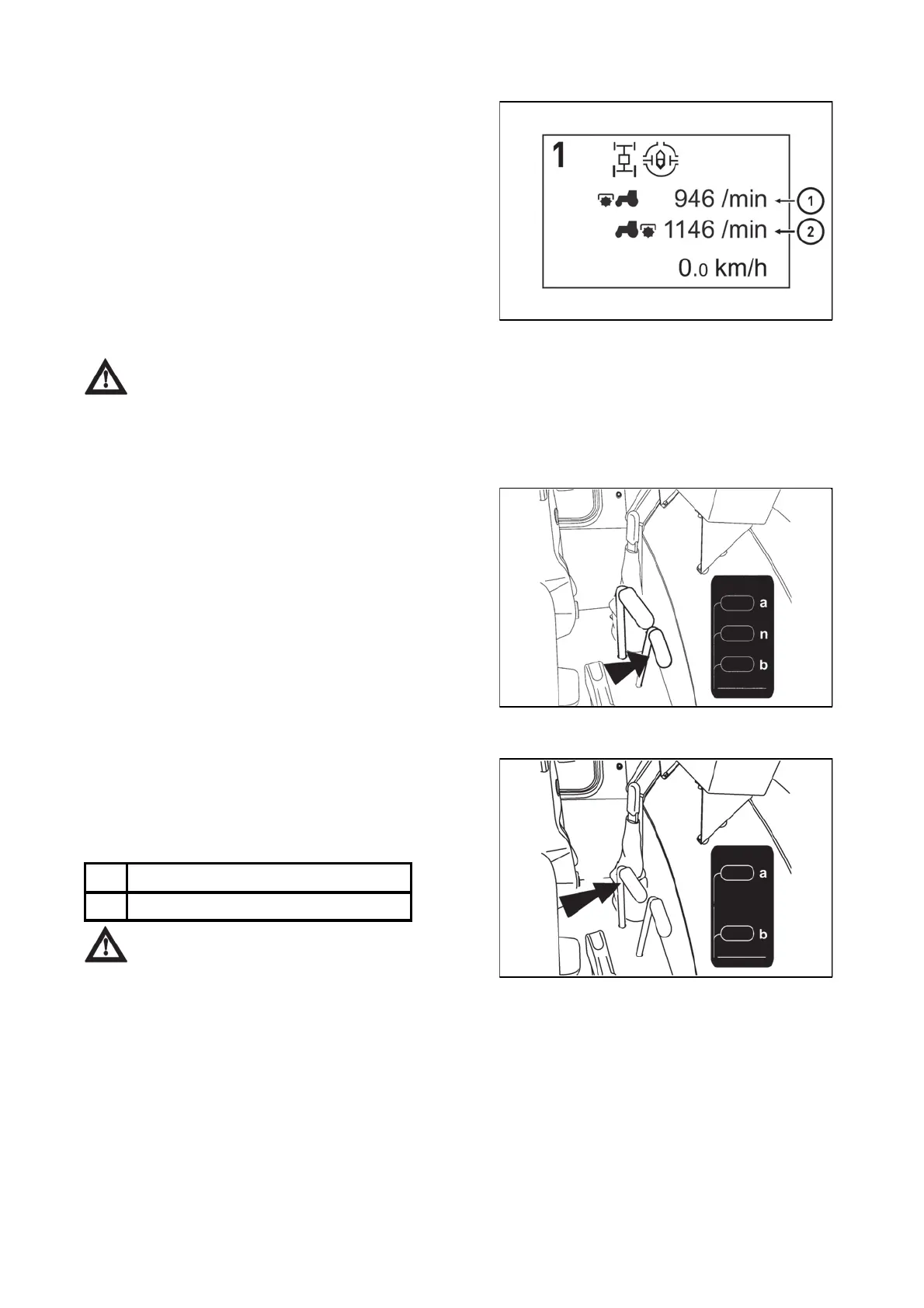

When the switches are activated, number of revolutions of
PTO shafts is displayed on the corresponding main screen
of the instrument panel display.
1 - number of revolutions of the front PTO shaft
2 - number of revolutions of the rear PTO shaft at
independent engine speed
Engine speed of the dependent rear PTO shaft are not
displayed, they are presented in tables. The tractor speed
in km/h in chapter Main technical parameters.
PP15N021
Shifting is performed by the lever (1) when the tractor is in
standstill.
a - Independent speed of the output shaft (rpm of the
shaft depends on rpm of the engine)
n - Neutral position. Use this position to facilitate
connection of the farming mechanism propeller shaft.
The terminal of the rear out
ut shaft is freel
rotable
b - Dependent speed of the output shaft (rpm and
direction of rotation depends on the engaged gear and
position of reversin
lever
G154
Shifting is performed by the lever (1) when the tractor is in
standstill.
The tractor is equipped standardly with a combination of
540 and 1,000 rpm of the output shaft; other optional
combination is 540 and 540E rpm of the output shaft.
Shifting of 540 and 1,000 (or 540E) min
-1
is
ossible re
ardless to the number of splines of the
installed terminal. Speed of the output shaft and type
of terminal shall be chosen depending on the
rescribed rpm of the coupled mechanism
a -
1,000 min
-1
or 540E min
-1
b -
540 min
-1
G153
PTO DRIVE OF AGRICULTURAL MACHINES
