The hydraulic system is intended for lifting and lowering of agricultural machines and implements attached in
the rear three point hitch.

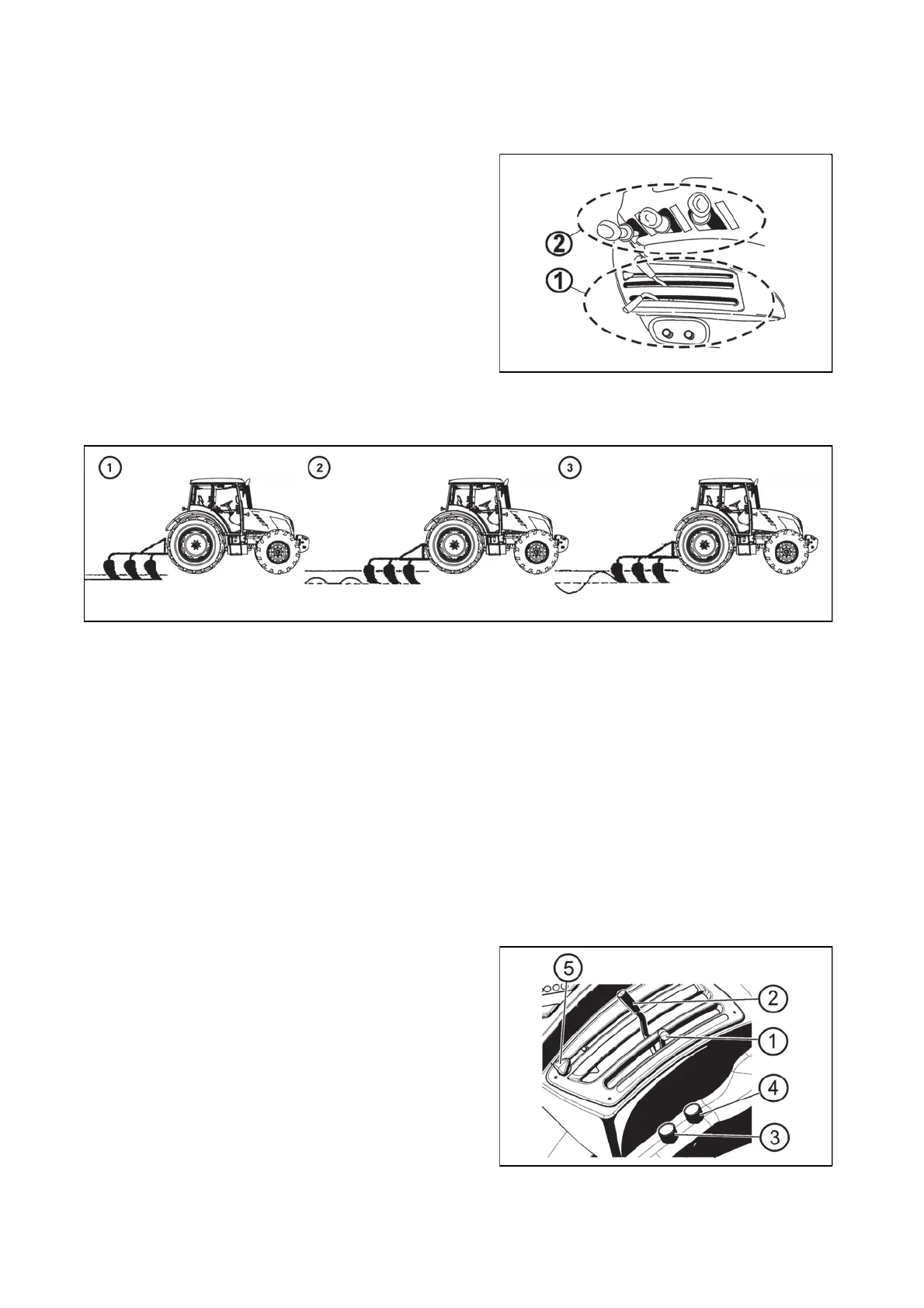

Hydraulics control panel
Ways to regulate inner hydraulic circuit
P+11N002
Hydraulic system allows of three ways to regulate the lifting of the rear three-point hitch:
Position regulation (img. 1) - the tool connected to the rear three-point hitch is automatically kept in the same
height (position) with regard to the tractor.
Mixed regulation (img. 2) - a combination of position and power regulation. Suitable mainly for tilling areas of
different soil resistance.
Power regulation (img. 3) - the tool connected to the three-point hitch is automatically being adjusted
depending on changing soil resistance.
All the regulations can also be used when working with a tool equipped with a support wheel in so-called free
(floating) position.
Controlling the inner hydraulic circuit
Hydraulics control panel is located in the area of the right
wing
Controlling the rear three-point hitch is enabled by the
inner hydraulic circuit (1).
Controlling outer hydraulic circuits (couplers) is enabled b
outer hydraulic circuit (2).
P+11N001
1. position or power regulation lever
2. lever for selecting floating position, adjusting the
height of the three-point hitch in position regulation
or mixed regulation.
3. three-point hitch lowering speed control
4. hydraulic system sensitivity control
5. adjustable stop
P+11N003
