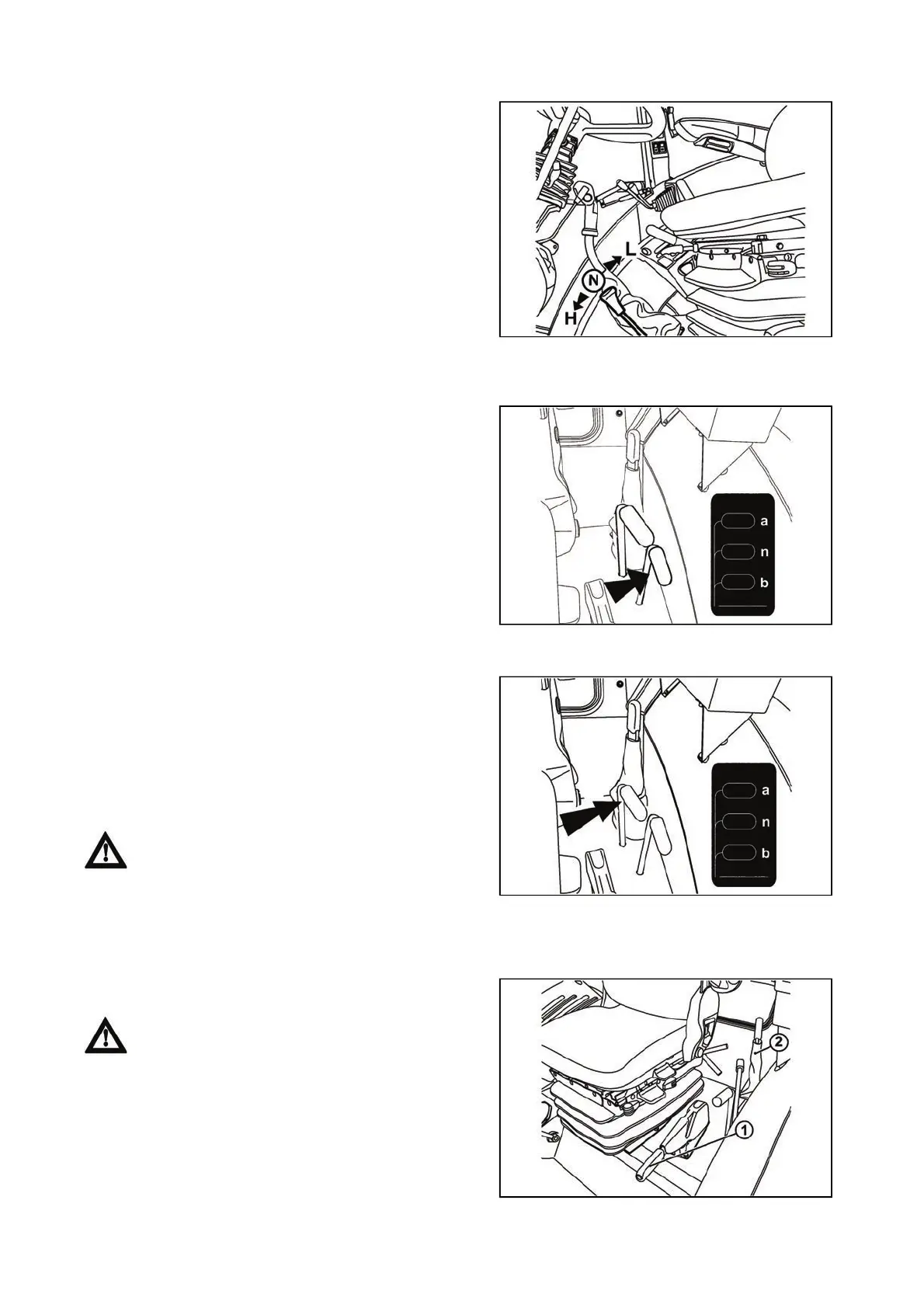

Road and reduced speeds shifting leve
PTO selection control lever
Lever of shifting of speed 540 (or 540E) and 1,000 rpm of the rear output shaft
Lever of hand brake and hitch for single-axle trailer
Shifting is carried out with tractor in standstill.
H Road
ears
N Neutral
L Reduced
ears
G150
Shifting is made when the tractor stops.
a - Independent speed of PTO shaft - PTO shaft speed de-
pends upon the en
ine speed
n - Neutral
b - Ground speed of PTO shaft (through gearbox) - PTO
shaft speed depends upon the en
a
ed
ear speed
G154
Shifting can be carried out when the tractor is in standstill
by pulling up or pushing down the lever.
* The tractor can be equipped optionally by 6-, 8- or 21-
groove termination of the output shaft.
Shifting of 540 and 1,000 (or 540E) min
-1
is
ossible re
ardless to the number of
rooves on the
installed termination. Speed of the output shaft and
type of the termination shall be chosen depending on
the prescribed speed of the aggregated machine.
a -
1,000 min
-1
or 540E min
-1
b -
540 min
-1
G153a
1. Hand brake lever.
2. Lever of the single-axle trailer hitch control.
When stopping or leaving the tractor you must
always secure the tractor with the parking brake.
The engagement of a gear does not prevent the
tractor from getting in motion (the clutch is
disengaged)!
If the tractor is standing on a slope, its wheel must be
additionally secured with wedges!
E155
ACQUAINTANCE WITH TRACTOR
