Pedals and levers

Reversing lever

Gear shifting lever

Gear shifting scheme

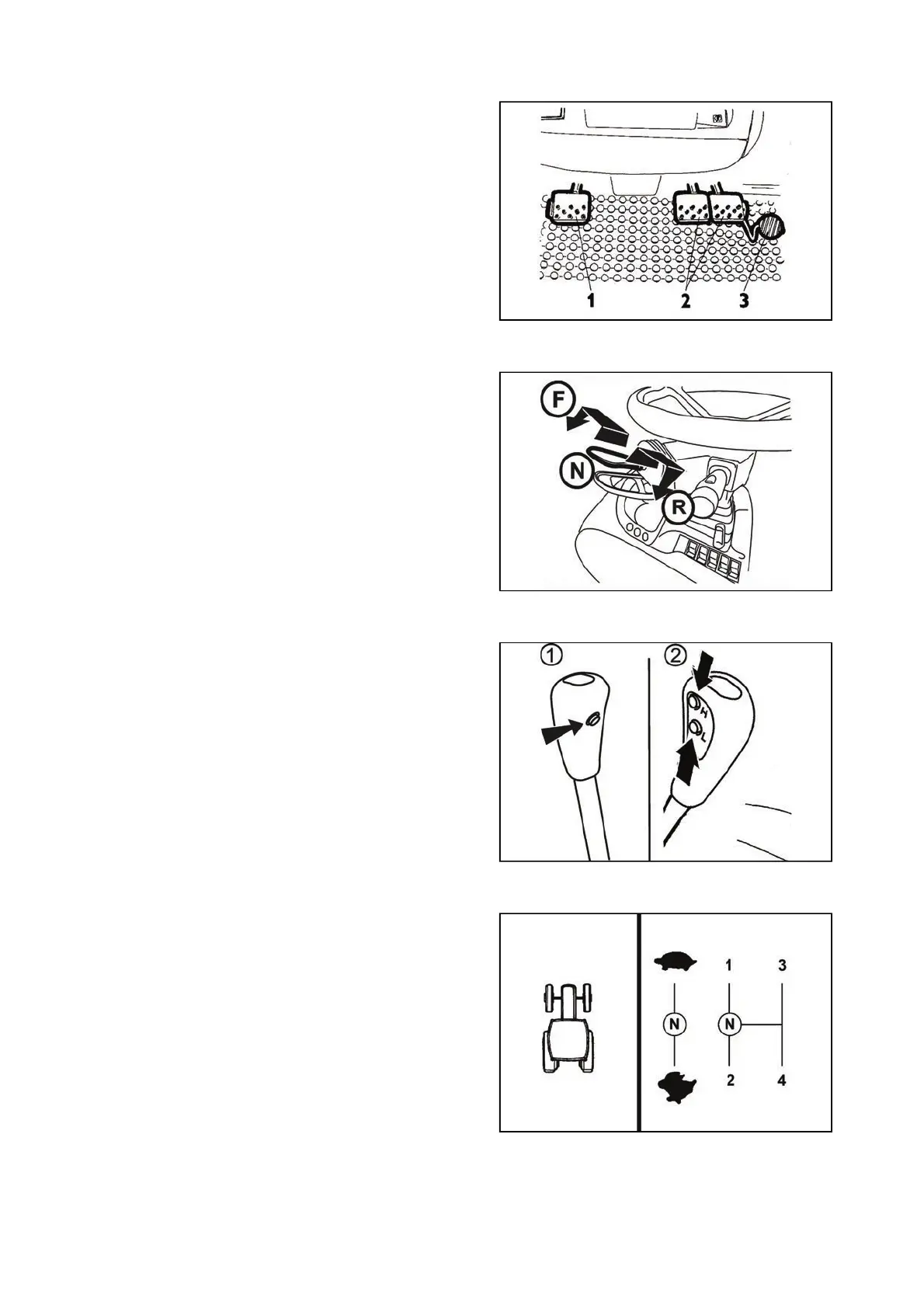

1. Travel clutch pedal

2. Foot operated service brake pedals connected by latch

3. Foot throttle pedal

P15N027

F - front driving; lever in the front

N - neutral

R - back driving; lever at the back

X212a

- main gear shifting lever

1. button for disengaging clutch on the head of gear

shifting

2. buttons of shifting individual gears of multiplier

FH12N037

Reverse can be shifted only using the reversing lever. The

scheme is attached in the left lower corner of the

windscreen.

E148a
