Gear shifting
Reversing lever
Reversing lever position signalization

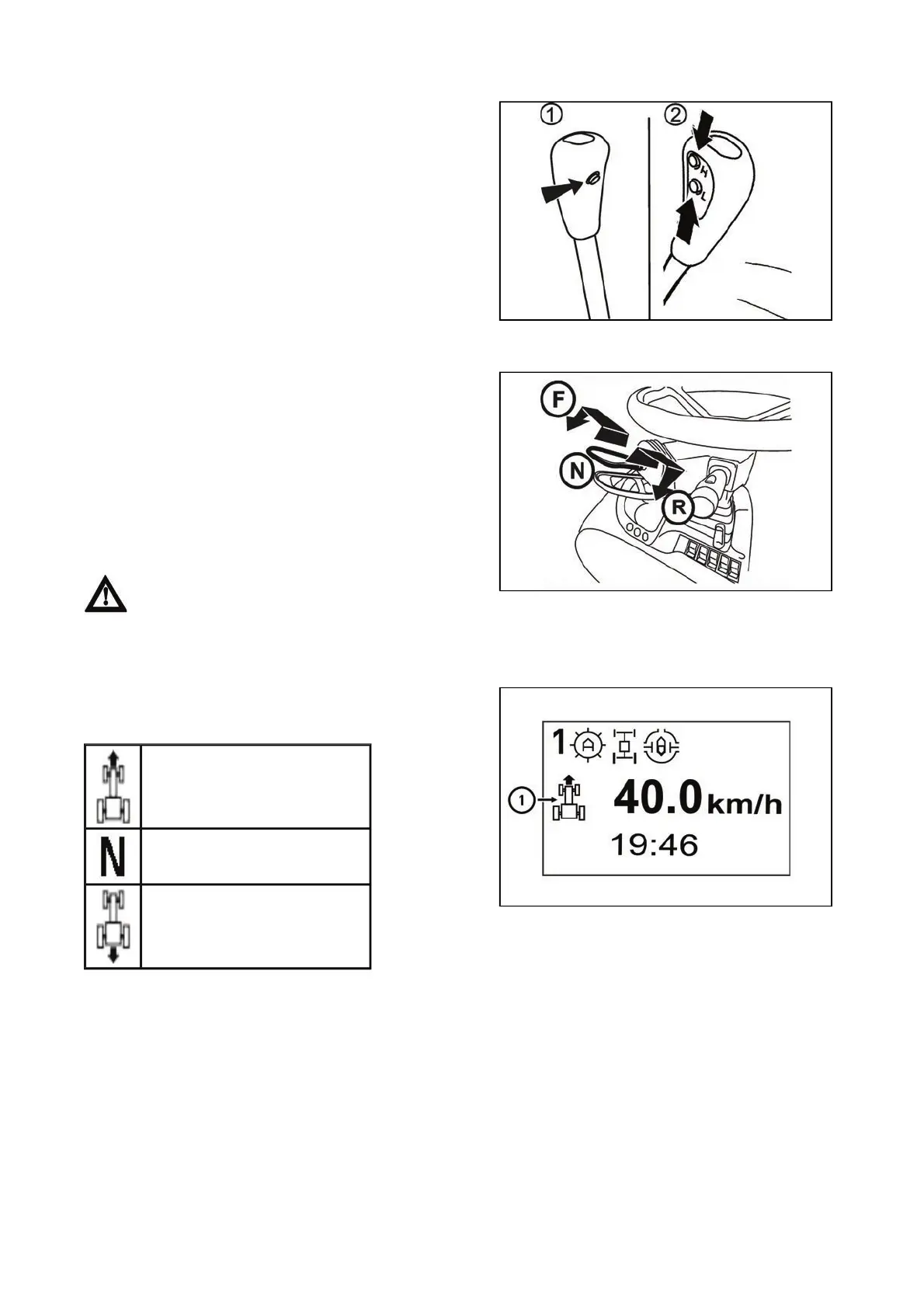

The tractors are equipped with a four-speed synchronized
gearbox with two-speed reduction, a three-stage torque
multiplier and reversing.
The four-speed gearbox is controlled with the shifting leve
with buttons for controlling the torque multiplier (2) and
a red button for disengaging travelling clutches (1). The
forward and reverse motion of the tractor is selected with
the reversing lever located on the steering column.
FH12N037
The reversing lever is used to select the driving direction
of the tractor (forward, reverse).
F - Forward drive (24 speeds)
N - Neutral position
R - Reverse drive (24 speeds)
The reversing gearbox offers 24 reverse speeds that are
approximately as fast as the forward speeds. Therefore,
consider well and select a suitable reverse speed for the
particular character of work.
When the lever is shifted from the neutral
osition without the clutch pedal bein
depressed, the
tractor will start moving (clutch engagement).
X212a
The individual positions of reversing lever are signalized
by a sign (1) on the display.
driving forward
Neutral
driving backward
PW15N031
